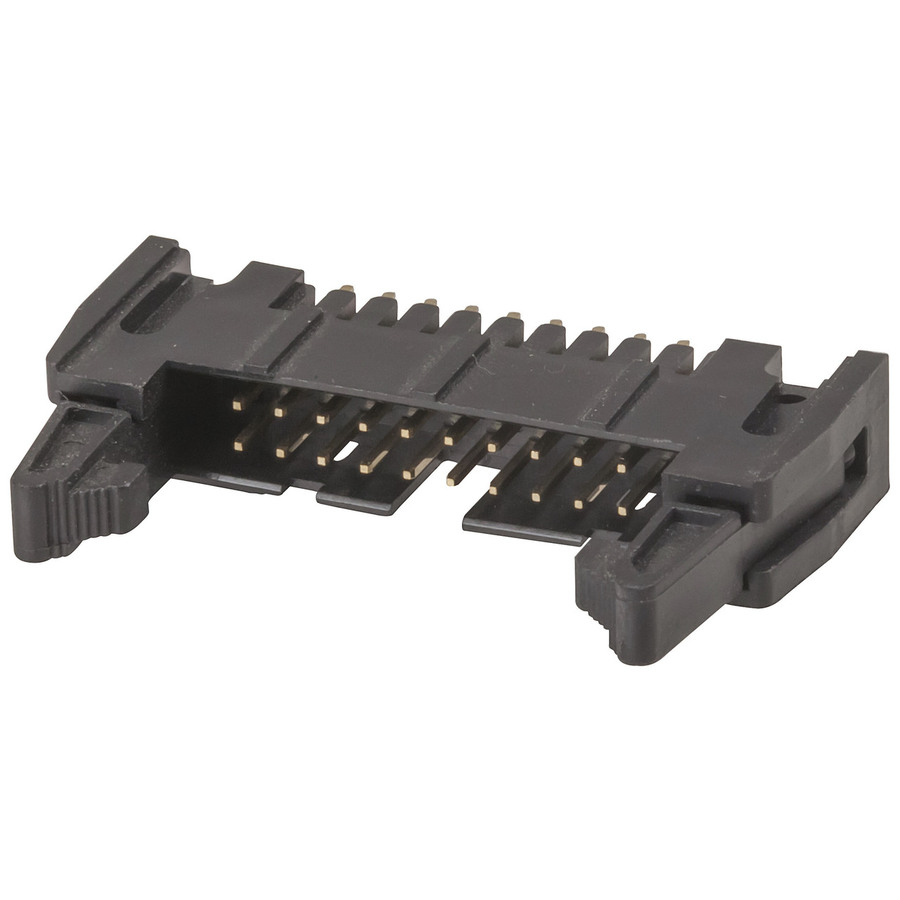

20 Pin IDC Locking Vertical Header
20 Pin IDC Locking Vertical Header

CAT. No. PP1140

20 Pin IDC Locking Vertical Header
product image thumb

20 Pin IDC Locking Vertical Header

$1.75
From our range of power, audio, data and telecommunication adapters and terminating connectors.

Out of Stock

Description

Vertical facing 20 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.

Dimentions (mm)  PINS    A     B     C    D

         PP-1140       20     45    23  34.5 31


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 20pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 IDC
    header locking

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 4.5cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.00121l
    Packaged Height
    		 0.09cm

    Product Availability

    Availability
    		 Stocked item
