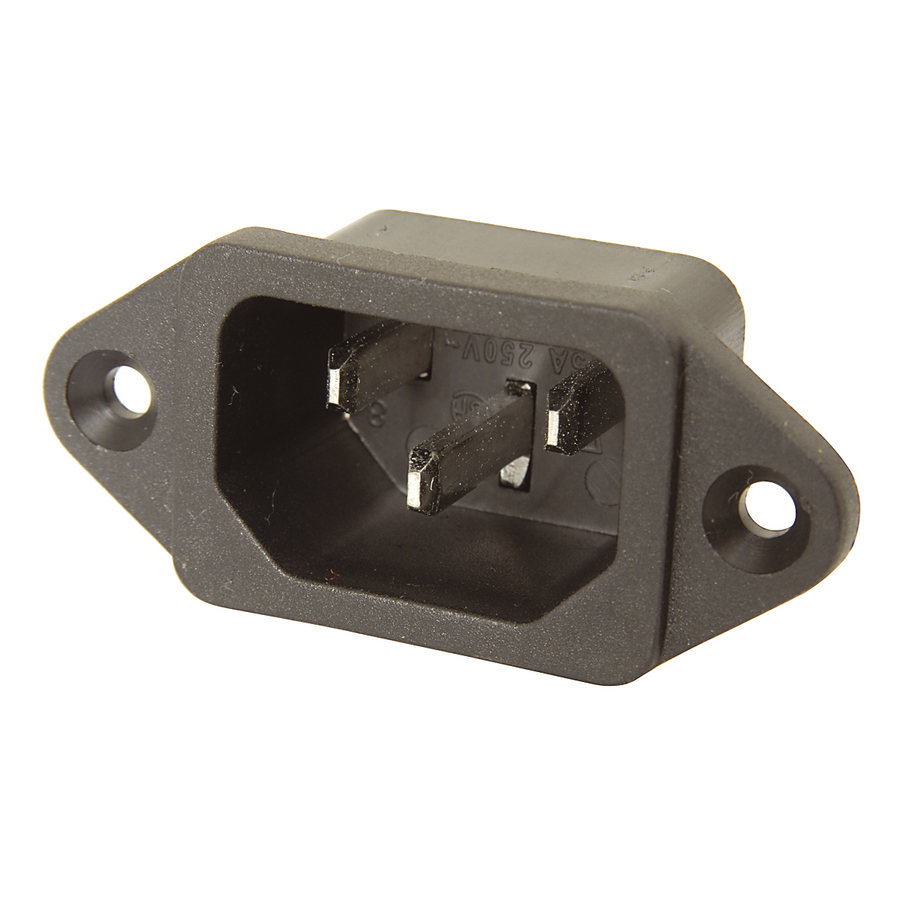

IEC320 Male Chassis Power Plug
IEC320 Male Chassis Power Plug
IEC320 Male Chassis Power Plug

CAT. No. PP4005

IEC320 Male Chassis Power Plug
product image thumb
product image thumb

IEC320 Male Chassis Power Plug

$10.5

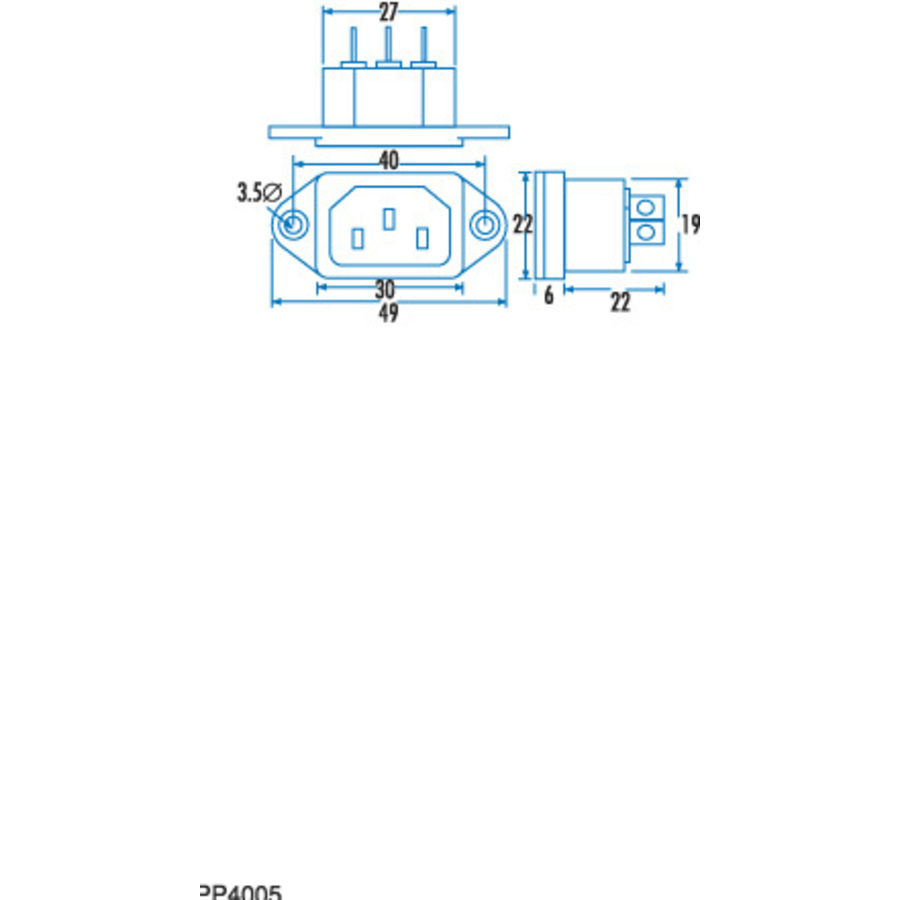

240V male.- Size 49(W) x 22(H)- mounting holes 40mm apart...
Available

Description

Panel mount IEC320 socket for 240V mains applications



    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Contact Material
    		 Metal
    Plug or Socket Type
    		 Standard IEC320 (C13/C14)
    Attachment Method
    		 Spade Terminals
    Case Material
    		 Plastic

    Product Mounting

    Square Mount Hole Width
    		 28mm
    Attachment / Securing Method
    		 Screw Down
    Overall Screw Spacing (H)
    		 40mm
    Mounting Method
    		 Through Hole
    Square Mount Hole Height
    		 20mm

    Product Dimensions

    Height
    		 22mm
    Width
    		 50mm
    Depth
    		 28mm

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.035l
    Packaged Height
    		 2.8cm

    AC Voltage Rating

    AC Voltage rating
    		 240V

    AC Current Rating

    AC current rating
    		 10A

    Product Availability

    Availability
    		 Stocked item
