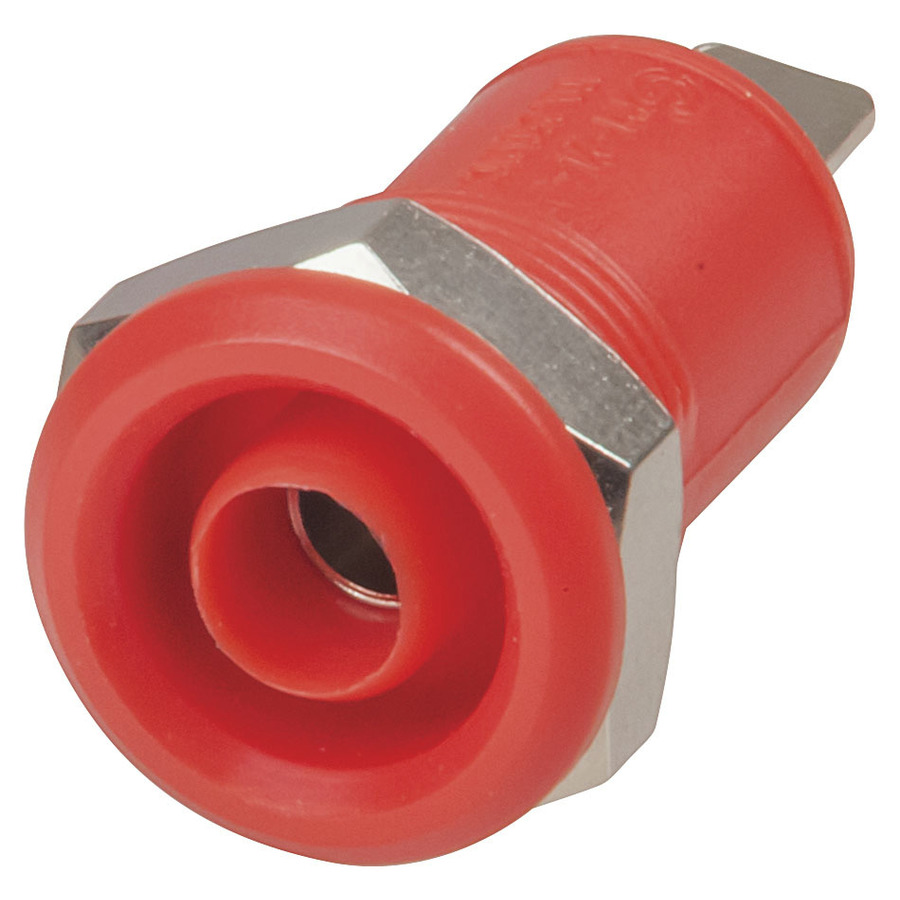

4mm Panel Mount Banana Socket - Red
4mm Panel Mount Banana Socket - Red

CAT. No. PS0420

4mm Panel Mount Banana Socket - Red
product image thumb

4mm Panel Mount Banana Socket - Red

$3.15
Designed to take the insulated banana plugs, these panel mount sockets only project 2mm above the mounting surface. Also fully insulated.Mounting hole...
Available

Description

Designed to take the insulated banana plugs, these panel mount sockets only project 2mm above the mounting surface. Also fully insulated.


PS-0420: Red
PS-0421: Black
PS-0422: Green
PS-0423: Blue
PS-0424: Yellow


    Specifications

    Plug or Socket

    Contacts / Pins
    		 1pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Contact Material
    		 Metal
    Plug or Socket Type
    		 Banana 4mm (standard)
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic
    Colour Coded
    		 Red

    Product Mounting

    Round Mount Hole Diameter
    		 12mm
    Mounting Method
    		 Panel

    Packaged Dimensions

    Packaged Length
    		 9cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.0864l
    Packaged Height
    		 1.2cm

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 10A

    Product Availability

    Availability
    		 Stocked item

    Downloads

    PS0420-dataSheetMain.pdf
