Waterproof 2.1mm DC Connector Set
Waterproof 2.1mm DC Connector Set

CAT. No. PS0785

Waterproof 2.1mm DC Connector Set
product image thumb

Waterproof 2.1mm DC Connector Set

$8.95
This is the same connector set fitted to our waterproof flexible LED strip lights, which features a standard 2.1(ID) x 5.5(OD)mm DC connection with an...
Available

Description

1 Year Warranty

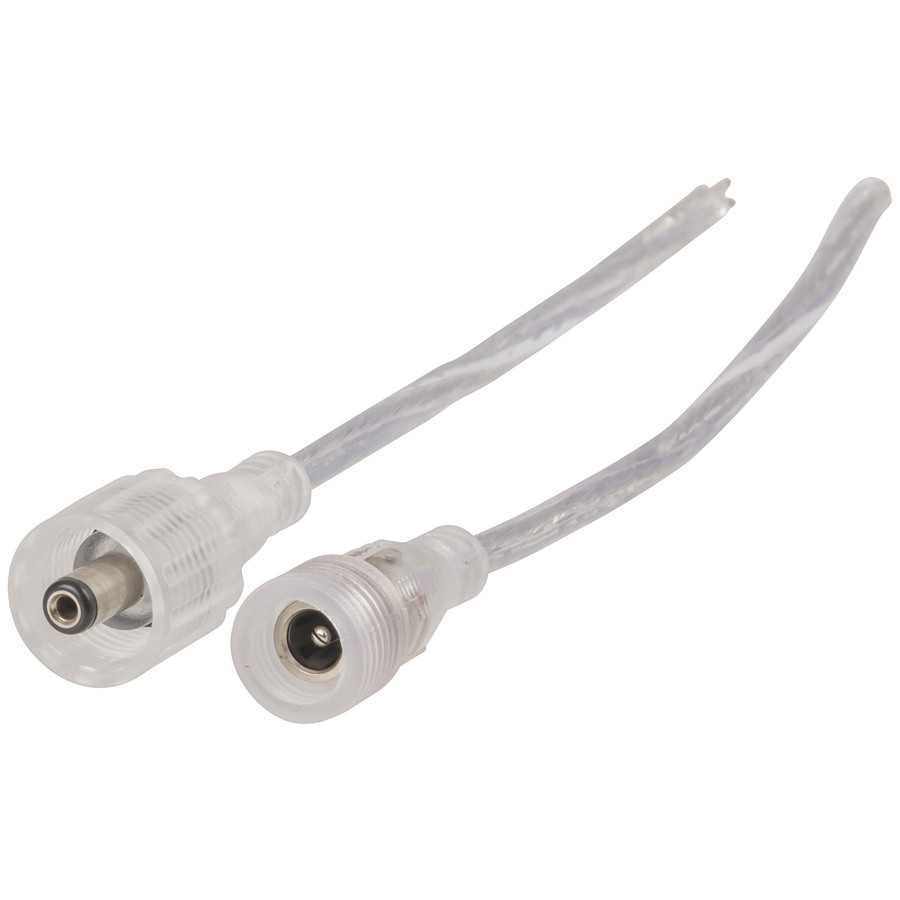

This is the same connector set fitted to our waterproof flexible LED strip lights, which features a standard 2.1(ID) x 5.5(OD)mm DC connection with an IP67 rated coupling. The connectors are supplied pre-fitted to a 100mm pigtail lead, allowing you to make up your own lead set. Very handy on the campsite or in any number of applications. Cables are 20AWG


    Specifications

    Barrel / DC Power Connector

    Outer Diameter
    		 5.5mm
    Inner Diameter
    		 2.1mm

    Plug or Socket

    Contacts / Pins
    		 1pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Cable Entry Diameter
    		 2.1mm
    Contact Material
    		 Metal
    Plug or Socket Type
    		 Barrel Plug DC Power Plug
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic
    Colour Coded
    		 White

    Product Mounting

    Mounting Method
    		 Line

    Ingress Protection Rating

    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 7 - Immersion up to 1m

    Packaged Dimensions

    Packaged Length
    		 11.4cm
    Packaged Width
    		 7.8cm
    Packaged Weight
    		 0.016kg
    Packaged Volume
    		 0.168948l
    Packaged Height
    		 1.9cm

    Product Dimensions

    Cable length
    		 100mm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
