Combo XLR 6.35mm Stereo Socket Switched
Combo XLR 6.35mm Stereo Socket Switched
Combo XLR 6.35mm Stereo Socket Switched

CAT. No. PS1069

Combo XLR 6.35mm Stereo Socket Switched
product image thumb
product image thumb

Combo XLR 6.35mm Stereo Socket Switched

$8.95
Combined 3 pole XLR and 6.35mm stereo jack for balanced microphone or line. It will accept 6.35mm mono, 6.35mm stereo or 3-pin male XLR. Suits D-ser...

Out of Stock

Description

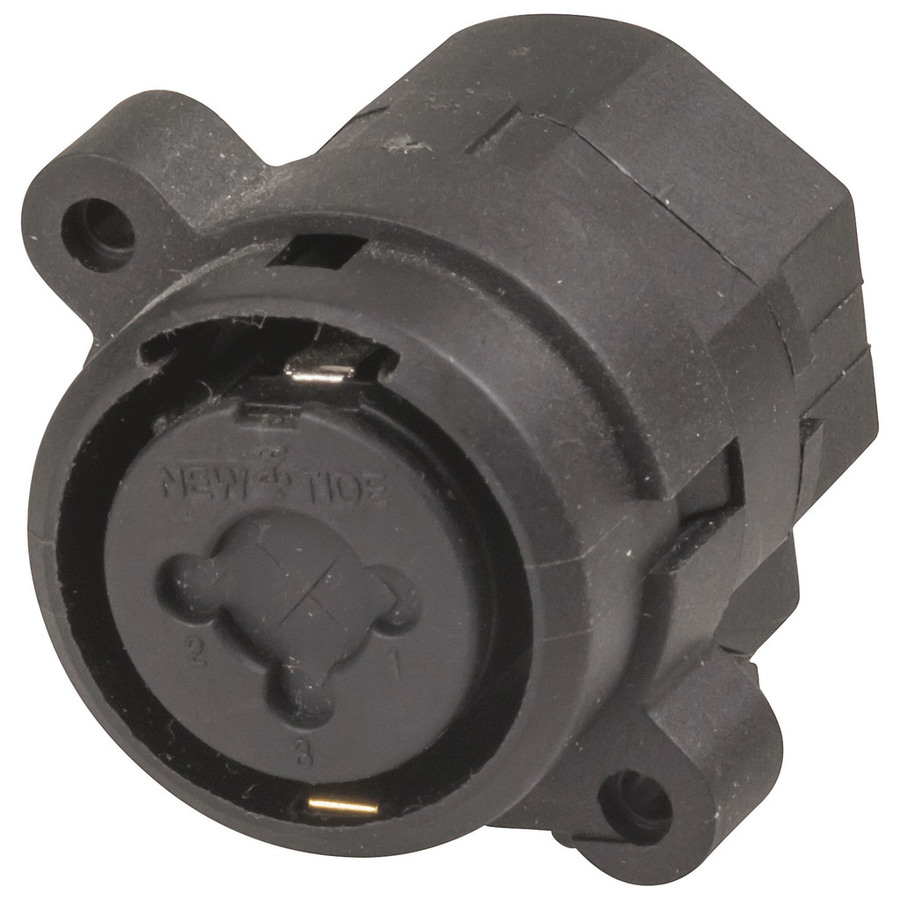

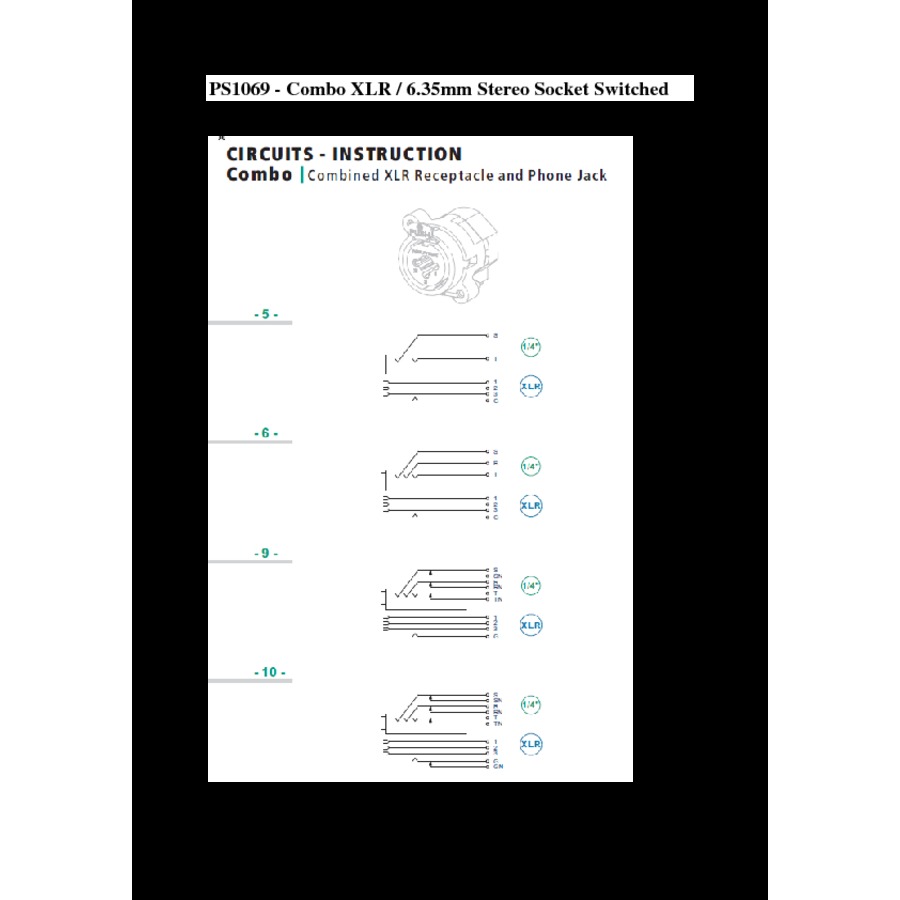

Combined 3 pole XLR & 6.35mm stereo jack for balanced microphone or line. It will accept 6.35mm mono, 6.35mm stereo or 3-pin male XLR. Suits D-series panel cut-outs. Non-locking.

Features:
• Panel or PCB mounting
• Switched
• Independent inputs
• Gold plated contacts


Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic
    Colour Coded
    		 Black

    Product Mounting

    Mounting Method
    		 Panel

    Packaged Dimensions

    Packaged Length
    		 3.4cm
    Packaged Width
    		 3.7cm
    Packaged Weight
    		 0.014kg
    Packaged Volume
    		 0.03145l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
