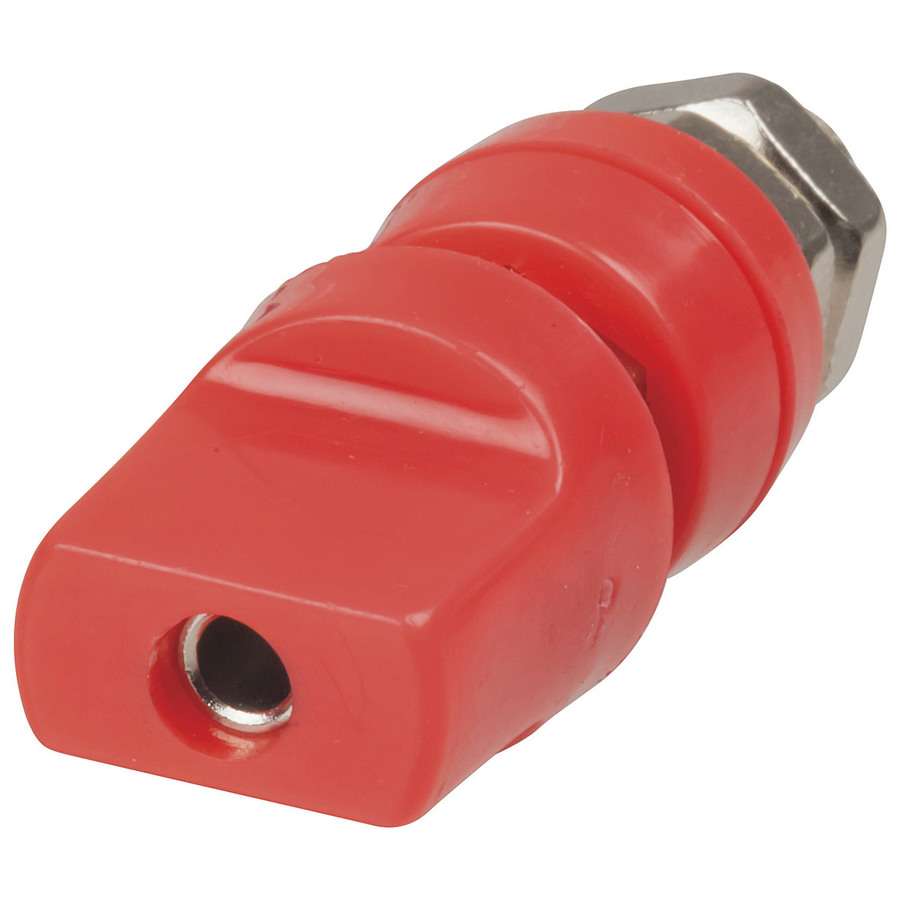

50A Jumbo Binding Post - Red
50A Jumbo Binding Post - Red

CAT. No. PT0465

50A Jumbo Binding Post - Red
product image thumb

50A Jumbo Binding Post - Red

$6.95
For high power applications on your workbench testing or audio equipment.

Out of Stock

Description

1 Year Warranty

High quality tin-plated copper posts, rated at 50A. Thick ABS screw-down. Suitable for high power applications.


    Specifications

    Product Dimensions

    Diameter
    		 20mm, 12mm
    Depth
    		 58mm
    Weight
    		 33g

    Additional Dimensions

    Dimension for
    		 Other (details below)
    Dimensions details
    		 Installation hole
    Diameter
    		 20mm, 12mm

    Plug or Socket

    Contacts / Pins
    		 1pc
    Pack Quantity
    		 1pc
    Contact Material
    		 Copper
    Plug or Socket Type
    		 Binding Post Terminals
    Attachment Method
    		 Screw
    Case Material
    		 Plastic
    Colour Coded
    		 Red

    Product Mounting

    Mounting Method
    		 Through Hole

    AC Current Rating

    AC current rating
    		 50A

    DC Current Rating

    DC current rating
    		 50A

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 5.9cm
    Packaged Width
    		 1.9cm
    Packaged Weight
    		 0.04kg
    Packaged Volume
    		 0.02242l
    Packaged Height
    		 2cm
    Warranty: 12 Months
