Anderson Powerpole Series 4 Pin Data Connector
Anderson Powerpole Series 4 Pin Data Connector
Anderson Powerpole Series 4 Pin Data Connector

CAT. No. PT4403

Anderson Powerpole Series 4 Pin Data Connector
product image thumb
product image thumb

Anderson Powerpole Series 4 Pin Data Connector

$14.95
N/A
Available

Description

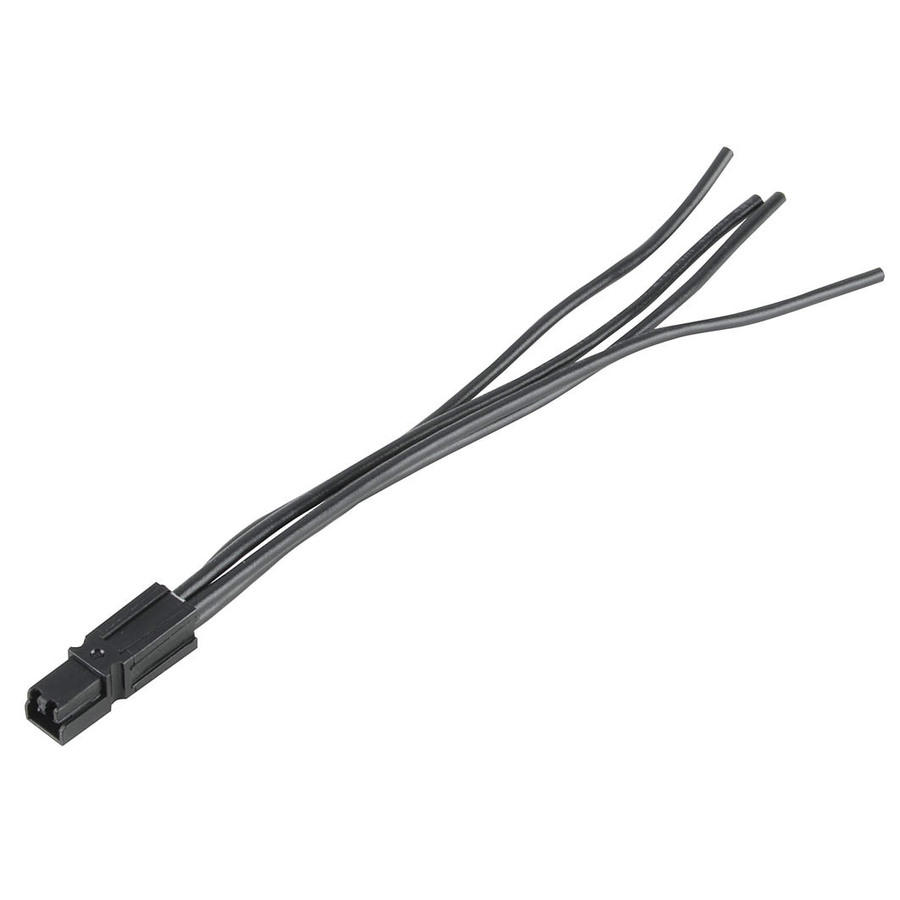

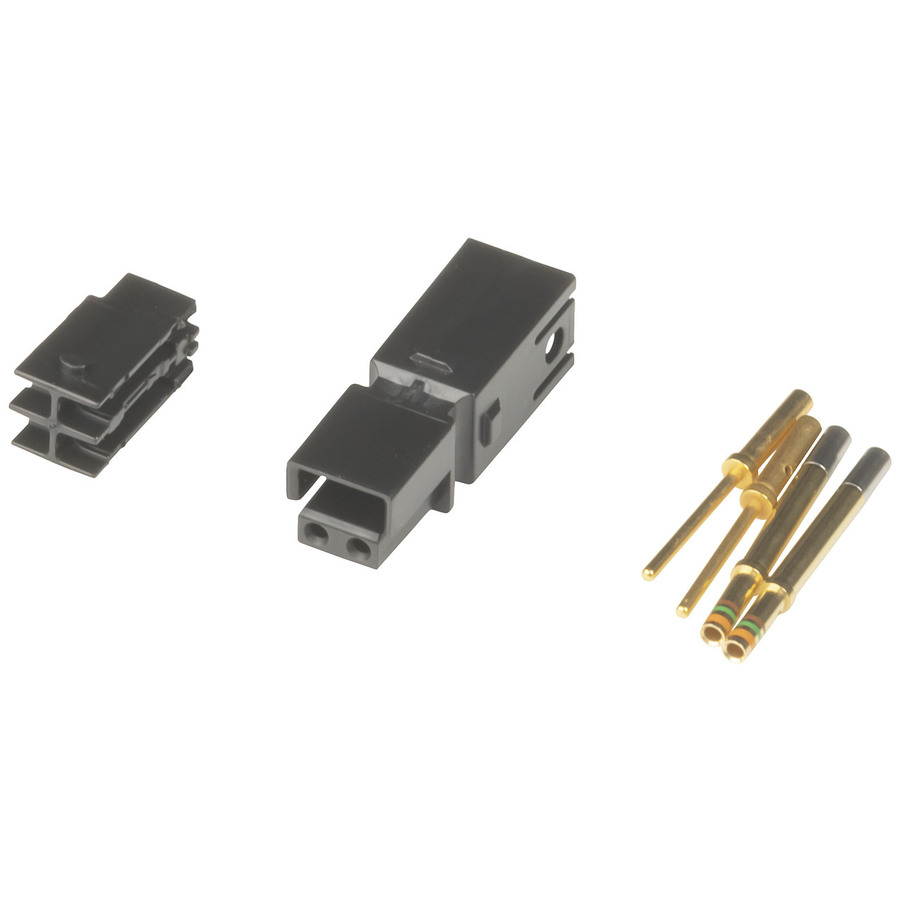

A genderless 4 pole signal Anderson connector in a PP15 casing. The design allows you to stack this with the PP15 series 15A Anderson connector (PT-4402) for DC and signal wiring connectivity. It provides a secure quick disconnect for power and signal distribution systems. Up to 24 gauge for signal wire connectivity.


    Specifications

    Product Dimensions

    Length
    		 25mm
    Height
    		 8mm
    Width
    		 8mm

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 0.8cm

    Plug or Socket

    Contacts / Pins
    		 1pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Contact Material
    		 Plated Metal
    Plug or Socket Type
    		 4 way 15A Anderson
    Attachment Method
    		 Crimp
    Case Material
    		 ABS Plastic (Acrylonitrile Butadiene Styrene)
    Colour Coded
    		 Black

    Product Mounting

    Mounting Method
    		 Line

    DC Voltage Rating

    DC Voltage
    		 600V

    DC Current Rating

    DC current rating
    		 15A
