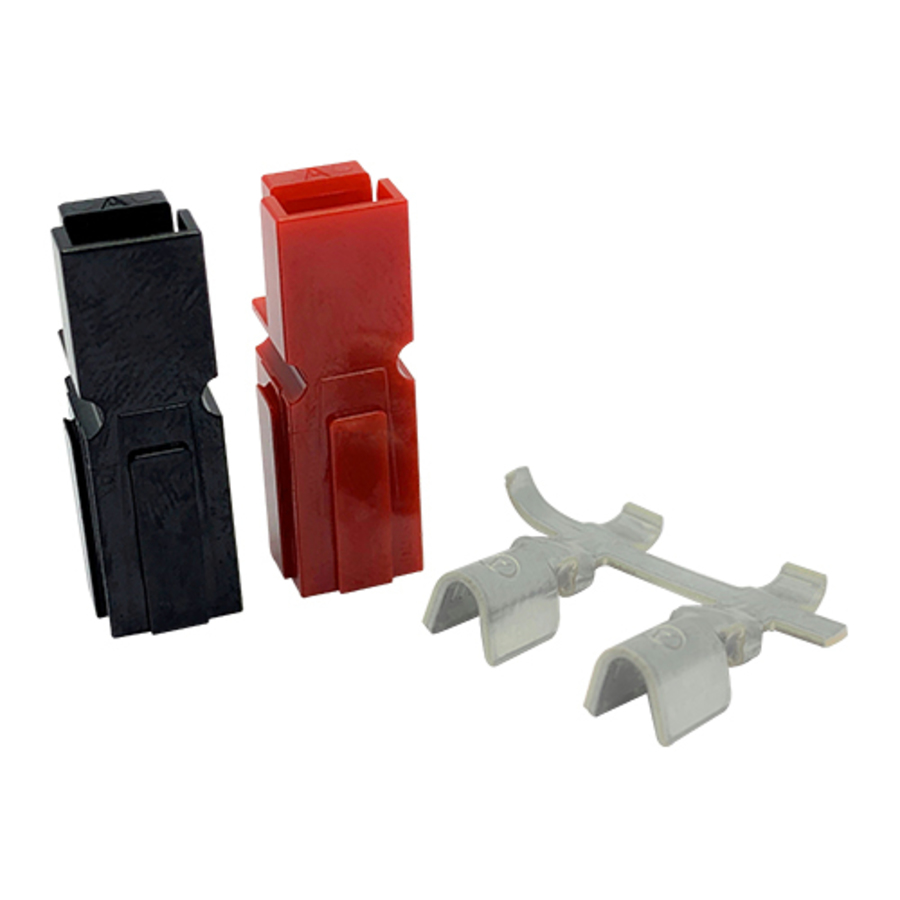

45A Anderson Powerpole™ Connector Set
45A Anderson Powerpole™ Connector Set

CAT. No. PT4406

45A Anderson Powerpole™ Connector Set
product image thumb

45A Anderson Powerpole™ Connector Set

$6.95
Genderless open-barrel anderson connectors rated at 45A. Suitable for use in numerous applications from automotive to aviation.Supplied as red and b...

Out of Stock

Description

These industry standard connectors are used in automotive, marine, aviation and mining applications and are used widely in industry. They are genderless which means that there is no separate plug and socket and can be easily stacked to make custom configurations. UL rated to 45A DC, they are compact enough to fit in tight places but rugged enough to handle most current loads.

Specifications:
• Contact Wire Size:2.1mm2- 5.3mm2 (14-10AWG)
• Max Wire Insulation Diameter: 5.08mm
• Contact Retention Force: 9kgs (20lbs)
• Operating Temperature: -40 to +125°C


    Specifications

    Plug or Socket

    Contacts / Pins
    		 2pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Contact Material
    		 Metal
    Plug or Socket Type
    		 Anderson 45A Single Pole
    Attachment Method
    		 Crimp
    Case Material
    		 Plastic
    Colour Coded
    		 Red and Black Pair

    Operating Temperature

    Operating Temperature
    		 125°C

    Packaged Dimensions

    Packaged Length
    		 6.1cm
    Packaged Width
    		 4.5cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.04392l
    Packaged Height
    		 1.6cm

    Product Availability

    Availability
    		 Stocked item
