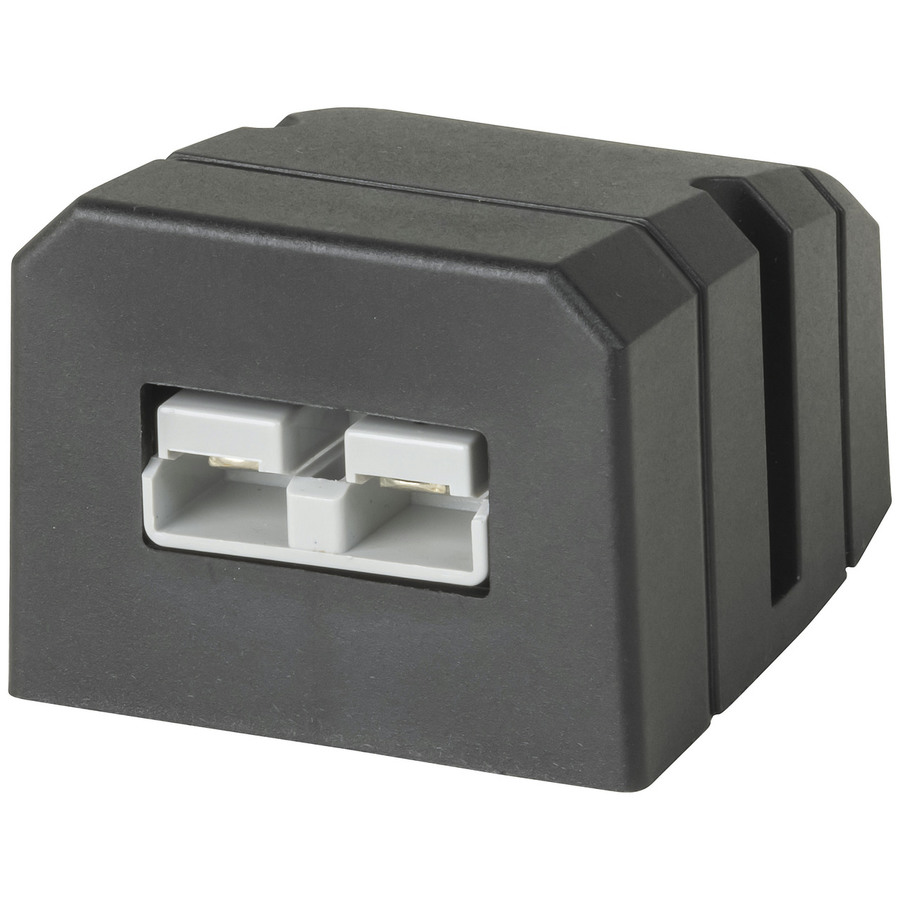

Surface Mount Bracket with Single 50A Battery Connector
Surface Mount Bracket with Single 50A Battery Connector
Surface Mount Bracket with Single 50A Battery Connector
Surface Mount Bracket with Single 50A Battery Connector

CAT. No. PT4490

Surface Mount Bracket with Single 50A Battery Connector
product image thumb
product image thumb
product image thumb

Surface Mount Bracket with Single 50A Battery Connector

$18.95
A range of surface mounting brackets with 50A Battery connector for mounting onto or under trims and panels.
Available

Description

A range of surface mounting brackets with 50A Battery Connector connector for mounting onto or under trims and panels.
• 50A rated
• Includes mounting hardware
• Dual USB ports - 3.1A max shared (PT4496) (PT4494)
• 10A marine grade cigarette lighter socket (PT4494)

PT4490 1 x 50A Battery Connector
PT4492 2 x 50A Battery Connector
PT4494 1 x 50A Battery Connector, Cigarette Lighter Socket and Dual USB Sockets
PT4496 1 x 50A Battery Connector and Dual USB Sockets


    Specifications

    Plug or Socket

    Plug or Socket Types
    		 High Current Connector(50A)

    DC Current Rating

    DC current rating
    		 50A

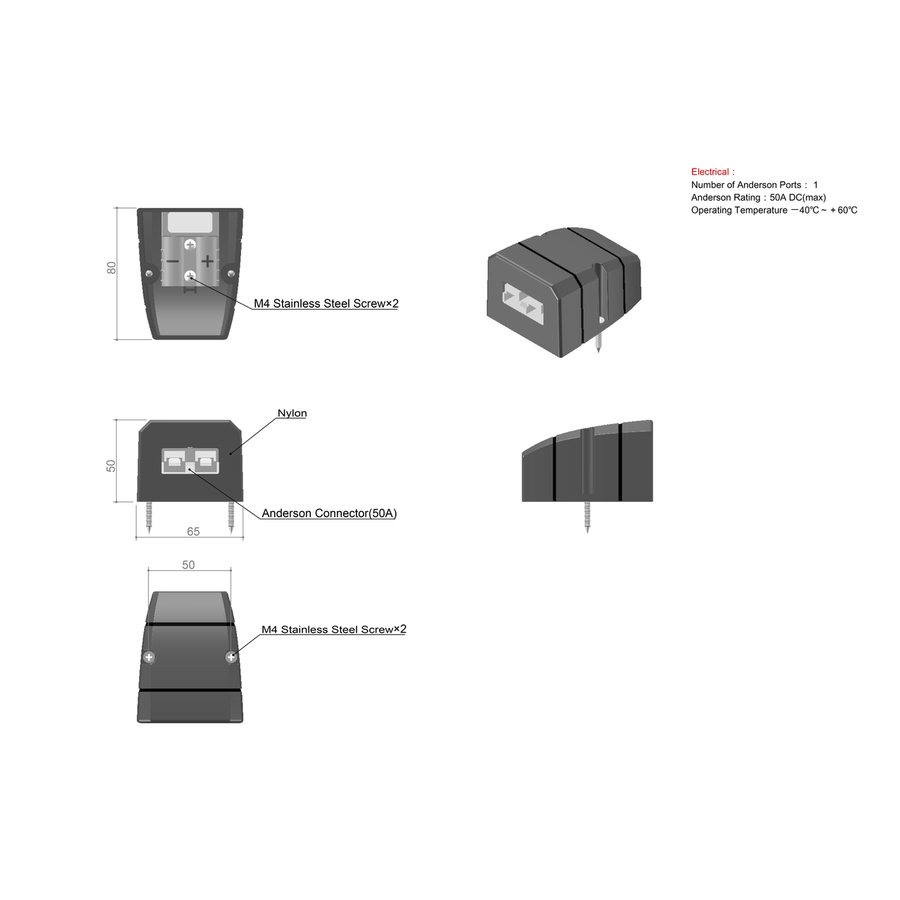

    Product Dimensions

    Height
    		 80mm
    Width
    		 65mm
    Depth
    		 50mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 15.1cm
    Packaged Width
    		 10.1cm
    Packaged Weight
    		 0.104kg
    Packaged Volume
    		 0.838805l
    Packaged Height
    		 5.5cm
