CAT. No. PT4660

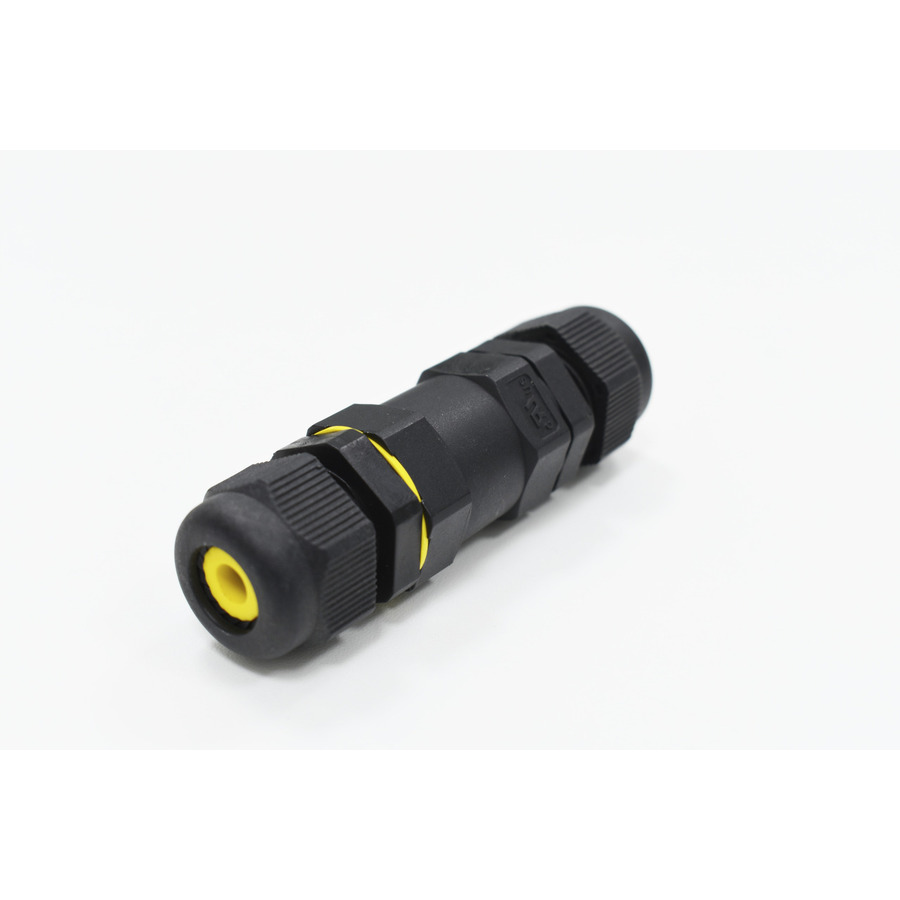

Amphenol LTW Inline Screw-in Cable Joiner 3P 6.6-8.5MM IP68
$20.95
Newly developed Cable Joiner from Amphenol designed with screw terminal termination.
Out of Stock
Description

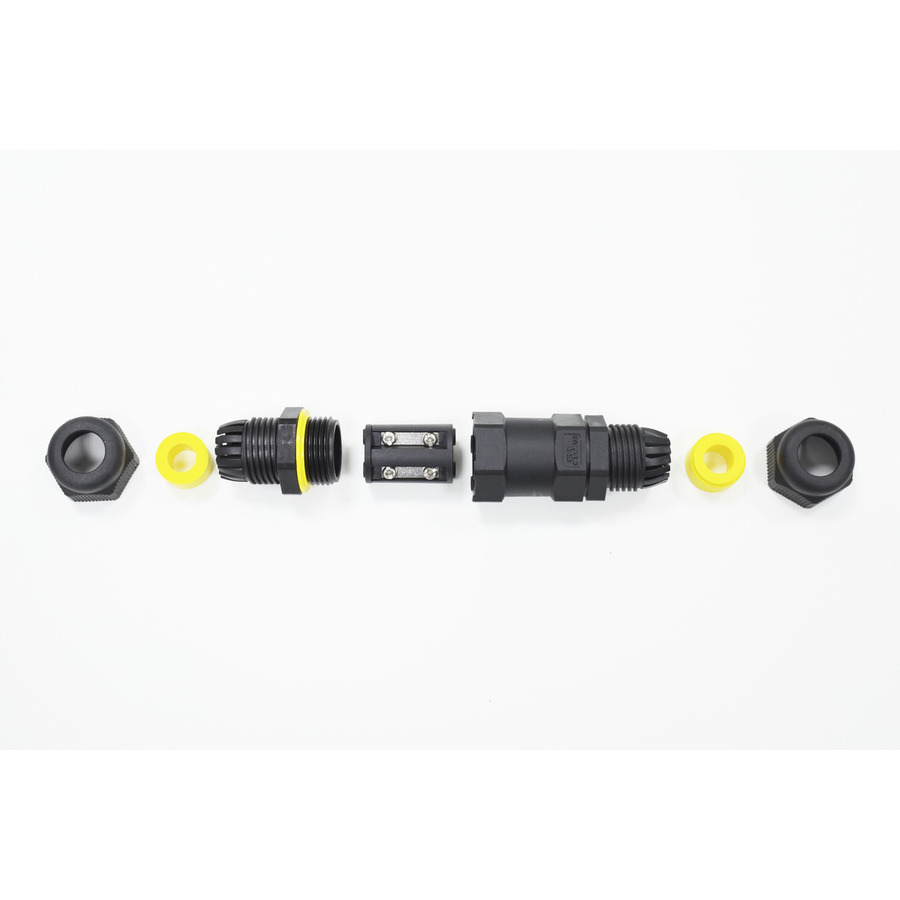

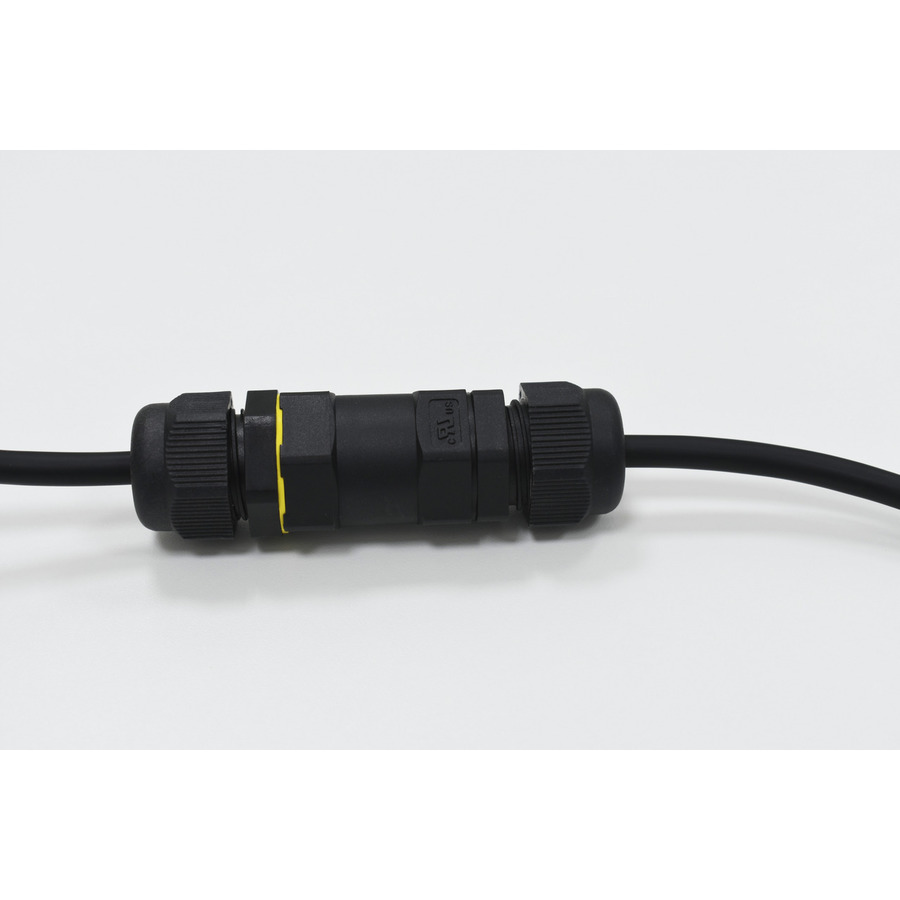

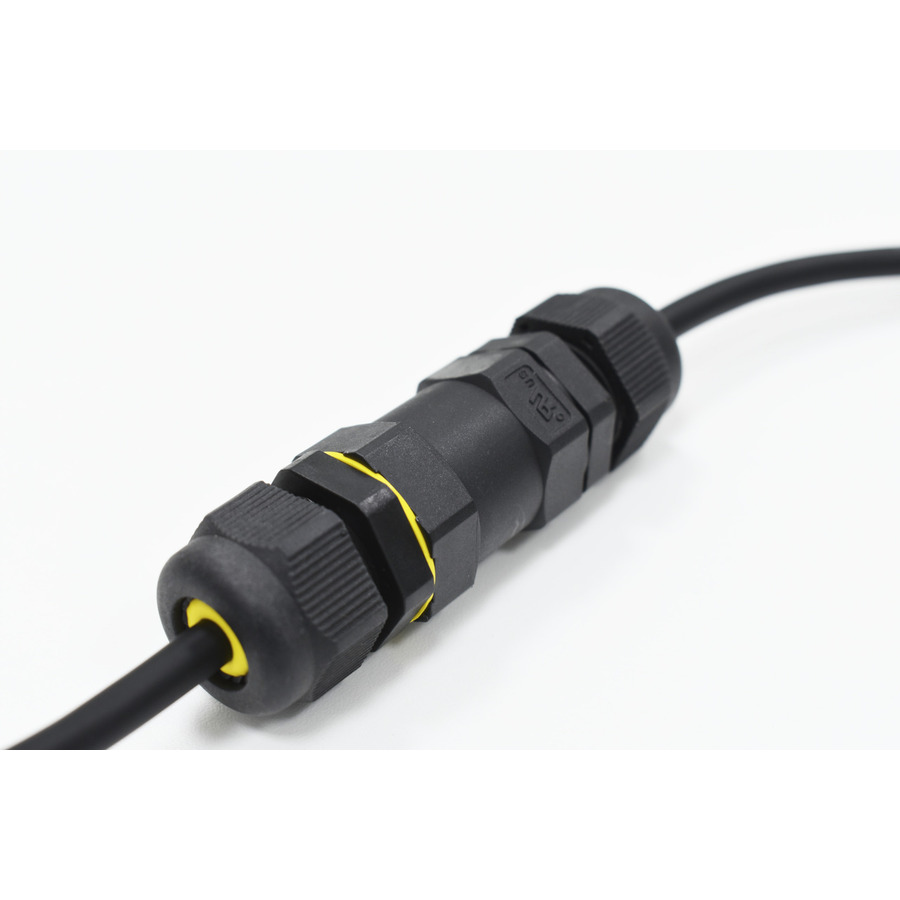

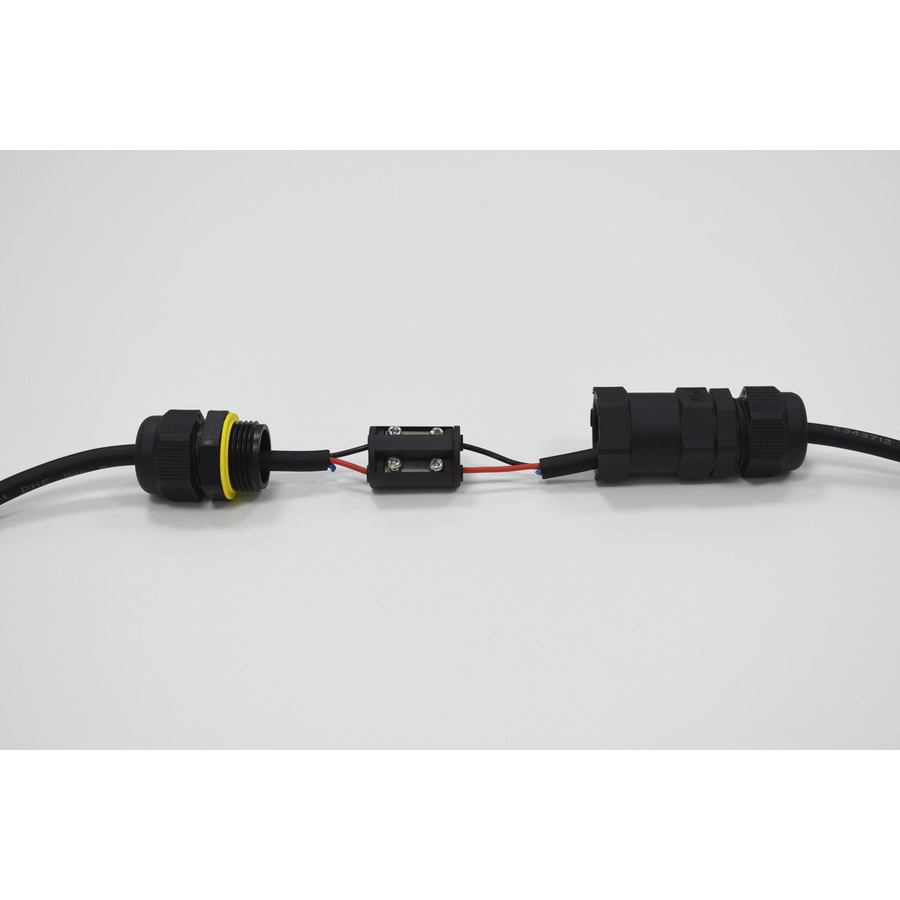

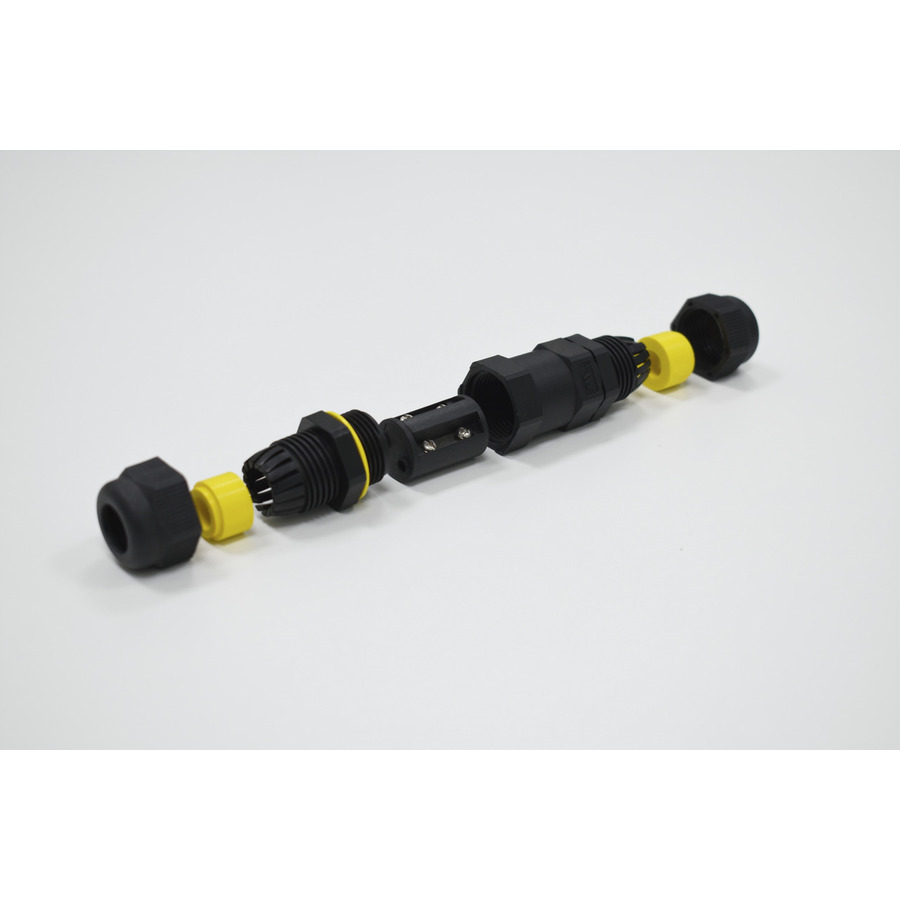

Newly developed Cable Joiner from Amphenol LTW, UL FICX series which is compliant with UL2238 standard. The UL FICX is designed with screw terminal termination, providing quick and practical field assembly. It is IP68 rated and equipped with UV resistant materials, that can meet the needs in LED lighting, CCTV security, Solar and Marine applications. Great for environments where reliable interconnections are required.
Specifications:
Easy grip design, quick and easy Installation
Number of poles: 3
Current rating: 20A
Voltage rating: 600VAC/DC
Wire section range: 18AWG to 12AWG (0.75mm² to 3.5mm²)
Cable Outer Diameter: 6.5 to 8.5mm
Operating temperature range from -40°C to 105°C
UL 2238, file number: E318730 / CSA C22.2 No. 182.3, file number: E318730
