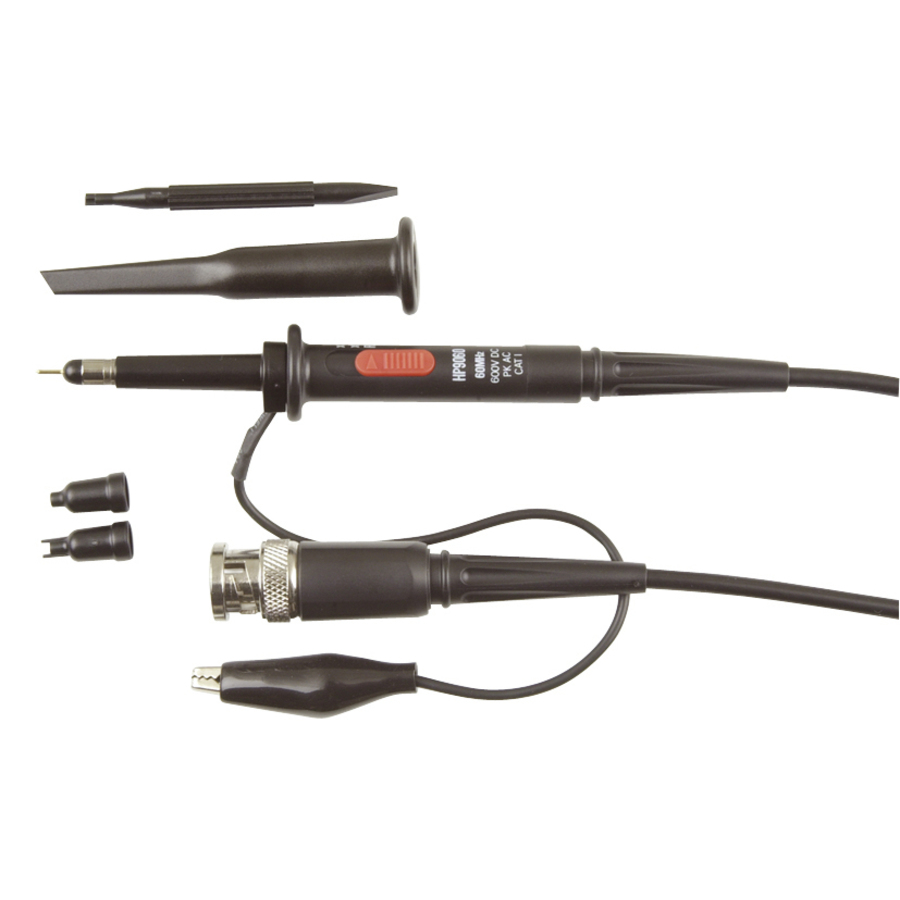

This quality probe set consists of a 1.2m quality cord terminated at one end with a moulded-on stainless steel BNC connector and 1 x, 10x attenuator probe at the other end. An earthing lead 180mm long with alligator clip to connect to the probe at the other end is provided. Also provided is an adaptor that slides on to the probe to change the probe tip to a spring hook. Suitable as a replacement probe for most oscilloscopes.

*NB: Not to be used for EHT voltage.

Features:
Attenuation 10:1
- Bandwidth DC~40MHz (+/-1dB) DC~60MHz (±1dB)
- Input Resistance ~10Mohm
- Input Capacitance ~22pF
- Max Input Voltage: DC 600V

Attenuation 1:1
- Bandwidth DC~3MHz (+/-3dB) DC~6MHz (±3dB)
- Input Resistance ~1Mohm
- Input Capacitance ~180pF
- Max Input Voltage: DC 600V
