CAT. No. QC3530

Flush Mount 12V Reversing Camera
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

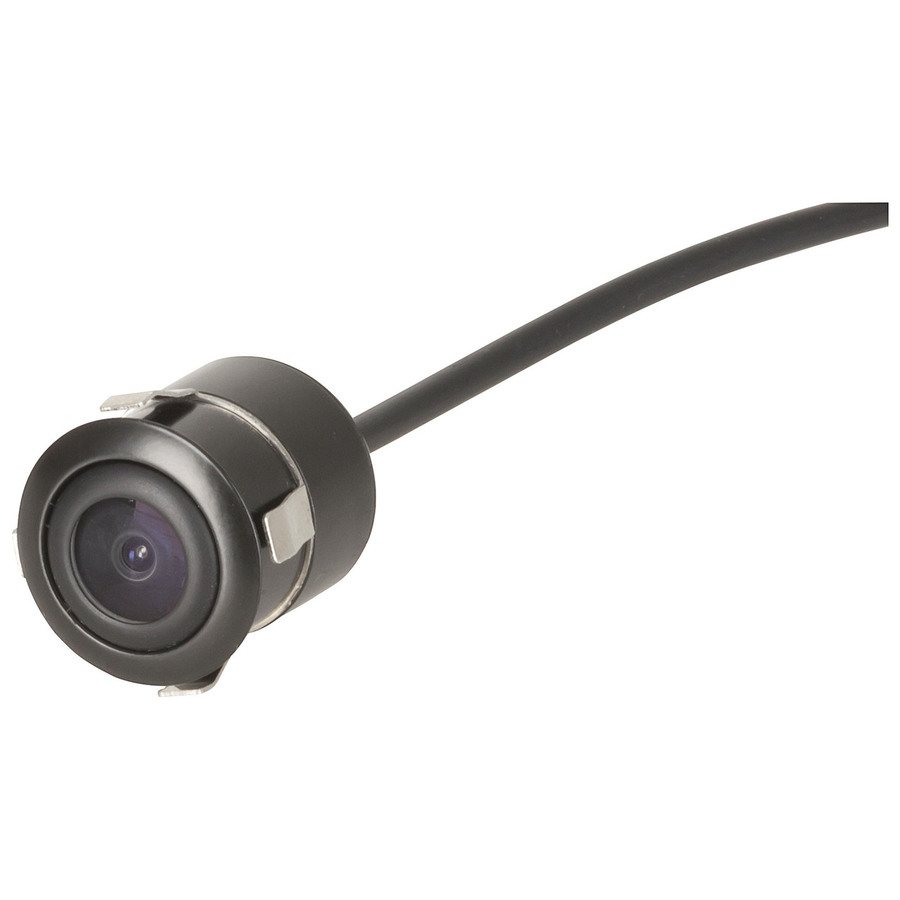

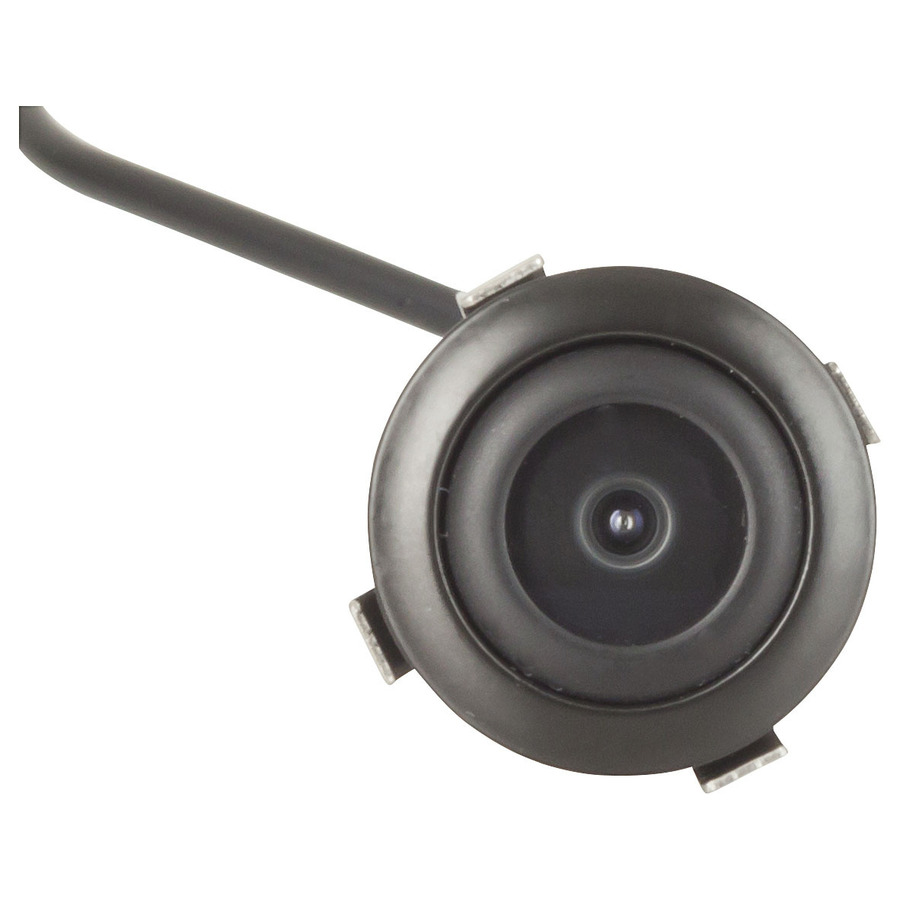

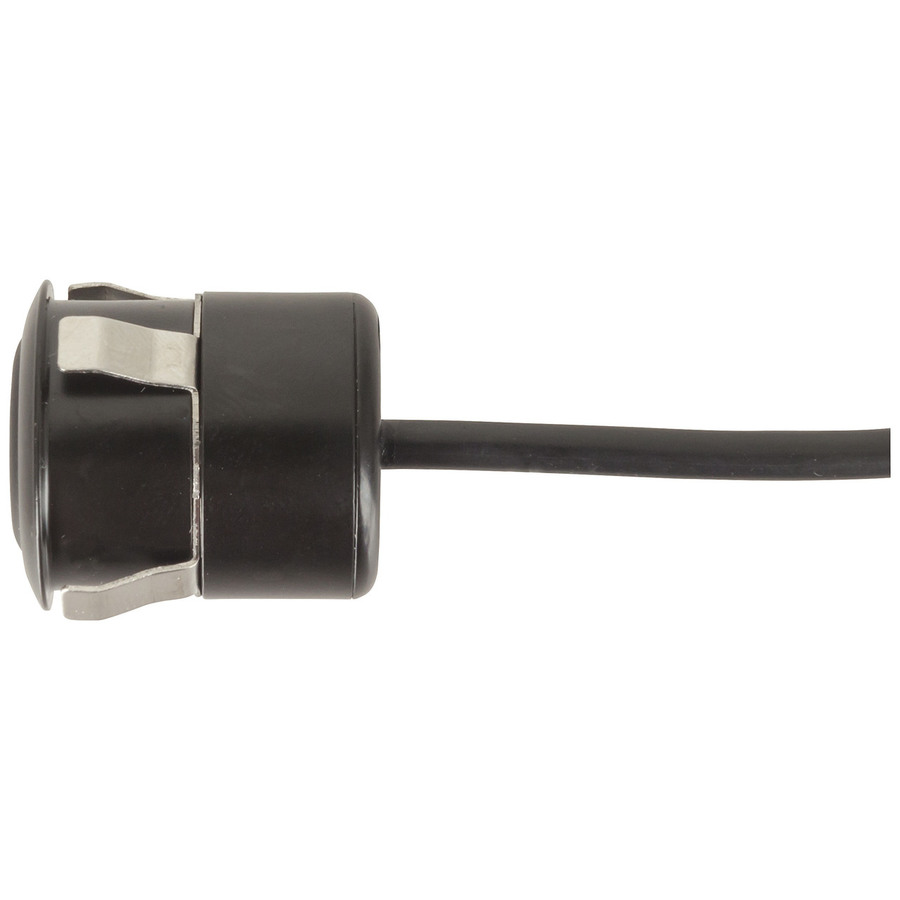

Flush Mount 12V Reversing Camera

$61.95
Designed for use in vehicles to give drivers a clear view of car or truck blind spots. Reversing into tight spots, or parking in low light underground car parks is fraught with obstructions and potential accidents
Available

Description

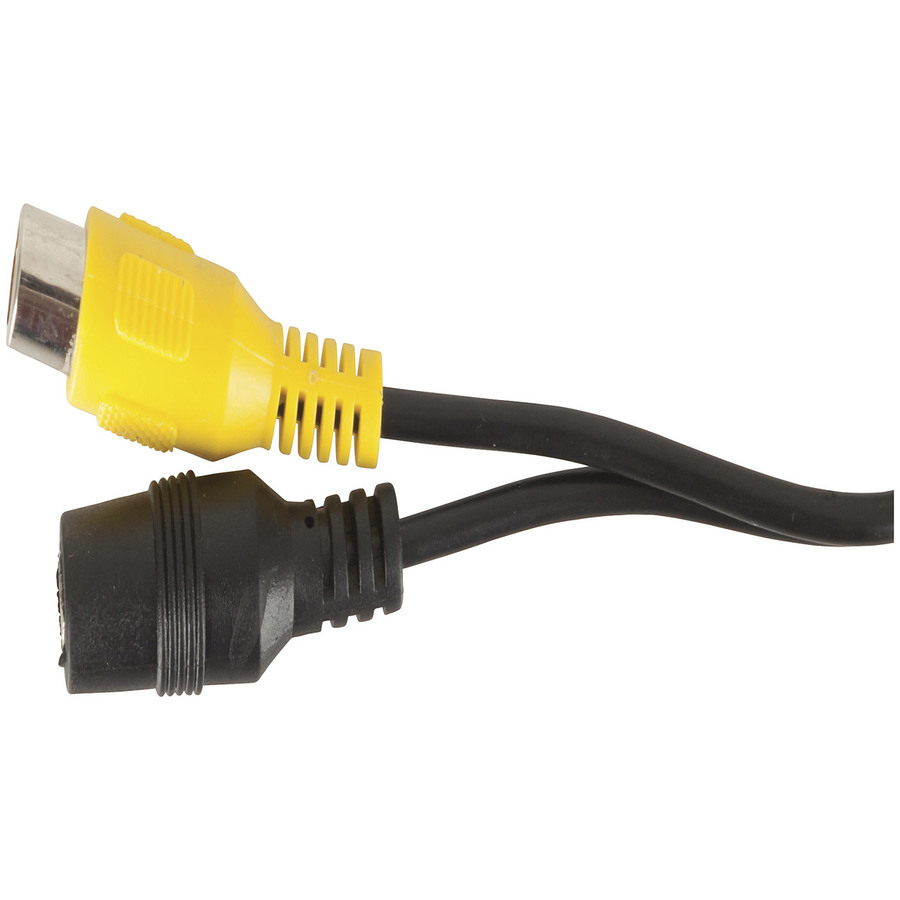

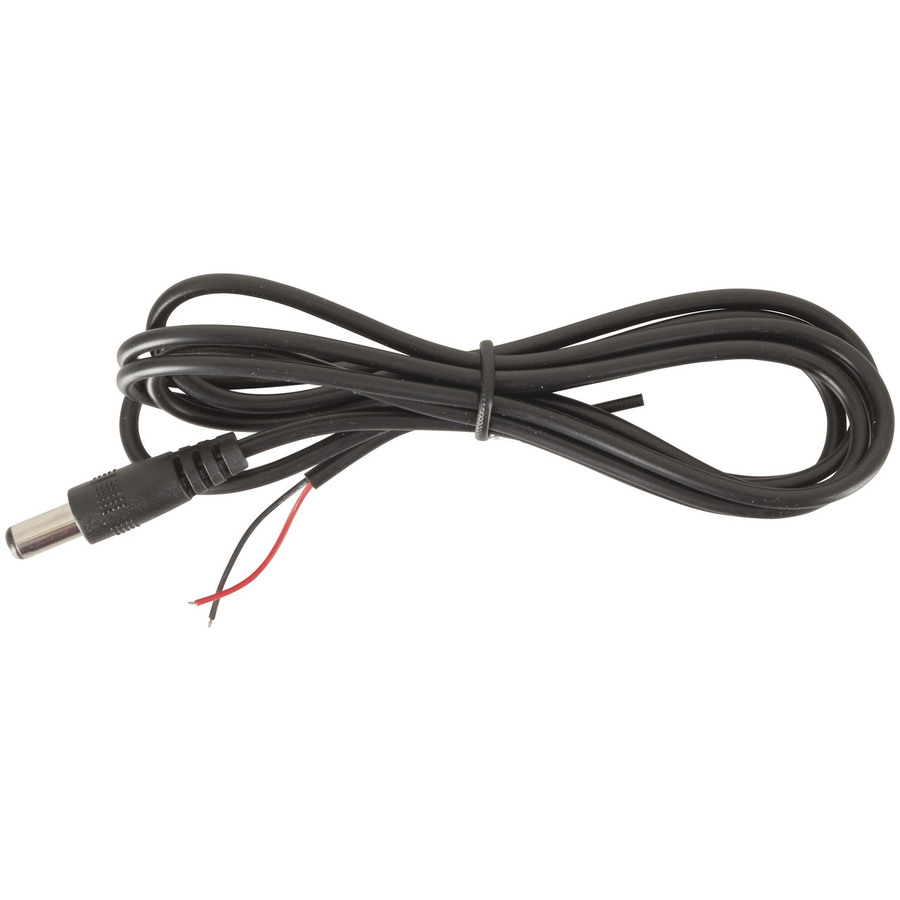

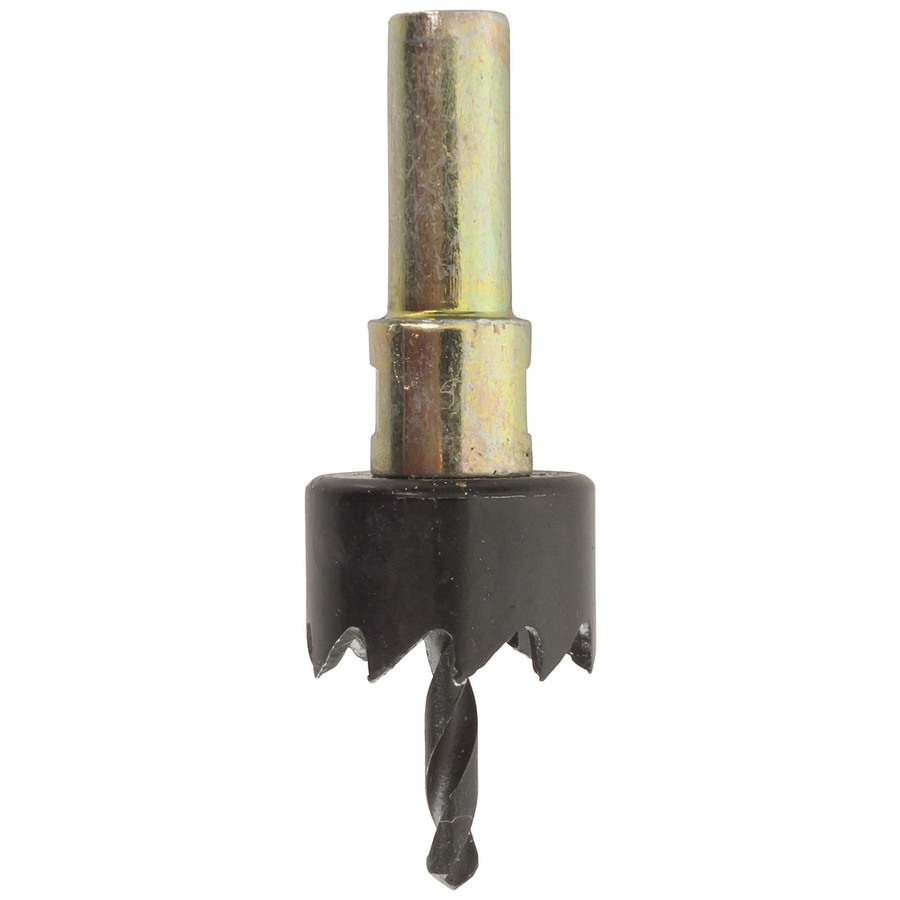

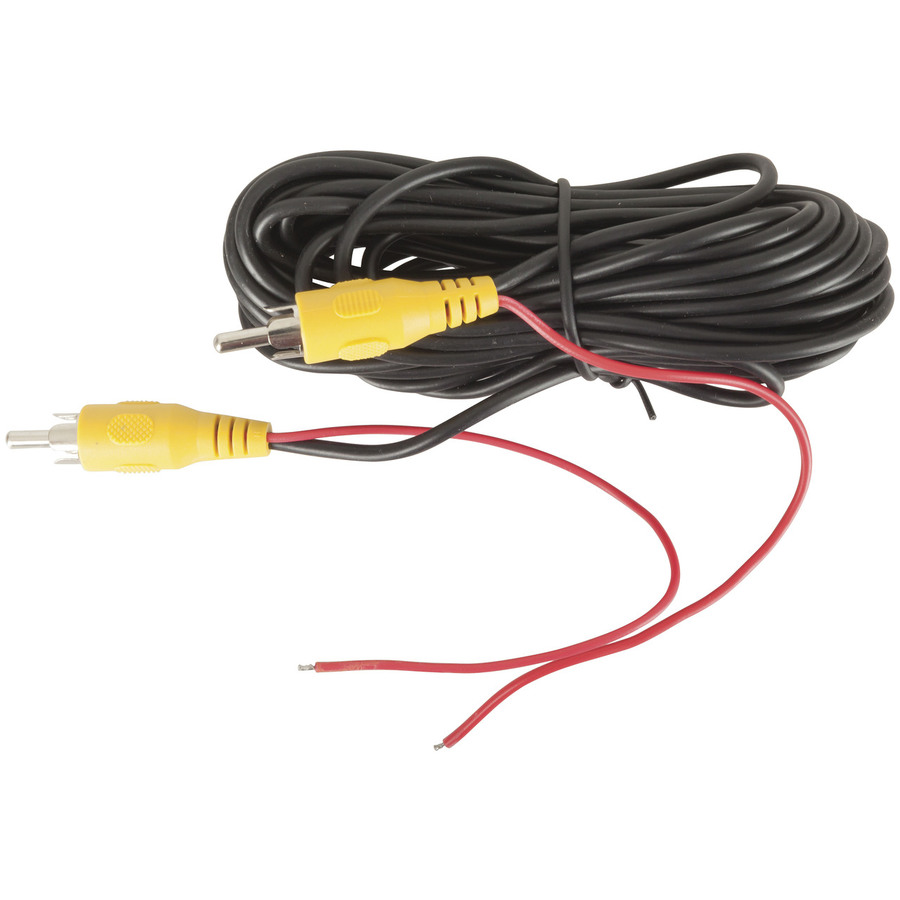

Designed for use in vehicles to give drivers a clear view of car or truck blind spots. Reversing into tight spots, or parking in low light underground car parks is fraught with obstructions and potential accidents. Park your car with ease and avoid costly repair bills. Installation is very simple with the supplied 6m length wiring loom and hole saw drill bit.


Features:
•    Sensor: PC7070
•    Resolution: 420 TV lines
•    Minimum Illumination: 0 Lux
•    IP Rating: IP67
•    Video out: 1Vp.p. 75 ohm
•    Operating temperature: -20 - +75 deg C, RH95 max.


For more info on Resolution.


    Specifications

    Product Dimensions


    Diameter
    18.5mm

    Packaged Dimensions


    Packaged Length
    13.5cm
    Packaged Width
    9.3cm
    Packaged Weight
    0.196kg
    Packaged Volume
    0.87885l
    Packaged Height
    7cm

    Ingress Protection Rating


    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    7 - Immersion up to 1m

    Reversing Cameras & Monitors


    Camera View Angle
    120°
    General Type
    rearview camera
    TV System
    PAL Video

    Vehicle or Vessel Powered


    Required Voltage
    12V
    Item Connection
    Hard Wired

    Product Availability


    Availability
    Stocked item
