CAT. No. QC3536

12V Infrared Reversing Camera with Mounting Bracket
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

12V Infrared Reversing Camera with Mounting Bracket

$149
Constructed from tough aluminium alloy and equipped with a black metal shield which helps deflect sun glare, rain and dust. - Infrared LEDs for Night Illumination - IP68 Rated - Shock and Vibration Resistant

Out of Stock

Description

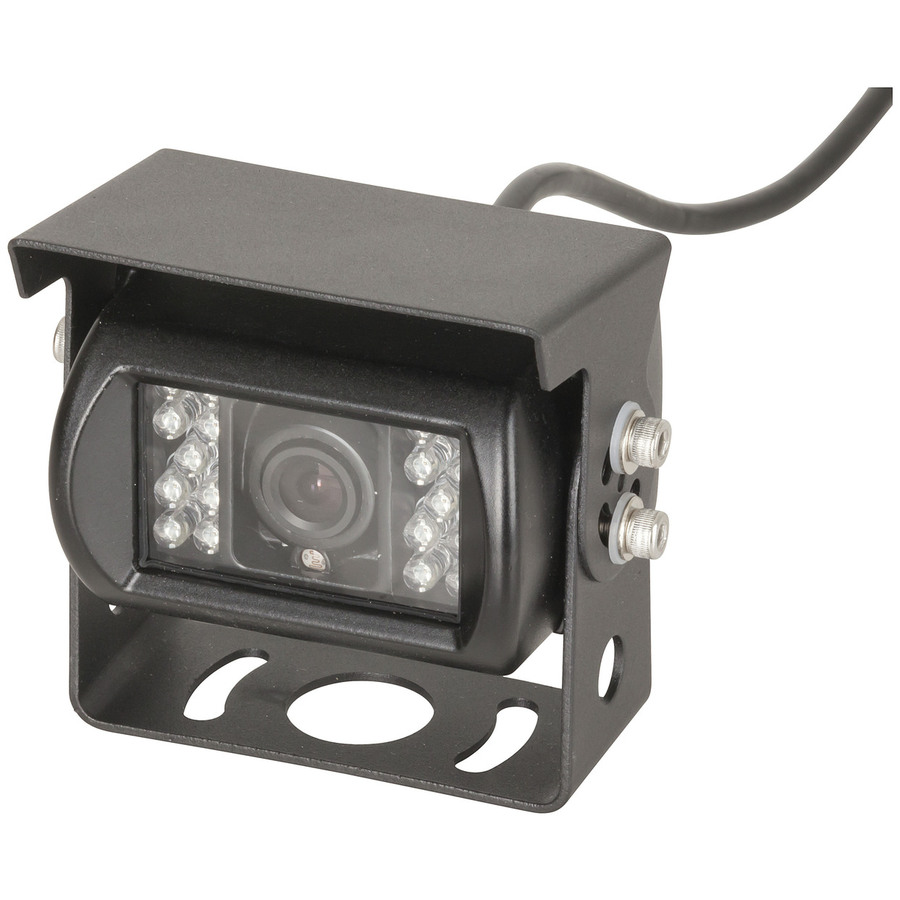

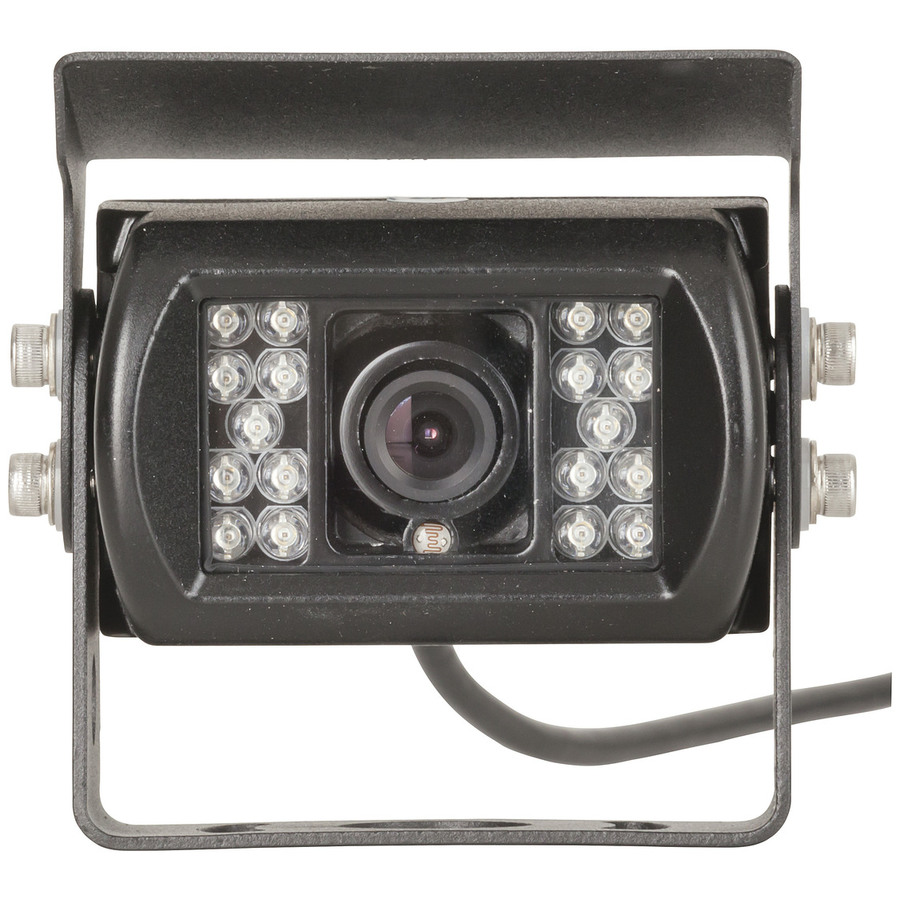

The camera housing is constructed using tough aluminium alloy and equipped with a black metal shield which helps deflect sun glare, rain and dust.  It is shock and vibration resistant and fitted with Infrared LEDs for night illumination. It is IP68 rated and suitable for heavy duty applications such as trucks, buses, RV's and caravans.

Features:
•    Sensor: Sharp ¼ CCD
•    Resolution: 420 TV lines
•    Minimum Illumination: 0.5Lux
•    IP Rating: IP68
•    Video out: 1Vp.p. 75 ohm
•    Power Supply: 12VDC only, not suitable for 24VDC applications
•    Operating temperature: -20 - +70 deg C, RH95 max.


For more info on Resolution.


    Specifications

    Packaged Dimensions


    Packaged Length
    13.6cm
    Packaged Width
    9.5cm
    Packaged Weight
    0.508kg
    Packaged Volume
    0.969l
    Packaged Height
    7.5cm

    Ingress Protection Rating


    IP Rating
    IP68
    IP Rating certificate
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    8 - Immersion beyond 1m

    Reversing Cameras & Monitors


    Camera View Angle
    120°

    Product Availability


    Availability
    Stocked item
