CAT. No. QM1594

Multifunction Environment Meter with DMM
product image thumb
product image thumb
product image thumb
product image thumb

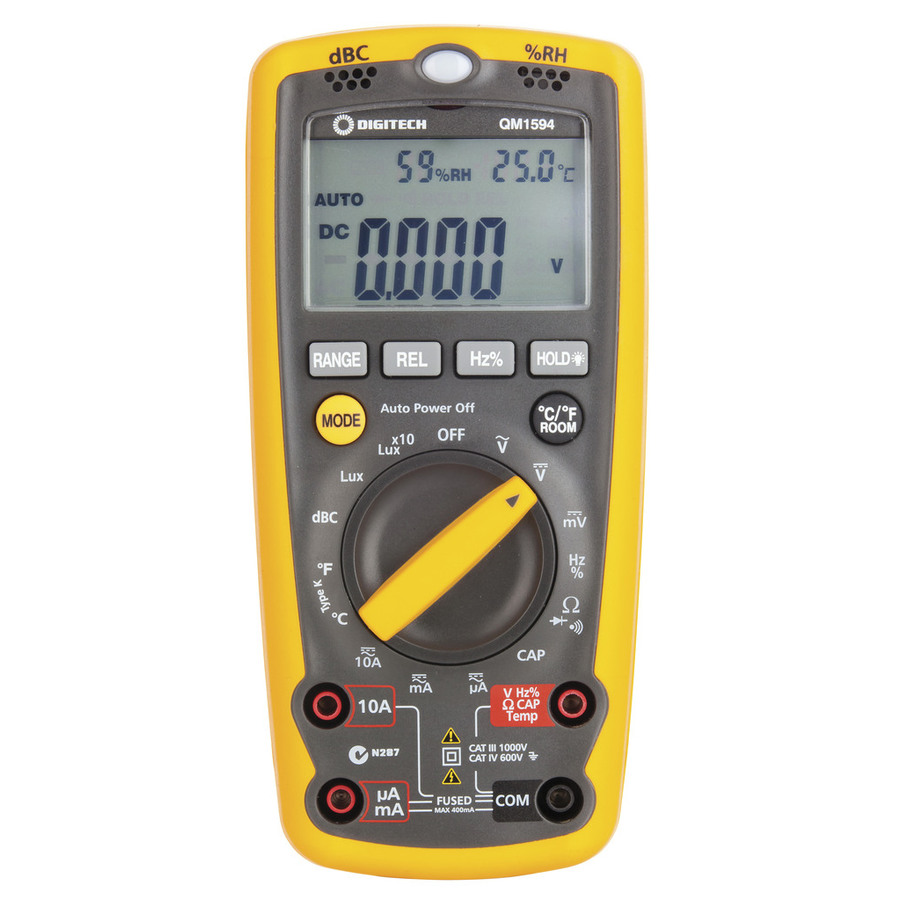

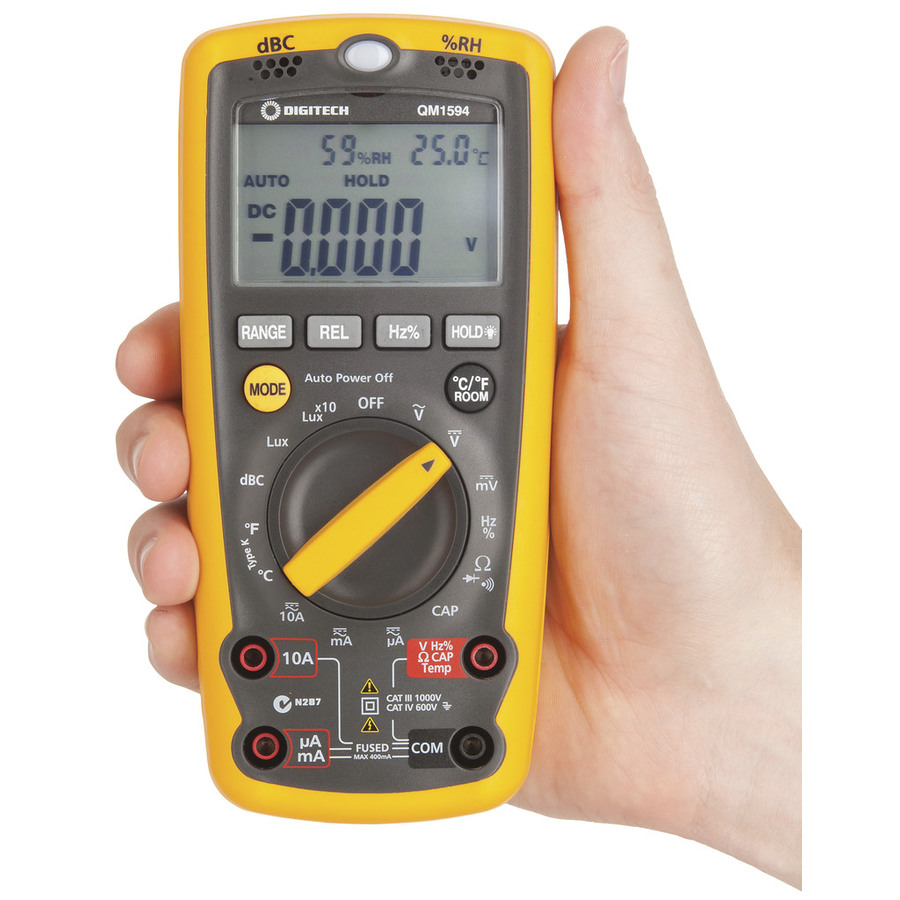

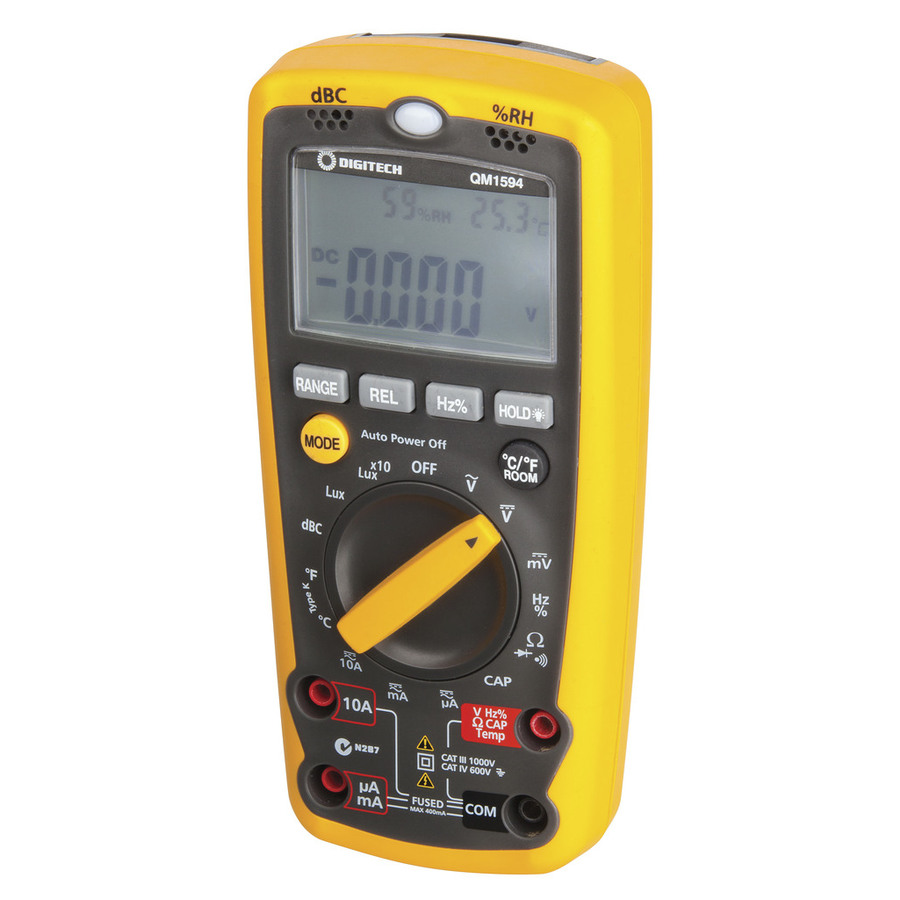

Multifunction Environment Meter with DMM

$179
A multi-function environment meter that combines the functions • Sound level meter • Light level meter • Indoor temperature and humidity measurement • Non contact voltage

Out of Stock

Description

Batteries Included

A multi-function environment meter that combines the functions of a sound level meter, light meter, humidity meter and temperature meter. Typical sound applications include checking acoustics of recording studios, auditoriums and professional hi-fi installations. The light and humidity meters are ideal for video photographers, greenhouse and hydroponic setups, etc. Others who should find this meter essential include interior designers, factory and office managers, record and archive keepers, schools, hospitals, laboratories and, of course, universities.

Features:

• Sound level meter
• Light level meter
• Indoor temperature and humidity measurement
• Non contact voltage
• Display: 4000 count
• Safety Category: Cat IV 600V
• Basic DCV accuracy: 1%
• Temperature: -20°C to 750°C (±1.2%)
• Ave/RMS: Ave
• Input impedance: 10M
• Special features: Lux, SPL, Humidity

For More info on Digital Multimeters.

    Specifications

    Measures Voltage DC


    DC Voltage Accuracy
    0.50000000%
    DC Voltage Ranges
    400mV, 4V, 40V, 100V, 250V

    Measures Voltage AC


    AC Voltage Ranges
    400mV, 4V, 40V, 100V, 250V
    AC Voltage Accuracy
    1.20000000%

    Measures Current DC


    DC Current Accuracy
    1%
    DC Current Ranges
    400µA, 4mA, 40mA, 400mA, 10A

    Measures Current AC


    AC Current Accuracy
    1%
    AC Current Ranges
    400µA, 4mA, 40mA, 400mA, 10A

    Measures Resistance


    Resistance Ranges
    400?, 4k?, 40k?, 400k?, 4M?, 40M?
    Resistance Accuracy
    0.80000000%

    Measures Capacitance


    Capacitance Accuracy
    3.50000000%
    Capacitance Ranges
    50nF, 500nF, 5µF, 50µF, 100µF

    Measures Frequency


    Frequency Ranges
    5Hz, 50Hz, 500Hz, 5kHz, 500kHz, 10MHz
    Frequency Accuracy
    1.50000000%

    Measures Temperature


    Measures in Celcius
    Outdoor / Exterior Scale
    -20°C-750°C
    Celcius Accuracy
    1.20000000%

    Meter Safety Rating


    Safety Rating Max Volt
    600V
    Safety Rating Cat
    Cat IV

    Digital Multi-Meter


    Autorange
    Count Maximum Reading
    4000 count

    Meter Data Control


    Data Hold
    Relative Measure

    Measures Continuity


    Continuity indicator
    Needle

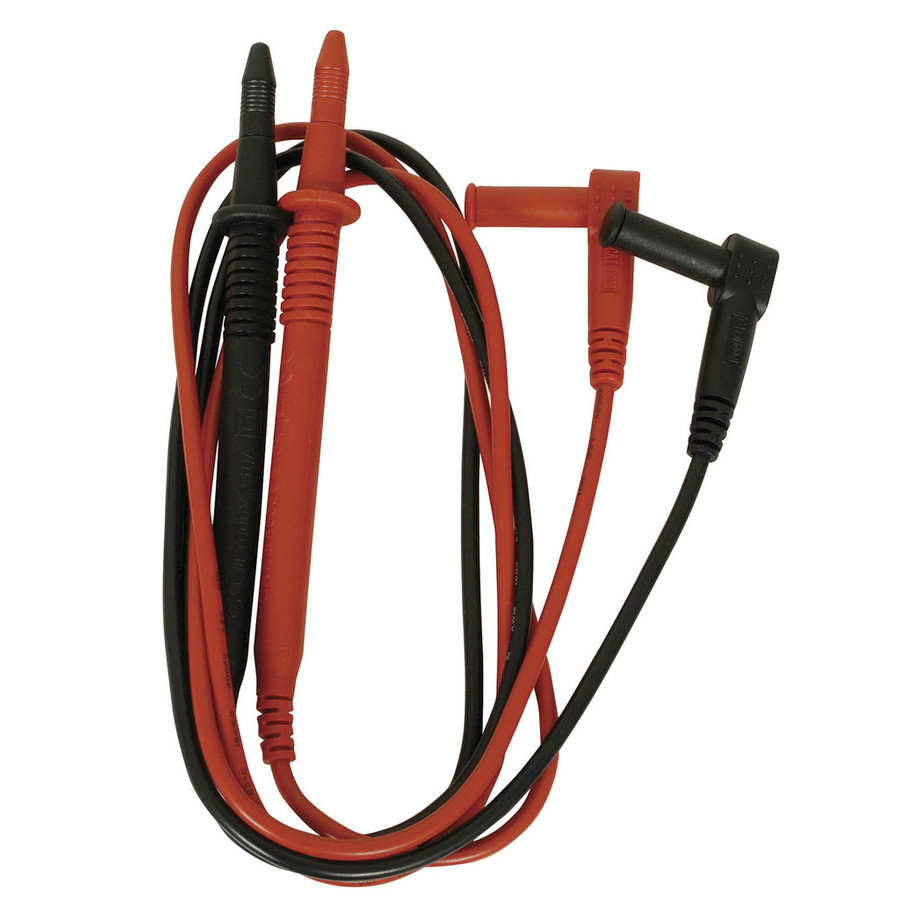

    Meter Probes


    Probe rating voltage
    600V
    Probe safety rating
    Cat IV

    Meter


    Input Protection Fuse
    500mA, 10mA
    Casing
    Plastic
    Measures diode
    Meter Input Impedence
    10?

    Measures Humidity and Moisture


    Absolute Humidity

    Power from disposable battery


    Batteries can be replaced by user
    Battery quantity
    1pc
    Batteries included
    How is battery compartment kept closed
    Clip and Screw
    Size / Shape
    9V
    Compartment location
    Internal / In-built

    Product Dimensions


    Length
    170mm
    Width
    75mm
    Depth
    48mm

    Packaged Dimensions


    Packaged Length
    23.4cm
    Packaged Width
    14.7cm
    Packaged Weight
    0.586kg
    Packaged Volume
    2.06388l
    Packaged Height
    6cm

    Product Availability


    Availability
    Stocked item
    Warranty: 9999 Months
    Special terms or exclusions: Lifetime Warranty
