CAT. No. QM3856

Wireless 4.3” Long Range Reversing Camera Kit
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

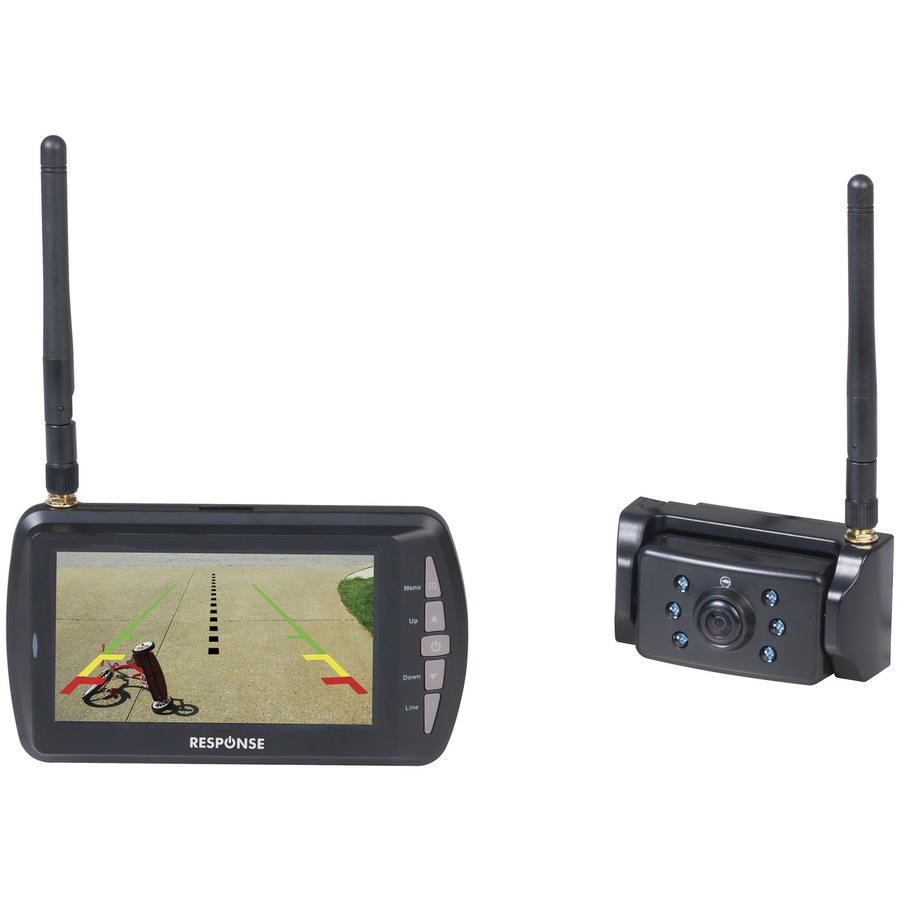

Wireless 4.3” Long Range Reversing Camera Kit

$369
Confidently manoeuvre your caravan, truck, 4WD or trailer with this wireless camera kit.

Out of Stock

Description

1 Year Warranty
2.4 GHz

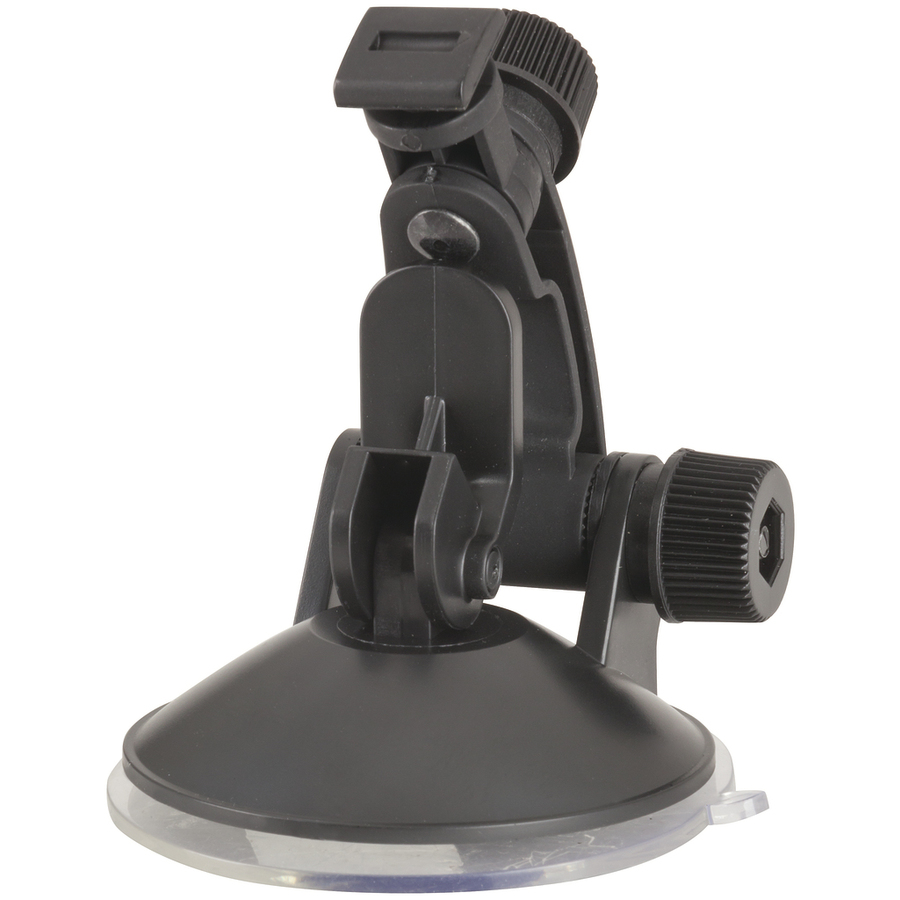

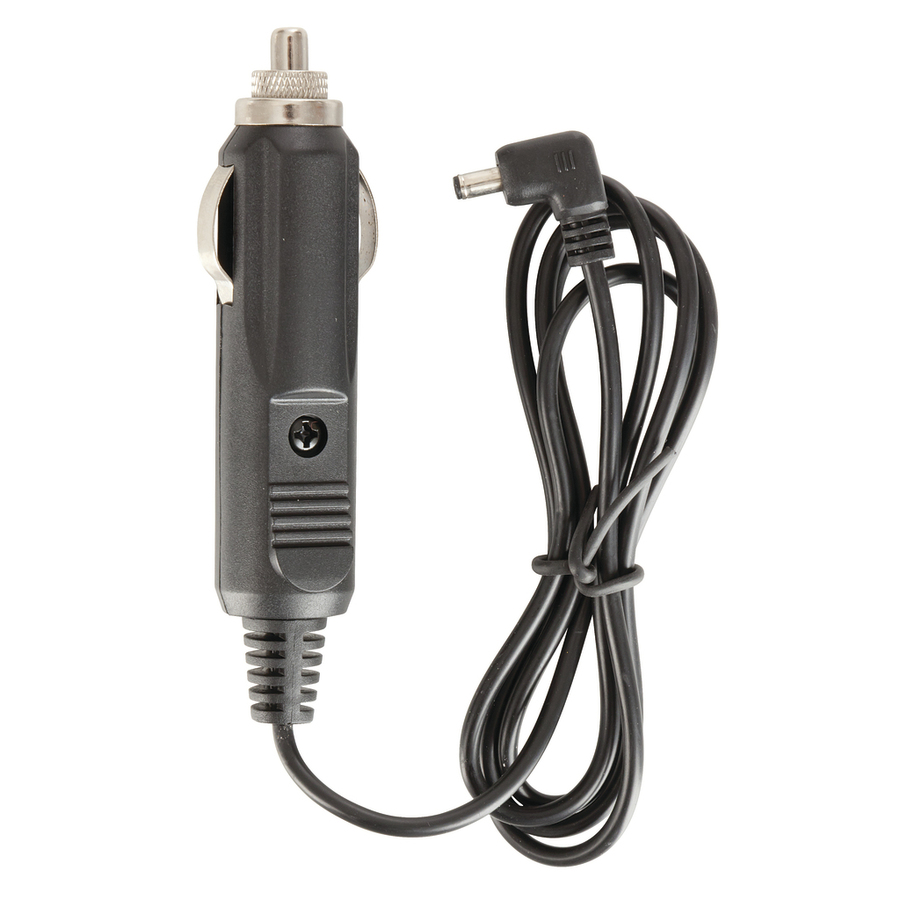

Confidently manoeuvre your caravan, truck, 4WD or trailer and avoid unseen or unexpected obstacles when reversing with this wireless camera kit. The 4.3” colour display and camera features signal stabilisation and processing for high speed observation of up to 100m range as standard reversing cameras will not provide enough distance to reach a caravan, truck or trailer. Prior to travelling, securely affix the camera in place and plug the monitor into your vehicle’s 12V auxiliary power outlet, then pair them to adjust the camera to the preferred angle. You can pair up to two cameras with an additional camera (QM-3857) being placed on your car or 4WD and one on your caravan or trailer to have a dual camera display or be viewed individually. The camera features infrared night vision, adjustable angle and waterproof housing to ensure it will cope in the harshest weather conditions. Includes suction cup mount and cigarette lighter plug power for the monitor.

Features:
. Dual Camera Display
. On-Screen Backup Guideline
. 2.4GHz Digital Wireless Technology
. 12/24VDC Operation
. 100m Transmission Range
. Infrared Night Vision

Specifications:

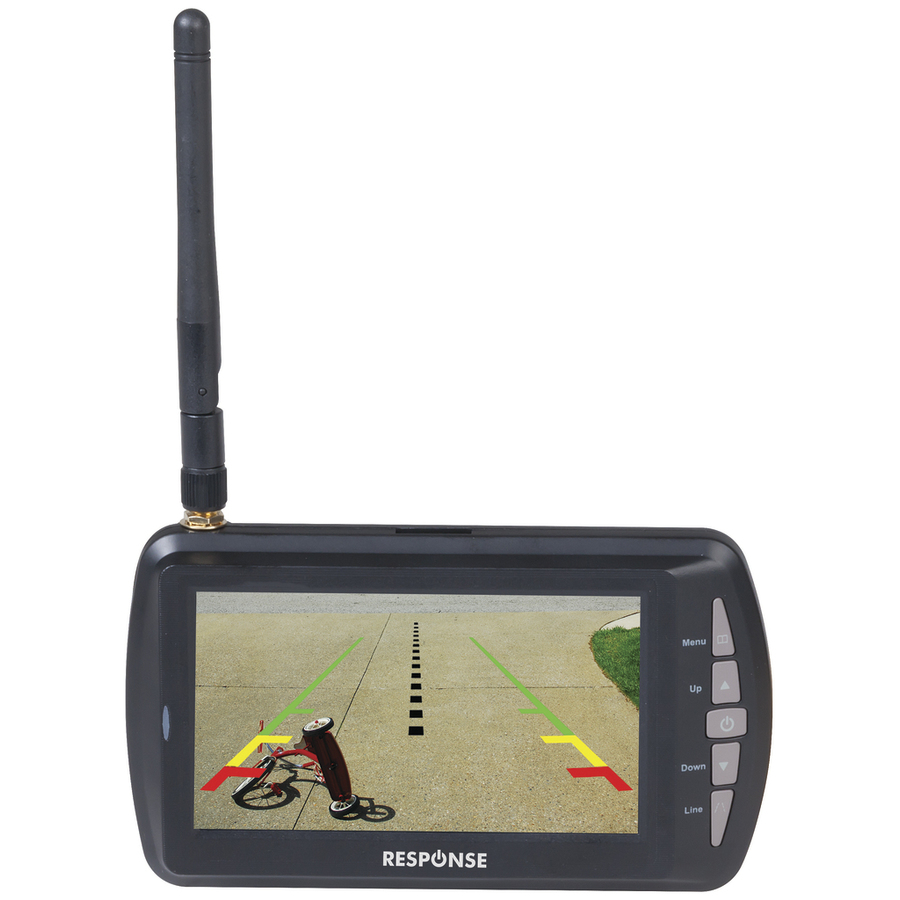

Monitor:
Frequency: 2.4GHz Digital
LCD: 4.3”
Resolution: 480 x 272
Range: Up to 100m
Antenna: 3dBi
Voltage Input: 8-30VDC
Current Consumption: Up to 250mA

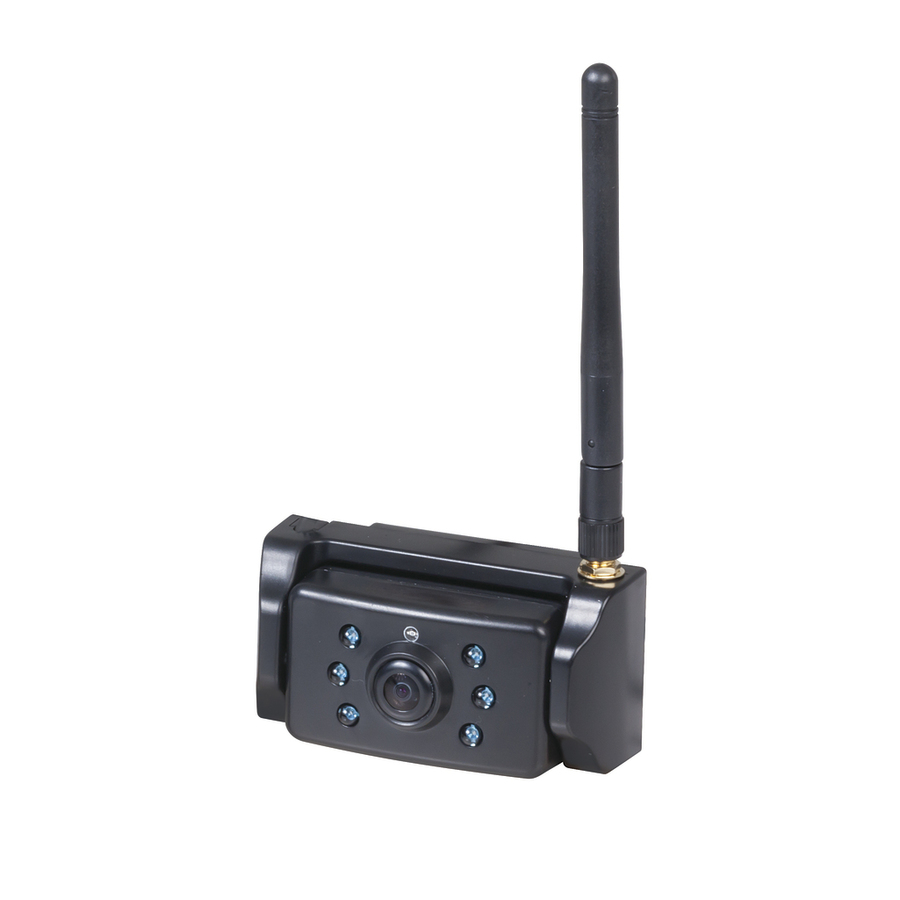

Camera:
Frequency: 2.4GHz Digital
Resolution: 720 x 480
Image Sensor: 1/3” CMOS
Lens Angle: 110°
Infrared LEDs: 6
Antenna: 3dBi
IP Rating: IP65
Voltage Input: 8-30VDC
Current Consumption: Up to 350mA

    Specifications

    Product Dimensions


    Length
    140mm
    Height
    21mm, 42mm
    Width
    87mm, 84mm

    Additional Dimensions


    Height
    21mm, 42mm
    Dimensions details
    Camera
    Width
    87mm, 84mm
    Depth
    36mm

    Ingress Protection Rating


    IP Rating
    65

    Reversing Cameras & Monitors


    Camera View Angle
    110°
    Number of IR LEDs
    6pc
    General Type
    rearview camera
    Cameras Included
    1pc
    Camera Sensor Size
    1/3"
    Range
    100m
    Camera Sensor Type
    cmos
    Maximum Cameras
    2ch

    Vehicle or Vessel Powered


    Current Draw
    250A
    Required Voltage
    8V
    Vehicle Connection
    Cigarette Lighter
    Item Connection
    Hard Wired
    Lead Included

    Wireless Transmission


    Transmission range
    100m
    Transmission frequency
    2.4GHz

    Display Screen


    Diagonal Screen Size
    4.3in
    Screen Type
    Flat Panel Screen (LCD)

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    26.3cm
    Packaged Width
    25.7cm
    Packaged Weight
    0.63kg
    Packaged Volume
    4.25823l
    Packaged Height
    6.3cm
    Warranty: 12 Months
