Spare Wireless Camera to suit QM-3856
Spare Wireless Camera to suit QM-3856
Spare Wireless Camera to suit QM-3856

CAT. No. QM3857

Spare Wireless Camera to suit QM-3856
product image thumb
product image thumb

Spare Wireless Camera to suit QM-3856

$209
Pair up to two cameras on the monitor.

Out of Stock

Description

1 Year Warranty
Wireless
2.4 GHz

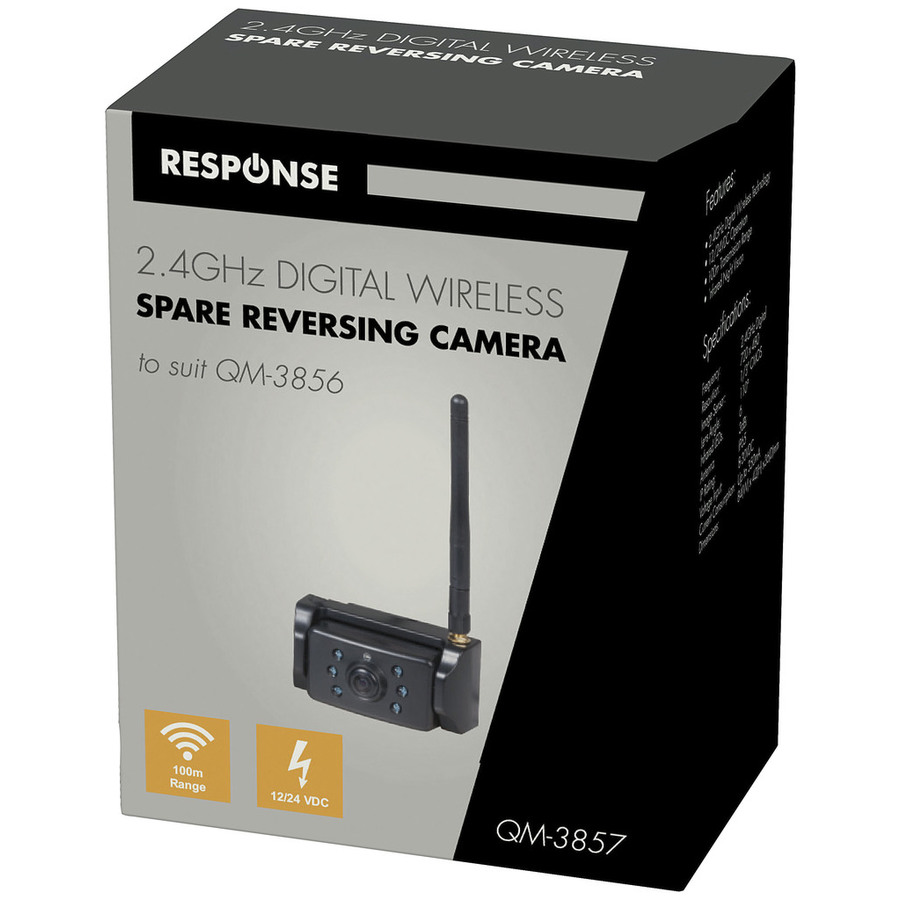

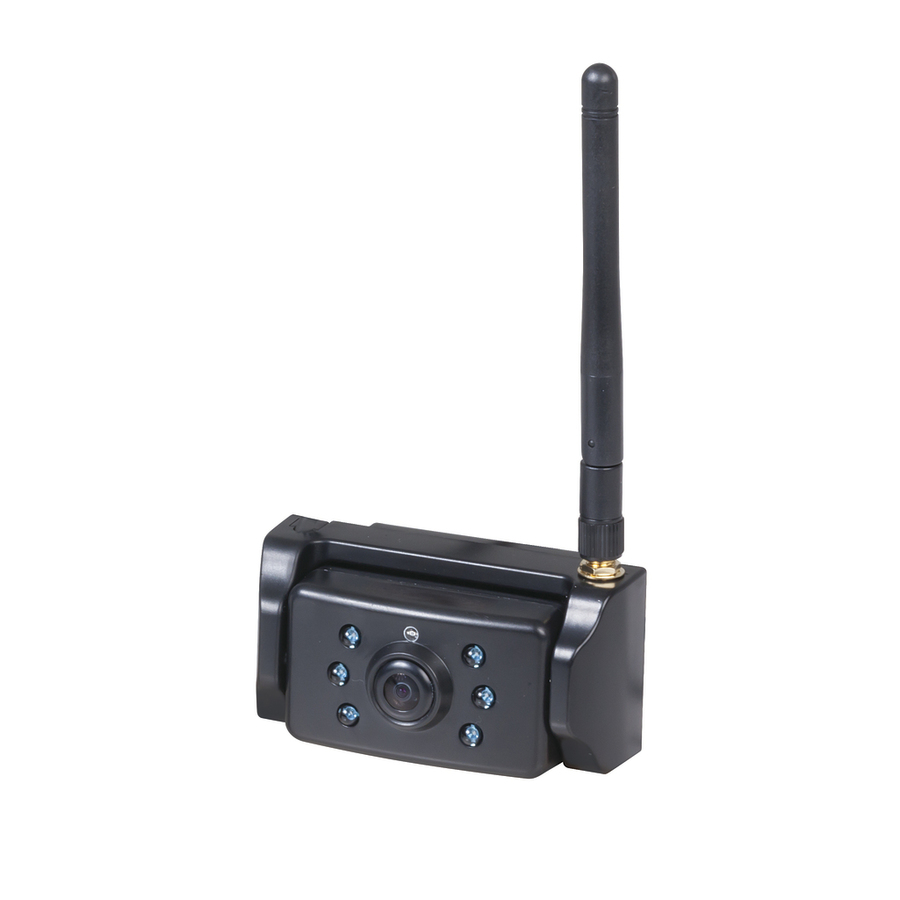

Spare 2.4GHz digital camera to suit QM-3856 long range reversing camera kit. You can pair up to two cameras on the monitor with this additional camera being placed on your car or 4WD and one on your caravan or trailer to have a dual camera display or be viewed individually. The camera features infrared night vision, adjustable angle and waterproof housing to ensure it will cope in the harshest weather conditions. Camera is supplied with a 3dBi antenna.

    Specifications

    Product Dimensions

    Height
    		 42mm
    Width
    		 84mm
    Depth
    		 36mm

    Video Resolution

    Maximum Vertical Resolution
    		 480Pixel
    Maximum Horizontal Resolution
    		 720Pixel
    Supported Display Resolution
    		 480p (640 x 480)

    Product Mounting

    Attachment / Securing Method
    		 Integrated Bracket
    Mounting Method
    		 Self Adhesive

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Reversing Cameras & Monitors

    Camera View Angle
    		 110°
    Number of IR LEDs
    		 6pc
    General Type
    		 rearview camera
    Cameras Included
    		 1pc
    Camera Sensor Size
    		 1/3"
    Bulit-in IR LEDs
    Range
    		 50m
    Camera Sensor Type
    		 cmos

    Vehicle or Vessel Powered

    Current Draw
    		 350mA
    Required Voltage
    		 8V-30V
    Vehicle Connection
    		 Hard Wired
    Item Connection
    		 Hard Wired

    Wireless Transmission

    Transmitter Antenna Style
    		 Dipole
    Transmission frequency
    		 2.4MHz
    Transmission standard
    		 2.4GHz Digital

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 15.4cm
    Packaged Width
    		 9.6cm
    Packaged Weight
    		 0.222kg
    Packaged Volume
    		 0.931392l
    Packaged Height
    		 6.3cm
    Warranty: 12 Months

    Downloads

    QM3857-manualMain.pdf
