CAT. No. QM3880

7" TFT LCD Widescreen Colour Monitor
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

7" TFT LCD Widescreen Colour Monitor

$129
Stimulate your senses with this 7 TFT Widescreen LCD Monitor. It will deliver high resolution pictures in widescreen format.

Out of Stock

Description

Stimulate your senses with this 7-inch TFT Widescreen LCD Monitor. It is extremely lightweight and is suitable for all sorts of mobile and fixed monitoring applications. Suitable for in-car and home entertainment, use it to watch video from any composite source such as a DVD player or game console. It is also suitable for use as a surveillance system monitor.

Two RCA composite video inputs are provided for a multi-source system. This is truly a versatile monitor; it has low power consumption, a wide viewing angle, and is NTSC and PAL compatible. It has mirror-image capability, adjustable by pressing a button, making it ideal for buses with a camera to view behind while reversing.

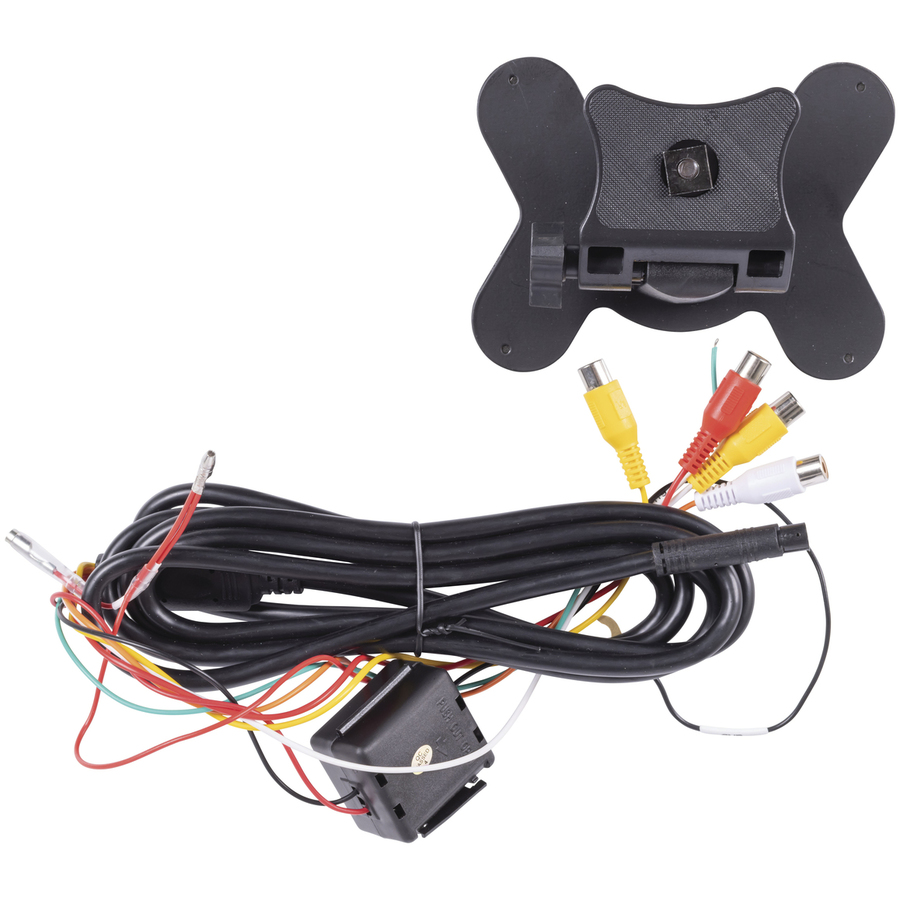

The unit comes with an adjustable swivel bracket with double-sided tape for adhesion on clean flat surfaces. A 4 pin mini din to 2 RCA and power cable are also supplied.

Features:

• System - NTSC/PAL
• Power Input - 12VDC
• Power Consumption - 10W
• Video Input - Composite Video Signal 1Vpp 75 Ohm
• Operating Temperature: -10 degrees to + 60 degrees
• Screen Size - 7 (diagonal width)
• Screen resolution 800 x 480
• Display Method - TFT Active Matrix System


    Specifications

    Display Screen


    Diagonal Screen Size
    7in
    Colours Displayed
    Full Colour
    Video system
    PAL Video
    LCD Screen Technology
    Thin Film Transistor (TFT)
    Horizontal Screen Resolution
    800Pixel
    Vertical Screen Resolution
    480Pixel
    Screen Type
    Flat Panel Screen (LCD)

    Vehicle Mounting


    Removable
    Bolt on/off
    Mount Location
    Dash

    Reversing Cameras & Monitors


    Maximum Cameras
    2ch

    Vehicle or Vessel Powered


    Required Voltage
    12V
    Vehicle Connection
    Bare Leads

    Operating Temperature


    Operating Temperature
    10°C-60°C

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    30.7cm
    Packaged Width
    22.5cm
    Packaged Weight
    0.868kg
    Packaged Volume
    4.83525l
    Packaged Height
    7cm

    Product Dimensions


    Height
    130mm
    Width
    195mm
    Weight
    800g
