CAT. No. QM3882

Wired Reversing Camera Kit with 7" LCD Screen
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

Wired Reversing Camera Kit with 7" LCD Screen

$309
This unit enables you to monitor the area to the rear of a bus, truck, caravan, RV etc, view a much wider field-of-view than any rear view mirror.
Available

Description

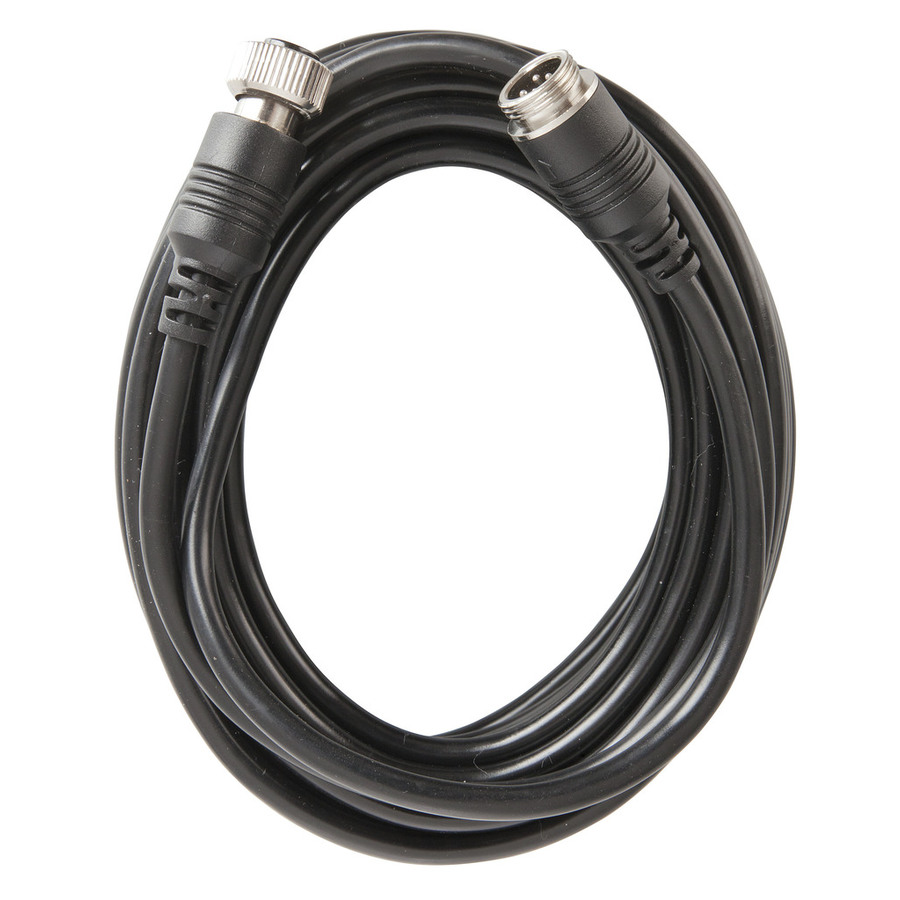

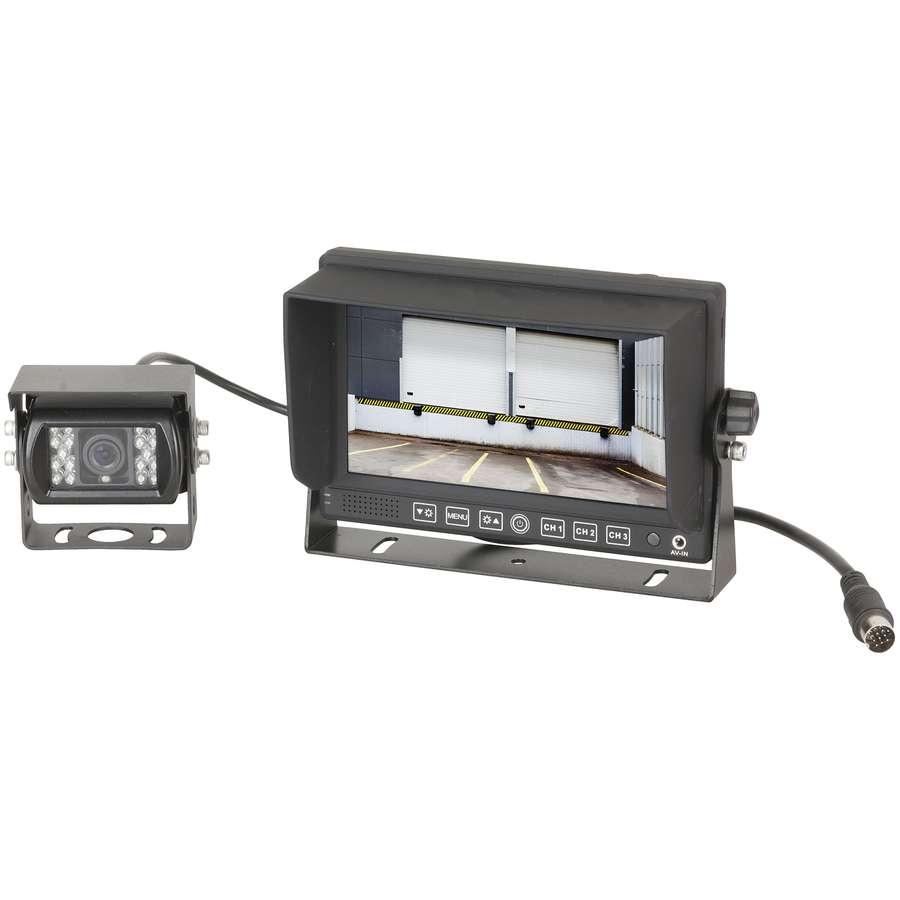

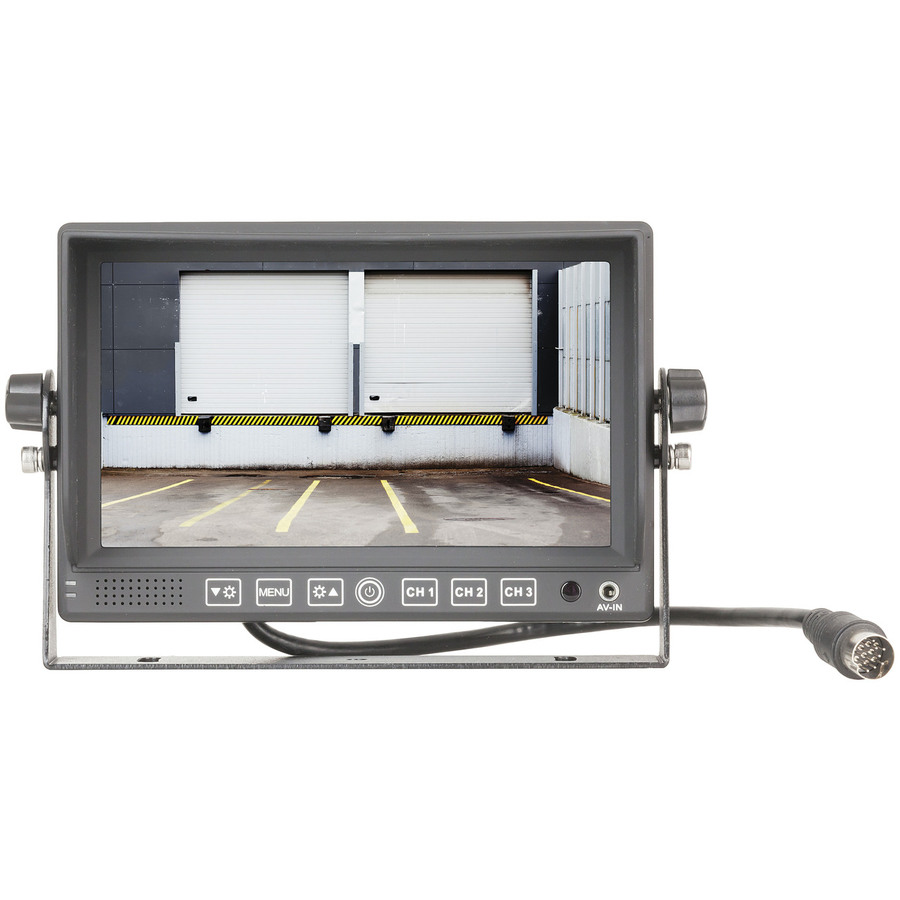

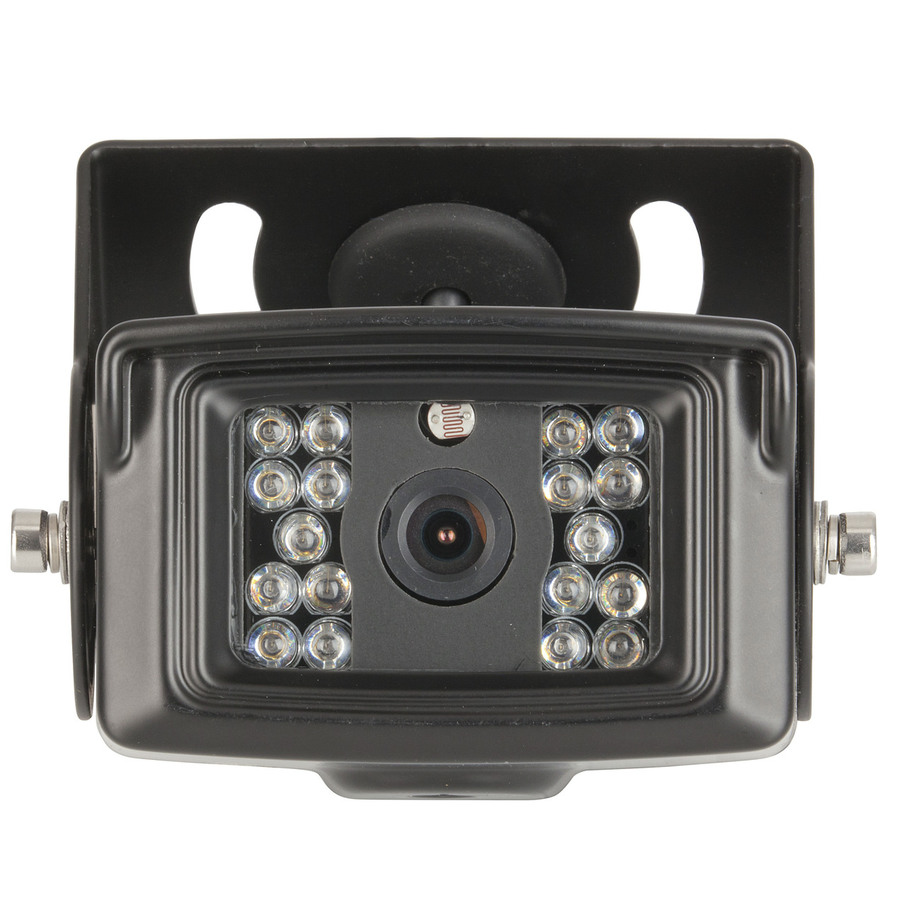

This unit enables you to monitor the area to the rear of a bus, truck, caravan, or RV. It has a much wider field-of-view than any rear-view mirror array and works in the dark with IR lighting. The system comes with a 7" (diagonal) LED display that has two video inputs, so you could (for example) have another camera monitoring, say, bus passengers (camera extra). The rear vision camera is fitted with a SHARP (Japan) CCD device with 18 x IR LED's for night vision illumination. The housing of the camera is metal, IP65 rated, and has a gymbal bracket. It can be mounted externally. The kit is supplied with 5m of preterminated connecting cable.

In keeping with the professional status of the product, it will work from 12 or 24VDC.


    Specifications

    Additional Dimensions


    Dimension for
    Camera
    Height
    48mm, 120mm
    Width
    74mm, 178mm
    Depth
    65mm, 28mm

    Display Screen


    Diagonal Screen Size
    7in
    Screen Brightness
    250cd/m²
    Screen Resolution Standard
    720p (1280 x 720)
    Screen Backlit
    LED Backlit
    Screen Type
    Flat Panel Screen (LCD)
    Aspect Ratio
    16:9

    Vehicle Mounting


    Removable
    Bolt on/off

    Ingress Protection Rating


    IP Rating
    IP65
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    5 - Water jets

    Reversing Cameras & Monitors


    Number of IR LEDs
    18pc
    General Type
    rearview camera
    Cameras Included
    1pc

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    25cm
    Packaged Width
    18.5cm
    Packaged Weight
    1.872kg
    Packaged Volume
    6.1975l
    Packaged Height
    13.4cm

    Product Dimensions


    Height
    48mm, 120mm
    Width
    74mm, 178mm
    Depth
    65mm, 28mm
    Warranty: 12 Months

    Downloads
