CAT. No. QM7430

Pro High Temperature Non-Contact Thermometer with K-Type Probe Support and USB
product image thumb
product image thumb
product image thumb

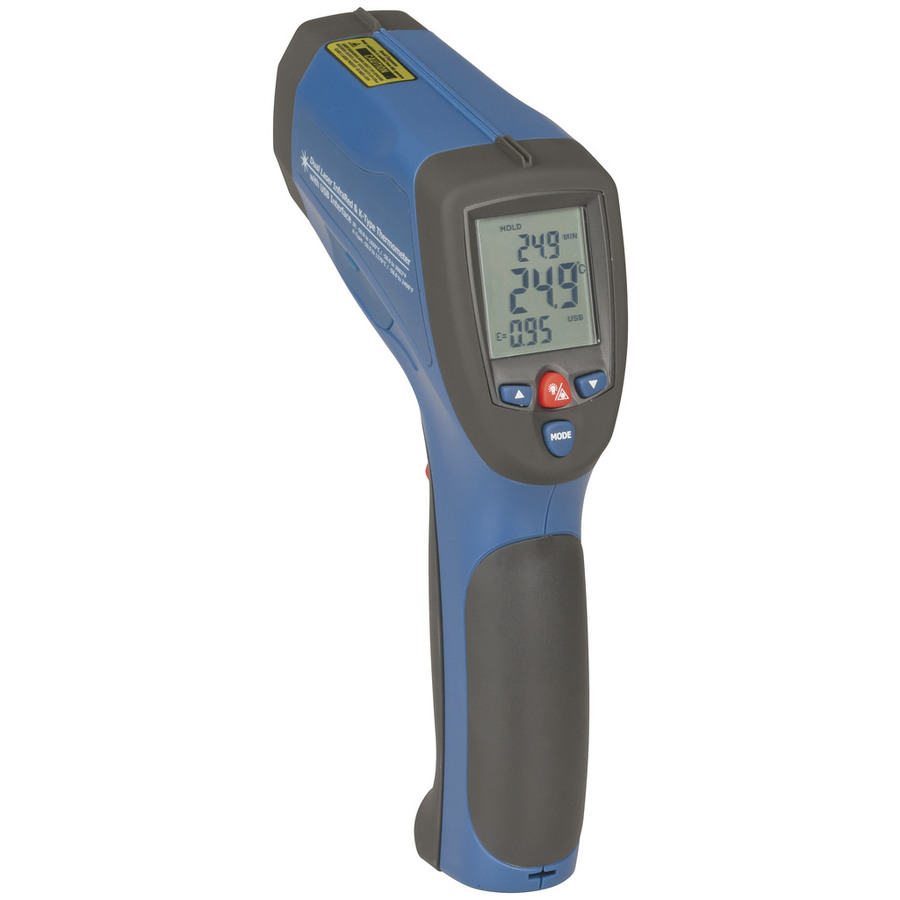

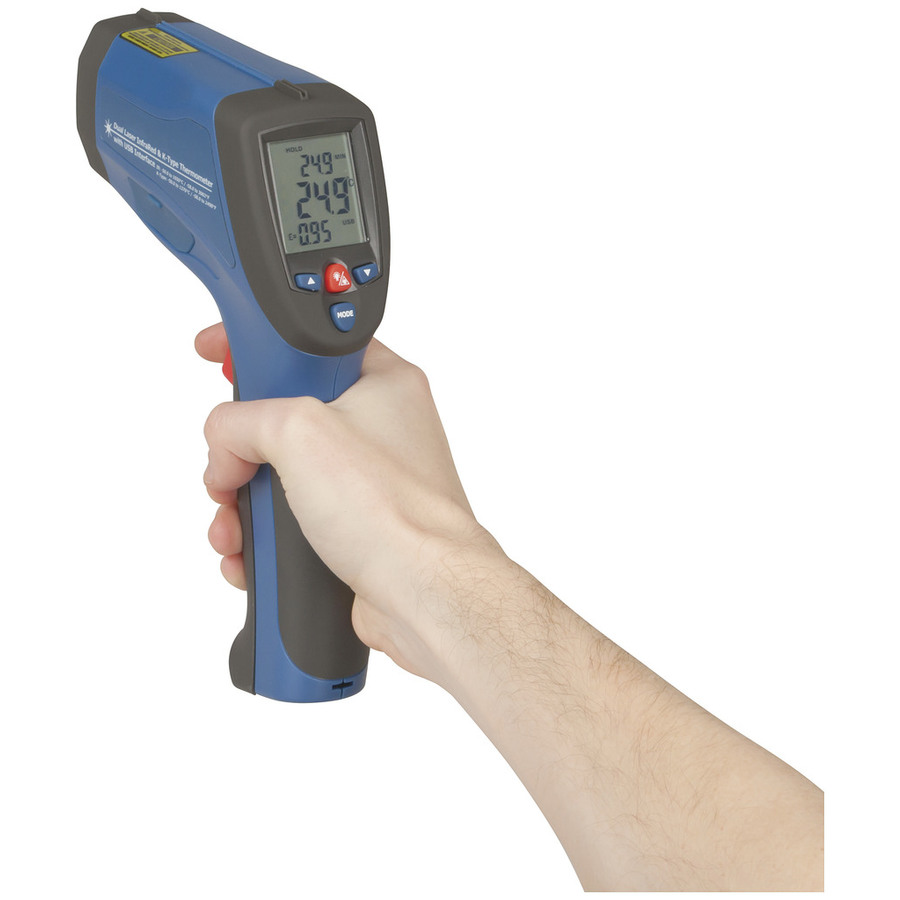

Pro High Temperature Non-Contact Thermometer with K-Type Probe Support and USB

$299
Measure temperatures from -50°C up to 1650°C in hard to reach places - Two Built-in Lasers - Accurate and Repeatable Measurements - Carry Case
Available

Description

Batteries Included

A professional non-contact thermometer with dual laser pointers to provide fast, easy and accurate readings of most surface temperatures between -50°C to 1650°C! The impressive 30:1 distance to spot ratio measures smaller surface areas at greater distances, with a 1% accuracy and a rapid 150ms sampling time. Features include automatic data hold & trigger lock, min, max, difference, average temperature displays, high/low alarms, and digitally adjustable emissivity (0.1 to 1.0) for more accurate readings of different materials. Provision for a K-Type thermocouple (supplied) enables you to take direct measurements up to 1370°C, and a USB port lets you transmit the data to a PC for further analysis. Supplied with a tripod, K-type probe, USB cable and carry case.

Features:
- Rapid detection function
- Built-in dual laser pointer
- 30:1 Distance to spot ratio
- Automatic Data Hold
- Emissivity Digitally adjustable from 0.10 to 1.0
- MAX, MIN, AVG, DIF temperature displays
- Backlight LCD display
- Trigger lock
- Set high and low alarm
- USB Interface
- Class 2 laser product

Specifications:
Response Time: 150ms
Spectral Response: 8~14um
Over Range Indication: LCD will show “----”
Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity

IR Measurement:
IR Temp. Range: -50 to 1650°C
Distance to Spot Ratio 30:1
Resolution: 0.1°C<1000; 1°C>1000
Basic Accuracy: +/- 1%
Repeatability: -50 to 20°C ± 1.5°C, 20 to 1650°C ± 0.5%

Thermocouple:
Temp. Range: -50 to 1370°C
Resolution: 0.1°C<1000; 1°C > 1000
Basic Accuracy: +/- 1.5%
Repeatability: -50 to 1370°C ± 1.5%


    Specifications

    Measures Temperature


    Thermometer Resolution
    0.1°C
    Fahrenheit Accuracy
    5.40000000%
    Measures in Celcius
    Indoor / Interior Scale
    -58°F-3002°F, -50°C-1650°C
    Celcius Accuracy
    3%
    Measures in Fahrenheit

    Sensor Temperature Probe


    Sensor Type
    K-Type Thermocouple

    Optical Temperature Sensor


    Emissivity
    0.1&nbsp;-1&nbsp;

    Meter Display


    Display Backlight
    LED Backlit
    Display Type
    LCD

    Power from disposable battery


    Type
    Alkaline
    Battery used for
    Main Product
    Batteries can be replaced by user
    Battery quantity
    1pc
    Batteries included
    Size / Shape
    9V

    Meter


    Carry Case Included

    Laser


    Colour of Laser
    Red
    Max Laser Power
    1mW

    Lighting Details


    Colour wavelength
    630nm-670nm

    Product Dimensions


    Length
    204mm
    Width
    155mm
    Depth
    53mm
    Weight
    330g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    30.7cm
    Packaged Width
    23.8cm
    Packaged Weight
    1.13kg
    Packaged Volume
    5.918346l
    Packaged Height
    8.1cm
