IP66 Inline RCD Circuit Breaker 1.8m
IP66 Inline RCD Circuit Breaker 1.8m
IP66 Inline RCD Circuit Breaker 1.8m

CAT. No. QP2006

IP66 Inline RCD Circuit Breaker 1.8m
product image thumb
product image thumb

IP66 Inline RCD Circuit Breaker 1.8m

$54.95
Protect yourself at home or the worksite with this handy inline RCD circuit breaker.

Out of Stock

Description

1 Year Warranty
240V Mains Power

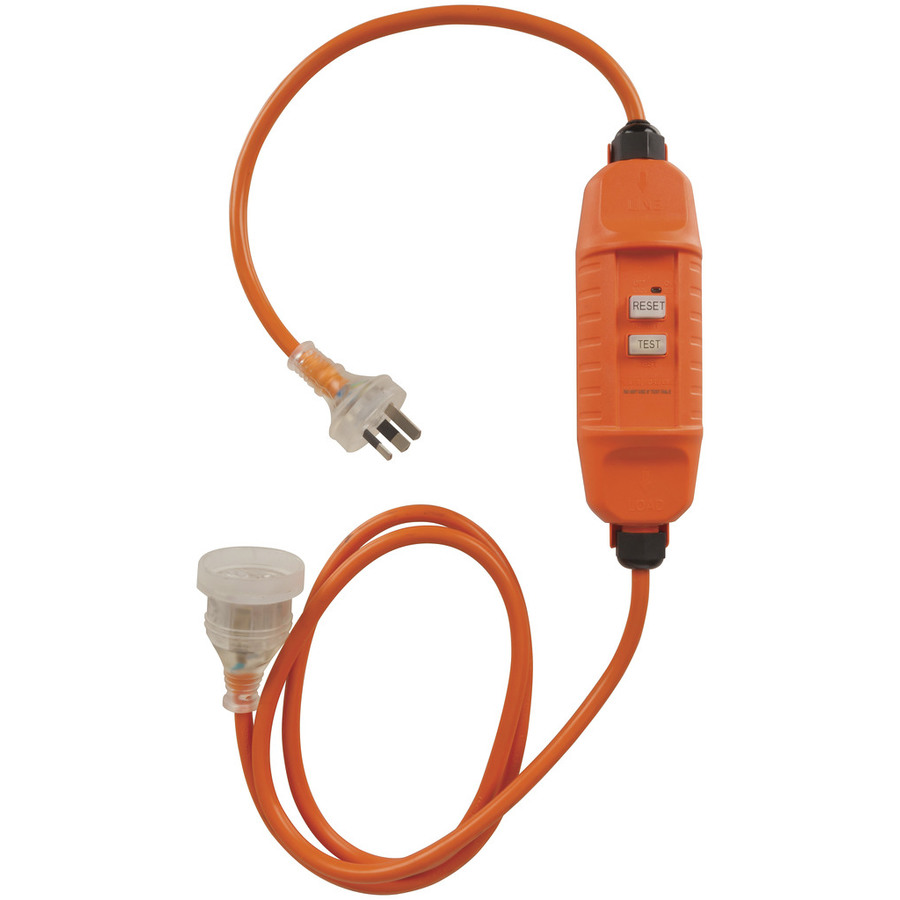

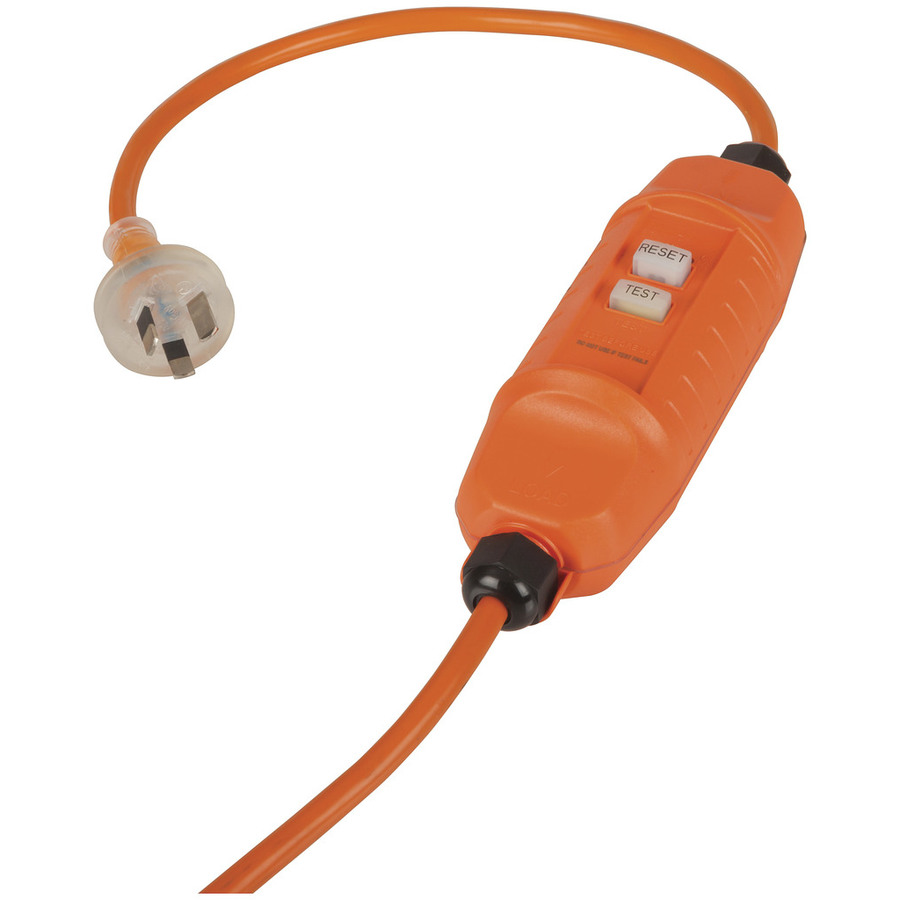

Protect yourself at home or the worksite with this handy inline RCD circuit breaker with 1.8m lead. The built-in Residual Current Device (RCD) provides the best method to protect against electrocution and equipment damage. Faster acting and improved safety compared with standard over-current circuit breakers. It has an IP66 rain and dustproof rating, and includes test and reset buttons. Meets Australian and New Zealand safety approvals.

Features:
- Automatically shuts off power when a fault occurs
- IP66 rain and dustproof rating
- Durable

RCD Specifications:
Residual Non-Operating Current: 15mA
Residual Operating Current: 30mA
Max. Tripping: ≤0.1S
IP Rating: IP66
Length: 1.8m

    Specifications

    Mains powered

    Mains Item connection
    		 Mains AU/NZ 3 Pin
    Frequency
    		 50Hz-60Hz
    Mains Voltage Range
    		 220V-240V
    Rated for AU Mains

    AC Current Rating

    AC current rating
    		 10A

    Power Protection Device

    RCD Operating Current
    		 30mA
    Type of Protection
    		 Residual current device (RCD)
    Protection Test Button
    RCD Non-operating Current
    		 15mA
    Reset Method
    		 Manual Pushbutton
    RCD Trip Time
    		 100ms

    Ingress Protection Rating

    IP Rating
    		 IP66
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 6 - Powerful water jets

    Product Dimensions

    Cable length
    		 1.8m

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 37.7cm
    Packaged Width
    		 23cm
    Packaged Weight
    		 0.68kg
    Packaged Volume
    		 5.80957l
    Packaged Height
    		 6.7cm
    Warranty: 12 Months
