3-30VDC Tester with VoltagePolarity Readout
3-30VDC Tester with VoltagePolarity Readout
3-30VDC Tester with VoltagePolarity Readout

CAT. No. QP2216

3-30VDC Tester with VoltagePolarity Readout
product image thumb
product image thumb

3-30VDC Tester with VoltagePolarity Readout

$30.95
Accurate voltage readout as well as polarity check.
Available

Description

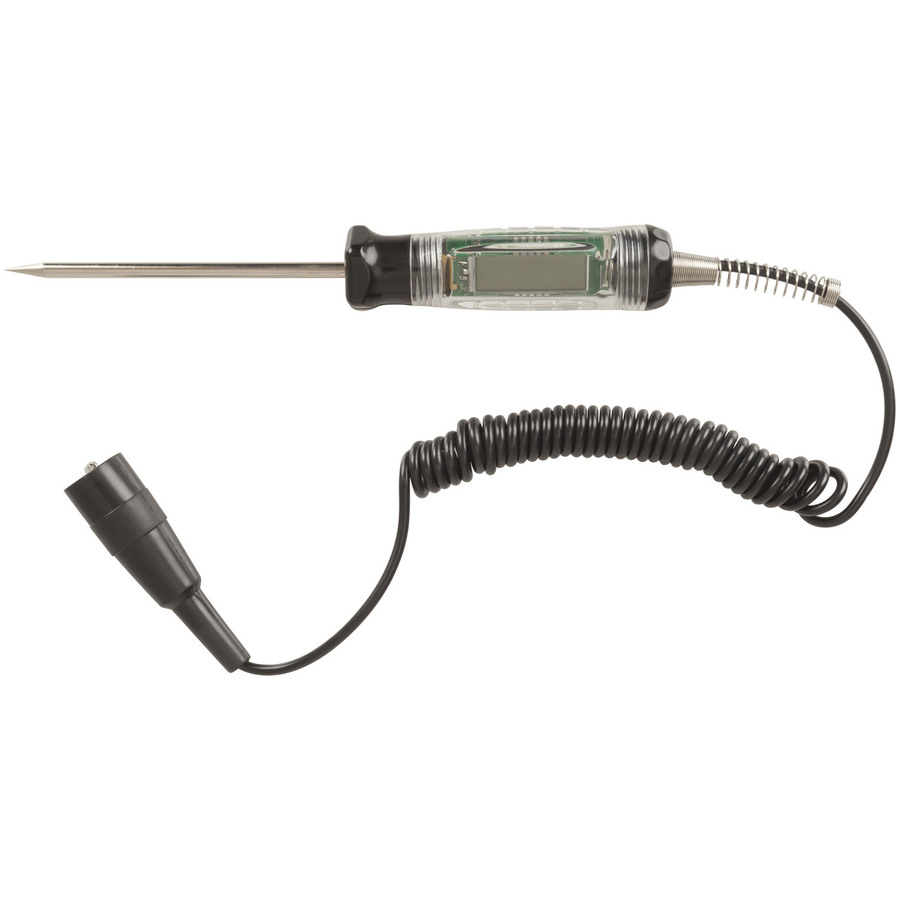

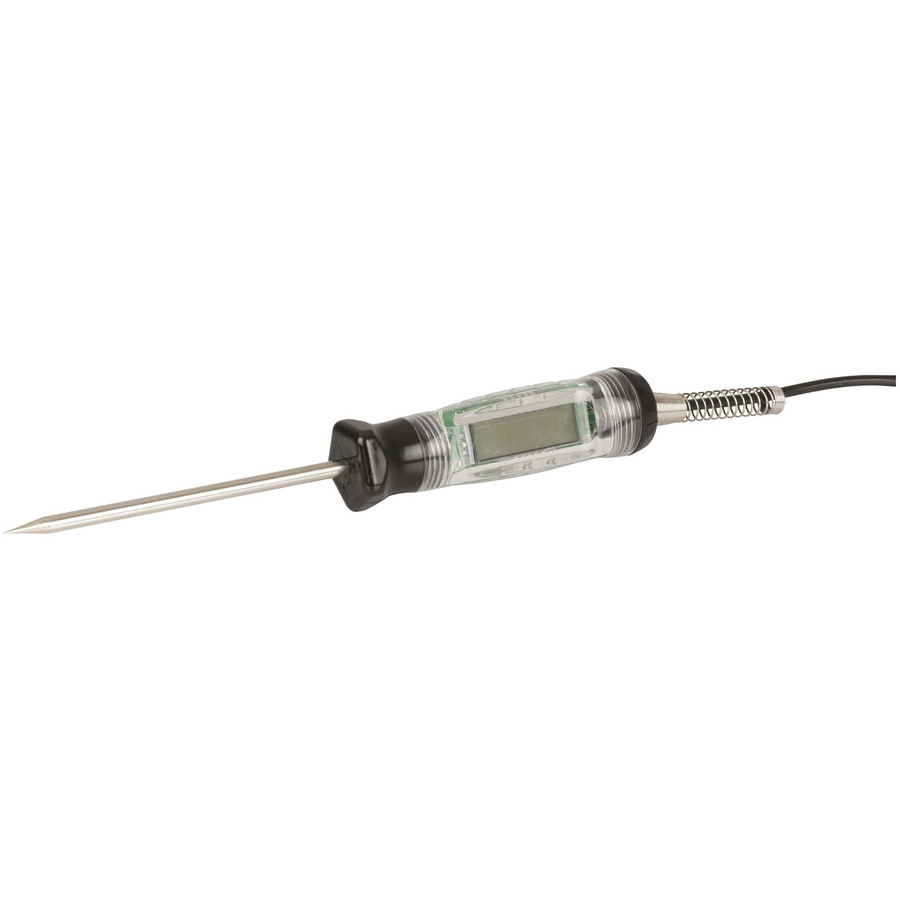

Provides useful debugging and testing in many systems, most notably vehicles, boats, motorbikes, and other 6-24V systems. It provides an accurate voltage readout as well as polarity check. It’s a more advanced version of a test-lamp used for decades in the automotive industry. Self powered from the test circuit.

Features:

- Tests powered-on circuits
- Works on 6V, 12V, and 24V systems
- Stainless steel testing probe
- LED Indicators: Green (-), Red (+)
- Operating Current: 12VDC < 70mA

    Specifications

    Product Dimensions

    Cable length
    		 50mm
    Width
    		 228mm
    Diameter
    		 30mm
    Weight
    		 125g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 30.1cm
    Packaged Width
    		 10.9cm
    Packaged Weight
    		 0.17kg
    Packaged Volume
    		 1.410787l
    Packaged Height
    		 4.3cm
