CAT. No. QP2320

20A 6.5-100V DC Power Meter with Built-In Shunt
product image thumb
product image thumb

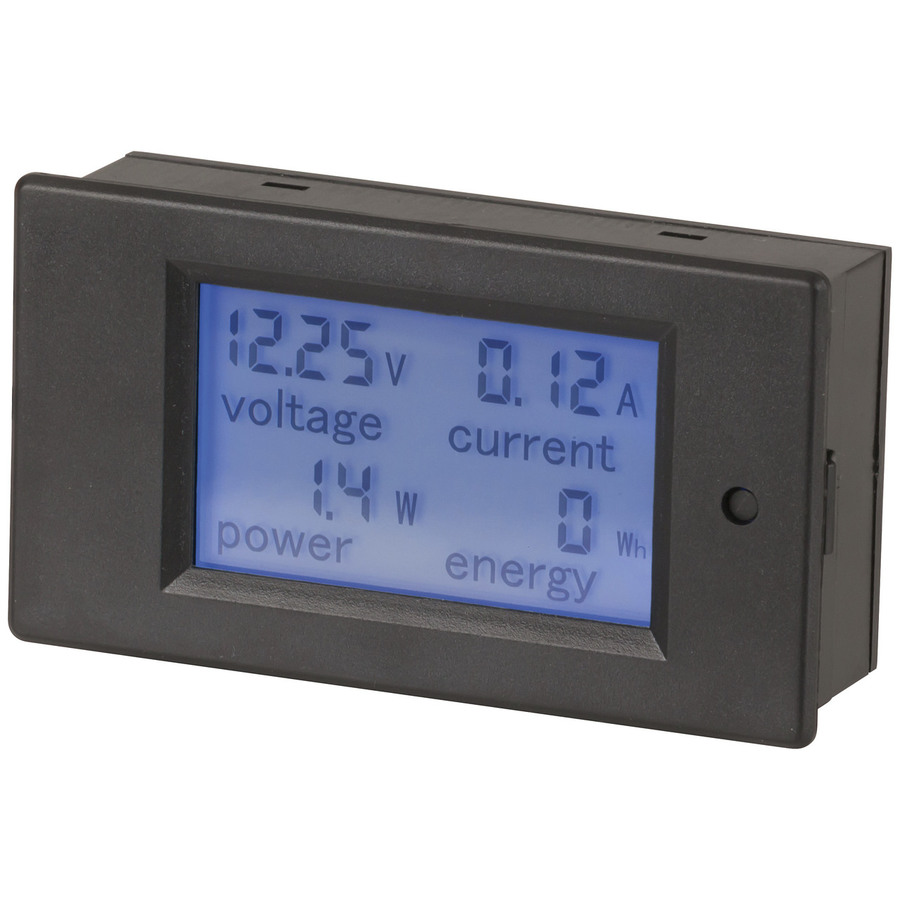

20A 6.5-100V DC Power Meter with Built-In Shunt

$34.95
Exceptionally handy for keeping an eye on your solar installation, generator, battery banks, and more
Available

Description

Exceptionally handy for keeping an eye on your solar installation, generator, battery banks, and more. Totally self-contained, so wiring is a breeze, and it’s powered form the DC power you’re monitoring. Suitable for solar systems up to approximately 2kW (must not exceed 20A). Provides details on power, voltage, and current, as well as aggregation of power throughput (which can mean generation or usage depending on your installation) with an easy reset function. Bright blue backlit display provides easy reading in any lighting conditions.

Features:
- Real time information
- Large backlit display
- Aggregated energy throughput

Power Consumption: 0.2W
Measurement speed: 2 times/s
For More info on Digital Multimeters.

    Specifications

    Measures Current DC


    DC Current Accuracy
    1%%
    Current DC Measuring Range
    0A

    Measures Power


    Accuracy
    1%
    Power Consumption Ranges
    9999kWh
    Instantaneous Power Ranges
    2kW

    Measures Voltage DC


    DC Volts Measurement Range
    6.5V-100V
    DC Voltage Accuracy
    1%%

    Product Dimensions


    Height
    50mm
    Width
    90mm
    Depth
    25mm
    Weight
    62g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    15cm
    Packaged Width
    8.1cm
    Packaged Weight
    0.086kg
    Packaged Volume
    0.3888l
    Packaged Height
    3.2cm
