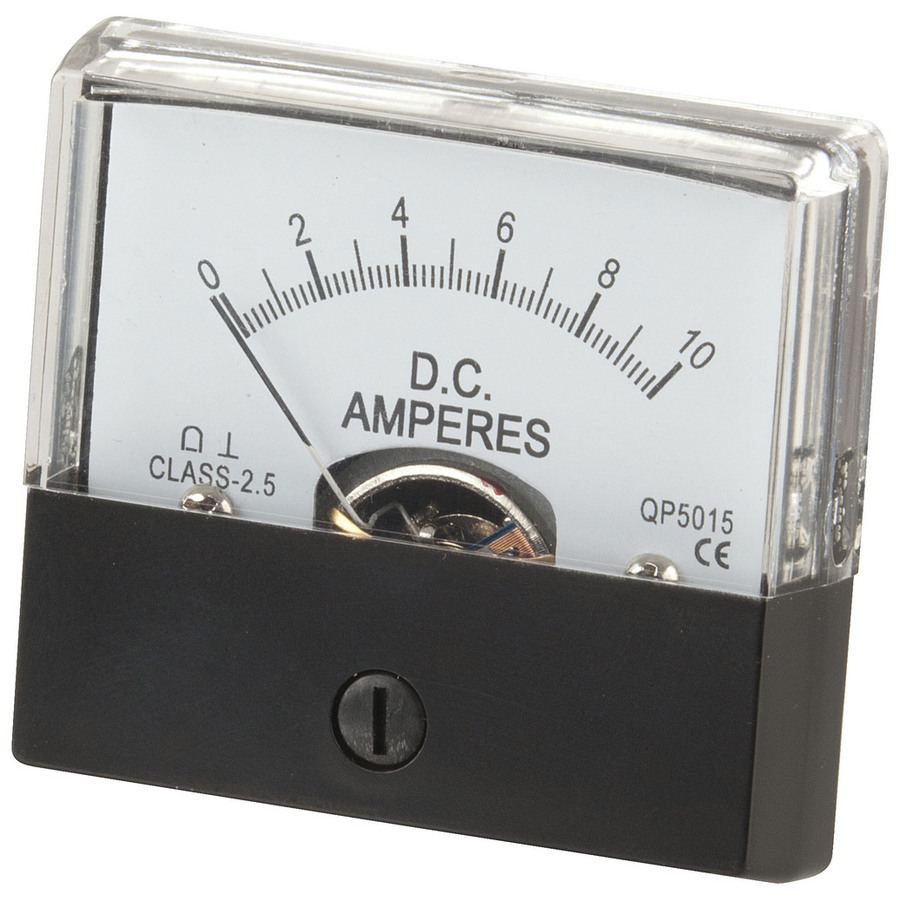

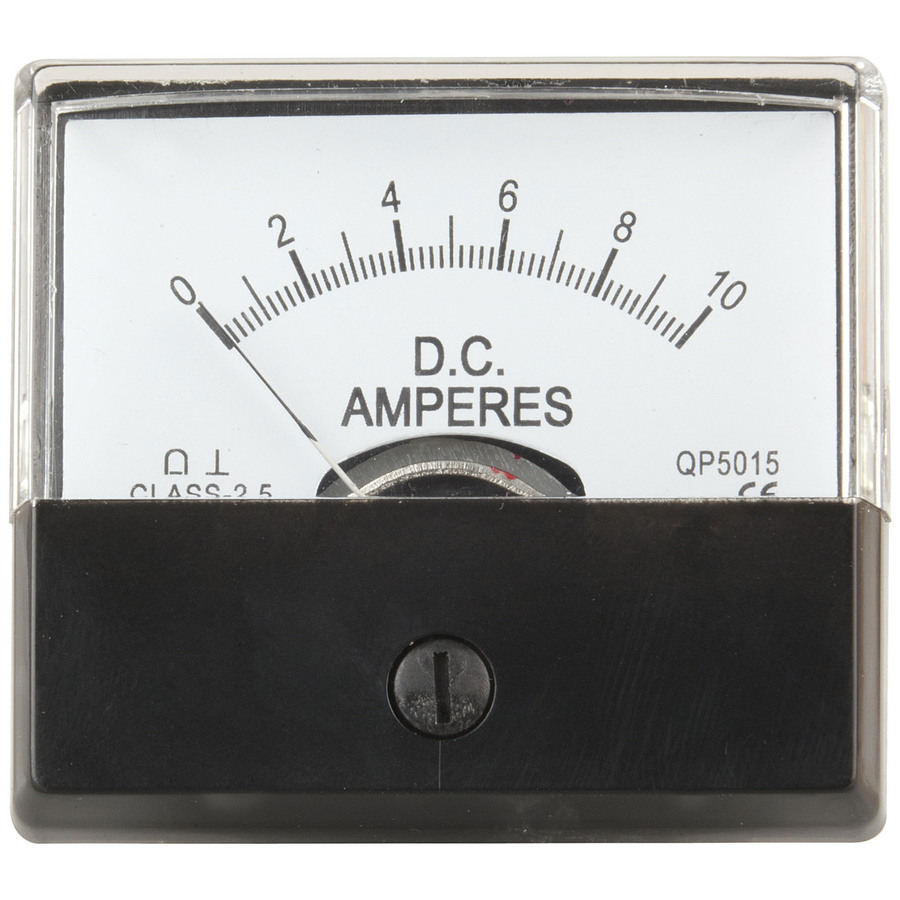

0 - 10A MU45 Panel Meter - Moving Coil Type
0 - 10A MU45 Panel Meter - Moving Coil Type
0 - 10A MU45 Panel Meter - Moving Coil Type

CAT. No. QP5015

0 - 10A MU45 Panel Meter - Moving Coil Type
product image thumb
product image thumb

0 - 10A MU45 Panel Meter - Moving Coil Type

$17.95
Overall size: 58(W) x 52(H)mm.- Mounting hole centre 38 x 38mm.- 44mm meter hole.- Nuts and washers supplied.Coil Resistance Current0.005 ohm 0- 10A...

Out of Stock

Description

Nuts and washers supplied.

    Specifications

    Measures Current DC

    Current DC Measuring Range
    		 0A-10A

    Product Mounting

    Overall Screw Spacing (H)
    		 38mm
    Overall Screw Spacing (V)
    		 38mm
    Mount Screw Quantity
    		 4pc
    Round Mount Hole Diameter
    		 45mm
    Mounting Method
    		 Panel

    Resistance Rating

    Resistance level
    		 0.005?

    Product Dimensions

    Height
    		 52mm
    Width
    		 58mm

    Packaged Dimensions

    Packaged Length
    		 6.8cm
    Packaged Width
    		 6.8cm
    Packaged Weight
    		 0.08kg
    Packaged Volume
    		 0.240448l
    Packaged Height
    		 5.2cm
