CAT. No. QP5582

PanelSurface Mount LED Voltmeter 5-30VDC
product image thumb
product image thumb
product image thumb
product image thumb

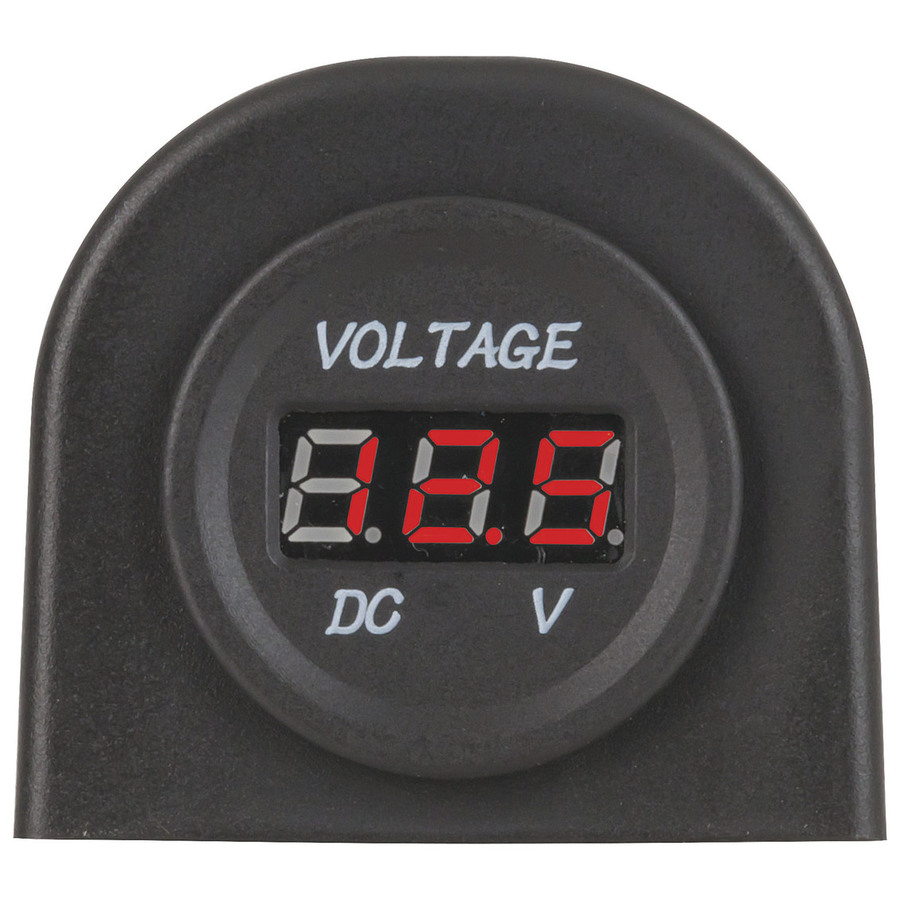

PanelSurface Mount LED Voltmeter 5-30VDC

$29.95
Versatile module for monitoring electrical conditions in your car, 4WD, or boat - Single 5-30VDC voltmeter - Multiple mounts included - Additional versions also available
Available

Description

Quite possibly the easiest way to monitor your battery voltage, or the voltage in any DC powered system. Simply wire up to a positive and negative DC power source of 5-30VDC, and the voltmeter tells you the voltage (taking power from the DC source to operate).

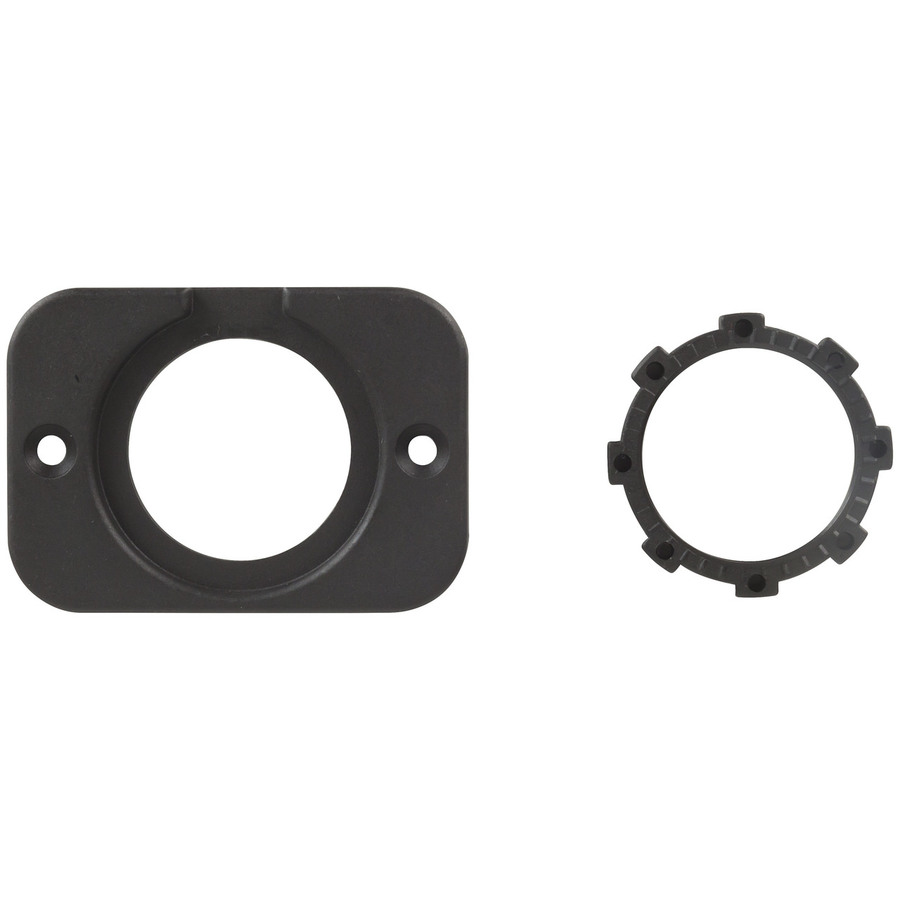

• Supplied with brackets for panel or surface mounting

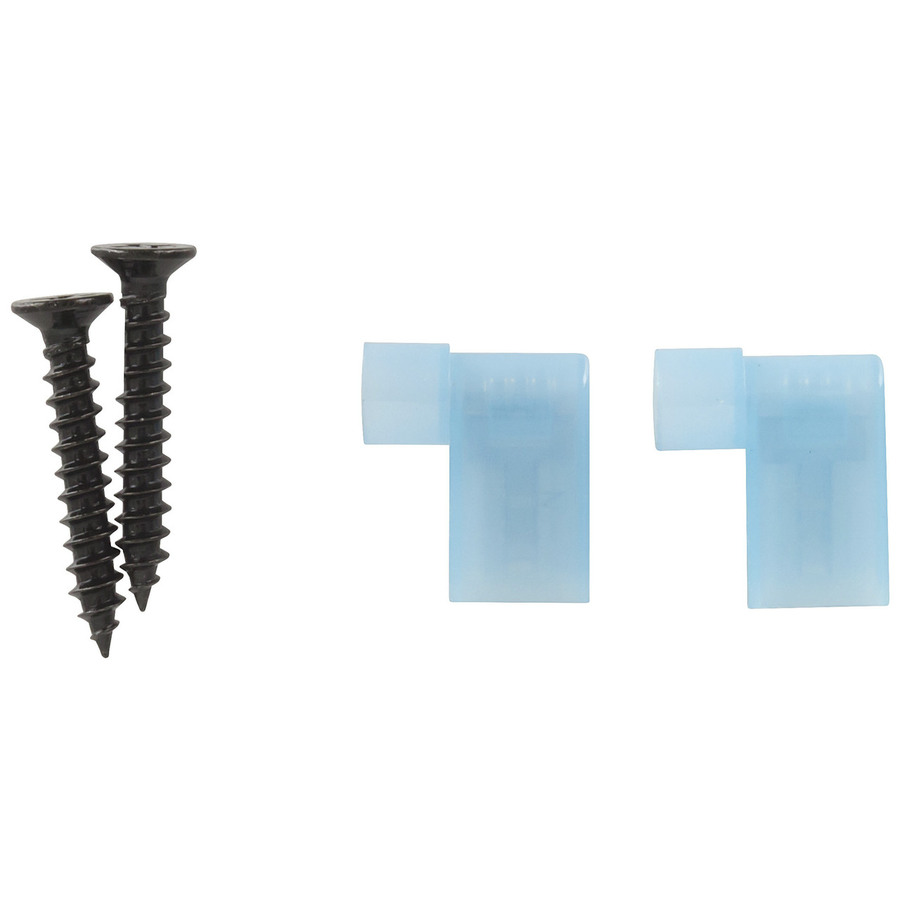

• Connection is via 6.3mm spade terminals
• Also available with additional modules


    Specifications

    Measures Voltage DC

    DC Volts Measurement Range
    		 5V-30V

    Product Mounting

    Square Mount Hole Width
    		 60mm
    Attachment / Securing Method
    		 Collar / Nut
    Mounting Method
    		 Panel
    Square Mount Hole Height
    		 42mm

    Product Dimensions

    Height
    		 42mm, 50mm
    Dimensions for
    		 Including Bracket, Without Bracket
    Width
    		 60mm, 55mm
    Dimension details
    		 Panel Mounting, Voltmeter module

    Internal or Sub-part Dimensions

    Dimensions for
    		 Including Bracket, Without Bracket
    Dimension details
    		 Panel Mounting, Voltmeter module
    Diameter
    		 36mm
    Depth
    		 40mm, 80mm

    Additional Dimensions

    Dimension for
    		 Including Bracket
    Height
    		 42mm, 50mm
    Dimensions details

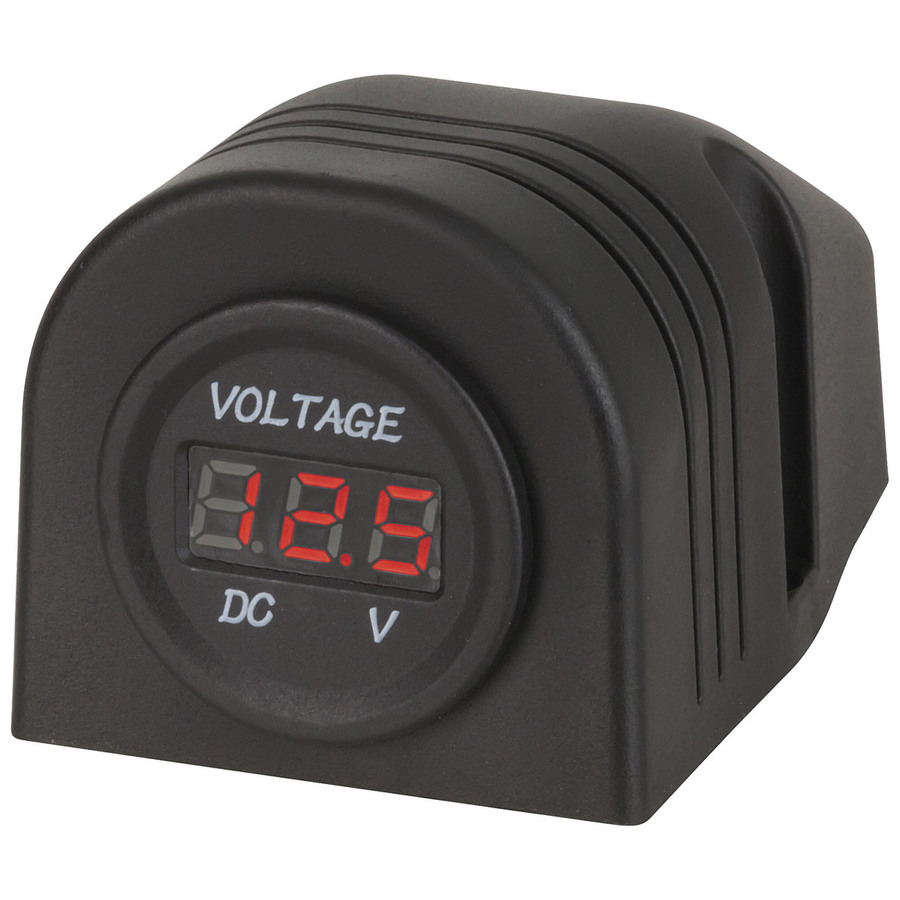

    		 Under Dash / Surface Mounting Hood
    Width
    		 60mm, 55mm
    Depth
    		 40mm, 80mm

    Packaged Dimensions

    Packaged Length
    		 18cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 0.09kg
    Packaged Volume
    		 0.7488l
    Packaged Height
    		 5.2cm

    Meter Display

    Display Backlight
    		 Red LED Backlit
    Display Type
    		 LED
    Bargraph
    Display Width
    		 26mm
    Display Height
    		 36mm

    Product Availability

    Availability
    		 Stocked item
