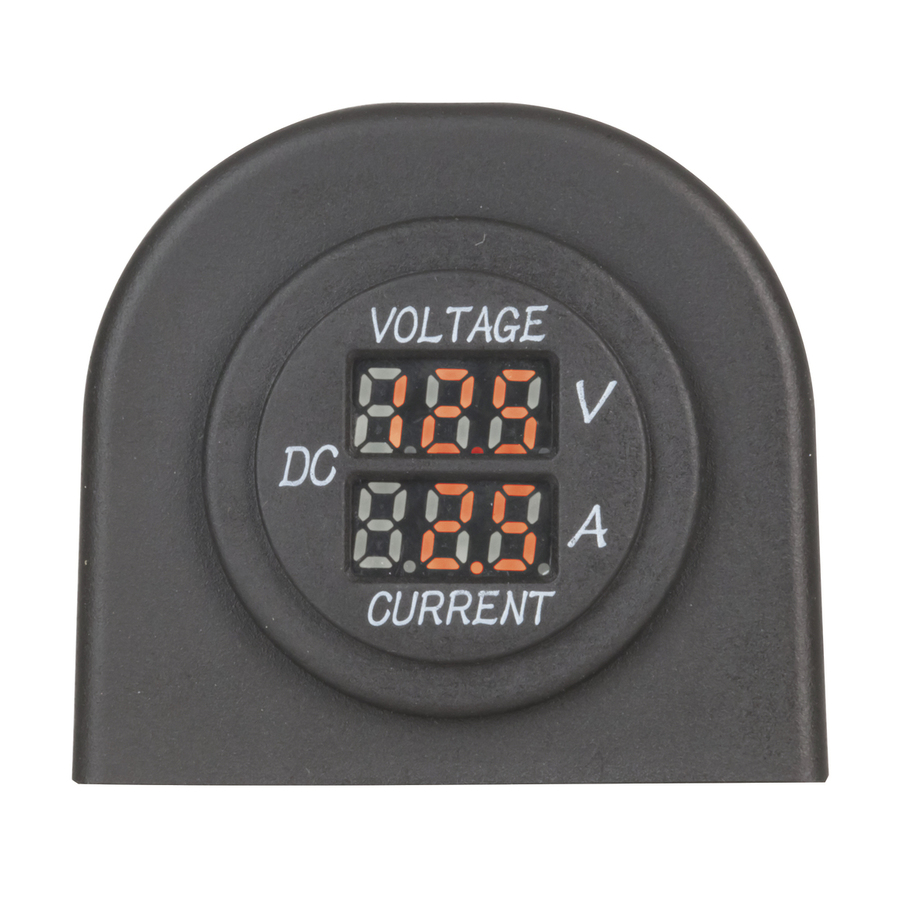

PanelSurface Mount LED Voltmeter and Ammeter
PanelSurface Mount LED Voltmeter and Ammeter
PanelSurface Mount LED Voltmeter and Ammeter

CAT. No. QP5584

PanelSurface Mount LED Voltmeter and Ammeter
product image thumb
product image thumb

PanelSurface Mount LED Voltmeter and Ammeter

$43.95
Versatile module for monitoring electrical conditions in your car, 4WD, or boat - Combination 5-30VDC voltmeter and 0-10A ammeter - Multiple mounts included - Additional versions also available
Available

Description

1 Year Warranty

Quite possibly the easiest way to monitor battery voltage and current draw on your van, RV or boat. Simply follow the included wiring diagram to measure 5-30VDC and 0 to 10A DC.

• Supplied with brackets for panel or surface mounting
• Connection is via three 6.3mm spade terminals (current shunt in-built)
• Also available with additional modules

    Specifications

    Internal or Sub-part Dimensions

    Dimensions for
    		 Without Bracket, Including Bracket
    Dimension details
    		 Voltmeter/ammeter module, Panel Mounting
    Diameter
    		 36mm
    Depth
    		 40mm, 80mm

    Product Dimensions

    Height
    		 42mm, 50mm
    Dimensions for
    		 Without Bracket, Including Bracket
    Width
    		 60mm, 55mm
    Dimension details
    		 Voltmeter/ammeter module, Panel Mounting

    Packaged Dimensions

    Packaged Length
    		 17.9cm
    Packaged Width
    		 8.1cm
    Packaged Weight
    		 0.1kg
    Packaged Volume
    		 0.768447l
    Packaged Height
    		 5.3cm

    Additional Dimensions

    Dimension for
    		 Including Bracket
    Height
    		 42mm, 50mm
    Dimensions details

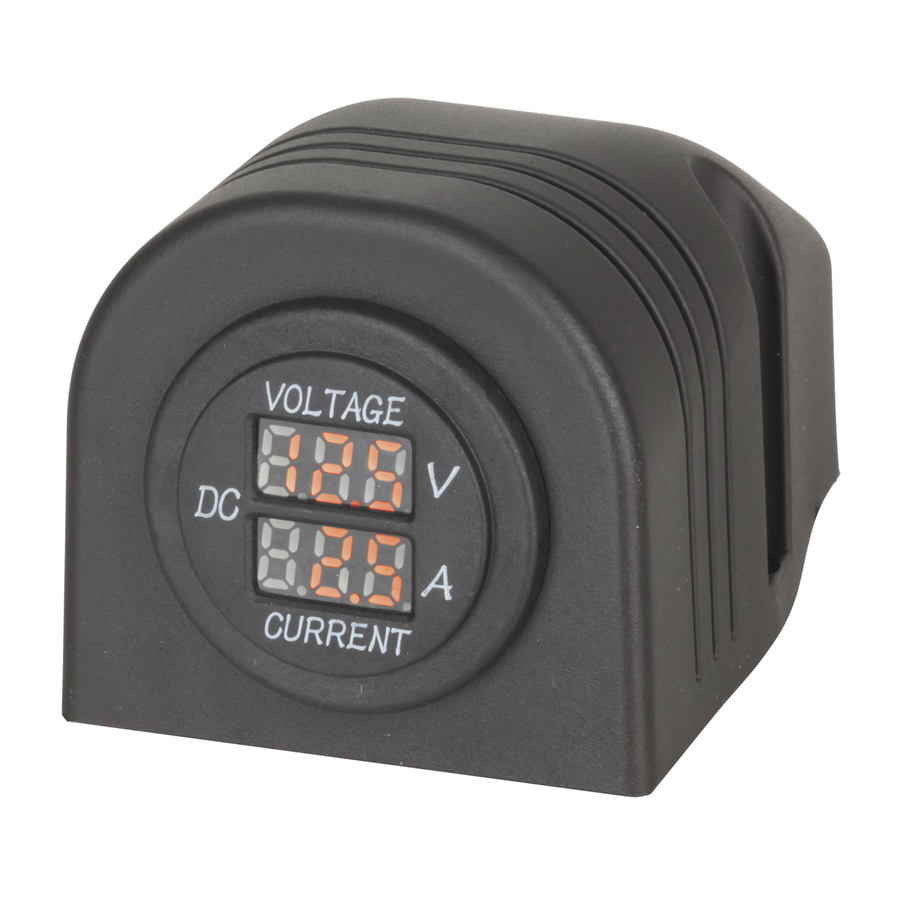

    		 Under Dash / Surface Mount Hood
    Width
    		 60mm, 55mm
    Depth
    		 40mm, 80mm

    Measures Voltage DC

    DC Volts Measurement Range
    		 5V-30V

    Measures Current DC

    Current DC Measuring Range
    		 0A-10A

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Mounting Method
    		 Panel

    Meter Display

    Display Backlight
    		 Red LED Backlit
    Digits Displayed
    		 3 digit
    Display Type
    		 LED

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
