LED Voltmeter 5-15VDC with Bar Graph

$43.95
Versatile module for monitoring electrical conditions in your car, 4WD, or boat - Single 5-15VDC voltmeter with charge indicating bargraph - Multiple mounts included - Additional versions also available
Available

Description

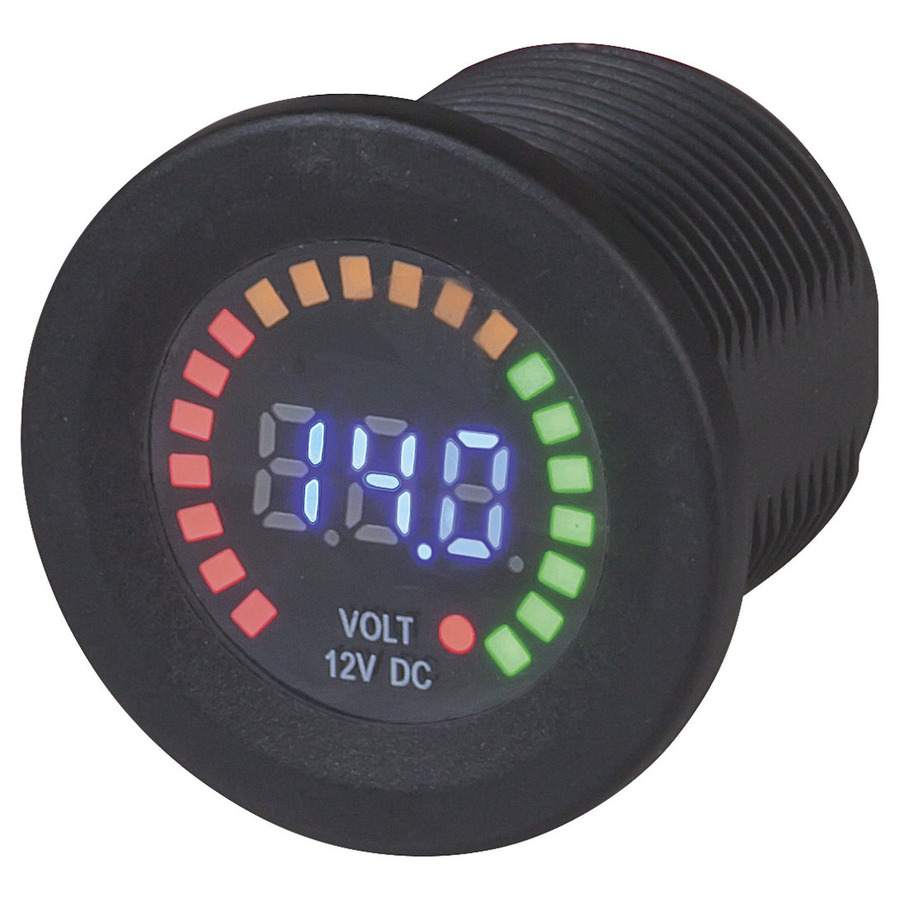

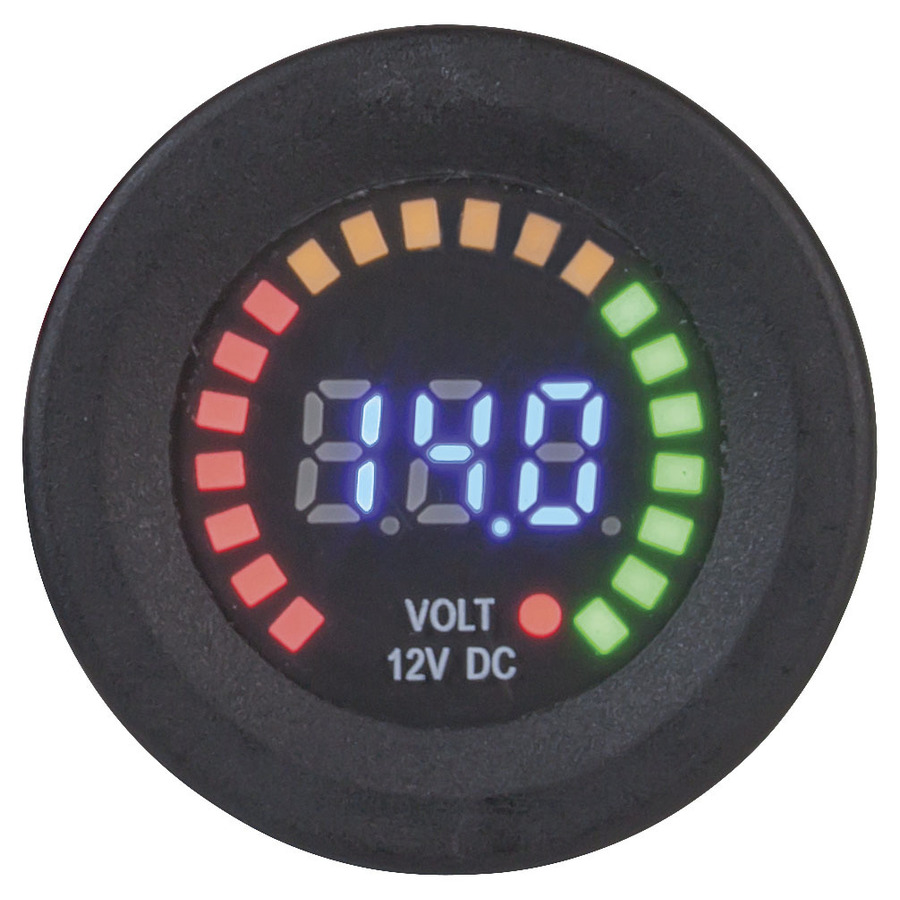

A quick and simple way to monitor the battery voltage in a vehicle, this voltmeter simultaneously shows the voltage numerically and on a bar graph. Simply wire up to a DC power source between 5-15VDC, and the blue LED voltmeter displays the voltage. The colour coded LED bar graph shows the voltage level on a scale from 11.3 to 13.2 volts, optimal for vehicle battery condition.

• Supplied with brackets for panel or surface mounting
• Connection is via 6.3mm spade terminals
• Also available with additional modules
For More info on Digital Multimeters.

    Specifications

    Internal or Sub-part Dimensions

    Dimensions for
    		 Without Bracket, Including Bracket
    Dimension details
    		 Voltmeter Module, Panel Mounting
    Diameter
    		 36mm
    Depth
    		 40mm, 80mm

    Product Dimensions

    Height
    		 42mm, 50mm
    Dimensions for
    		 Without Bracket, Including Bracket
    Width
    		 60mm, 55mm
    Dimension details
    		 Voltmeter Module, Panel Mounting

    Additional Dimensions

    Dimension for
    		 Including Bracket
    Height
    		 42mm, 50mm
    Dimensions details
    		 Under Dash / Surface Mount Hood
    Width
    		 60mm, 55mm
    Depth
    		 40mm, 80mm

    Measures Voltage DC

    DC Volts Measurement Range
    		 5V-15V

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Mounting Method
    		 Panel

    Meter Display

    Display Backlight
    		 Blue LED Backlit
    Digits Displayed
    		 3 digit
    Display Type
    		 LED
    Bargraph

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 18cm
    Packaged Width
    		 8.1cm
    Packaged Weight
    		 0.088kg
    Packaged Volume
    		 0.78732l
    Packaged Height
    		 5.4cm
