CAT. No. QV3500

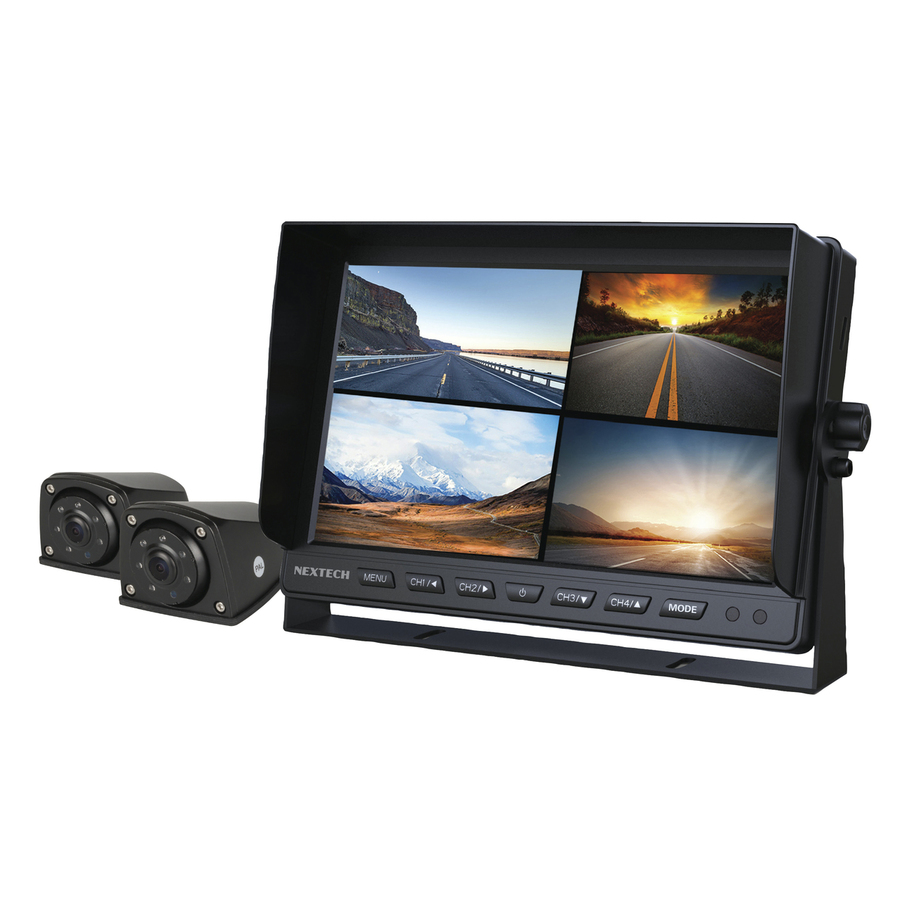

7 Inch 1080p LCD Monitor Kit with Built-In 4CH AHD Vehicle DVR + 2 x Wedge Style Vehicle Cameras
$399
Full colour LCD monitor with a Digital Video Recorder built-in.
Out of Stock
Description
Digital Video Recorder
4 Channel
1080p HD

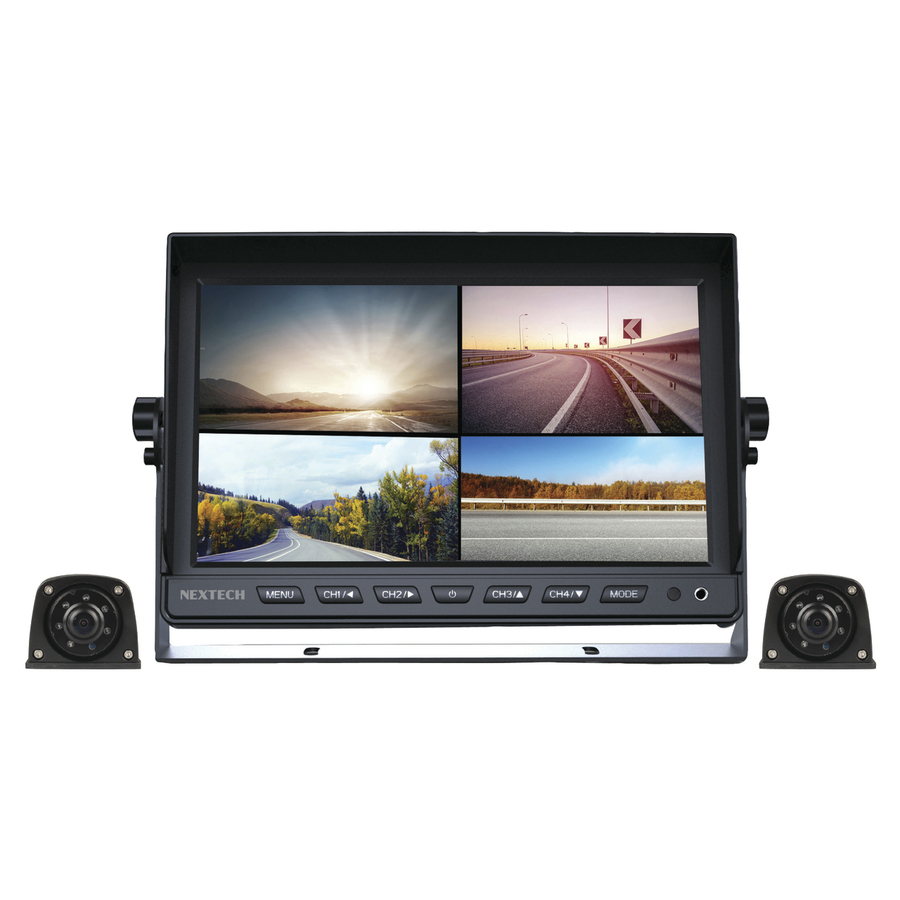

1080p HD Bullet CameraThe heart of this system is a high quality 7” (diagonal) LCD screen full colour monitor with a Digital Video Recorder built-in. The screen ratio is 16:9 and has a 500:1 contrast ratio.
Supplied with the kit is the following:
• 7” monitor with sun visor and mounting bracket
• 2 x QC3542 1080p weatherproof cameras with IR illumination

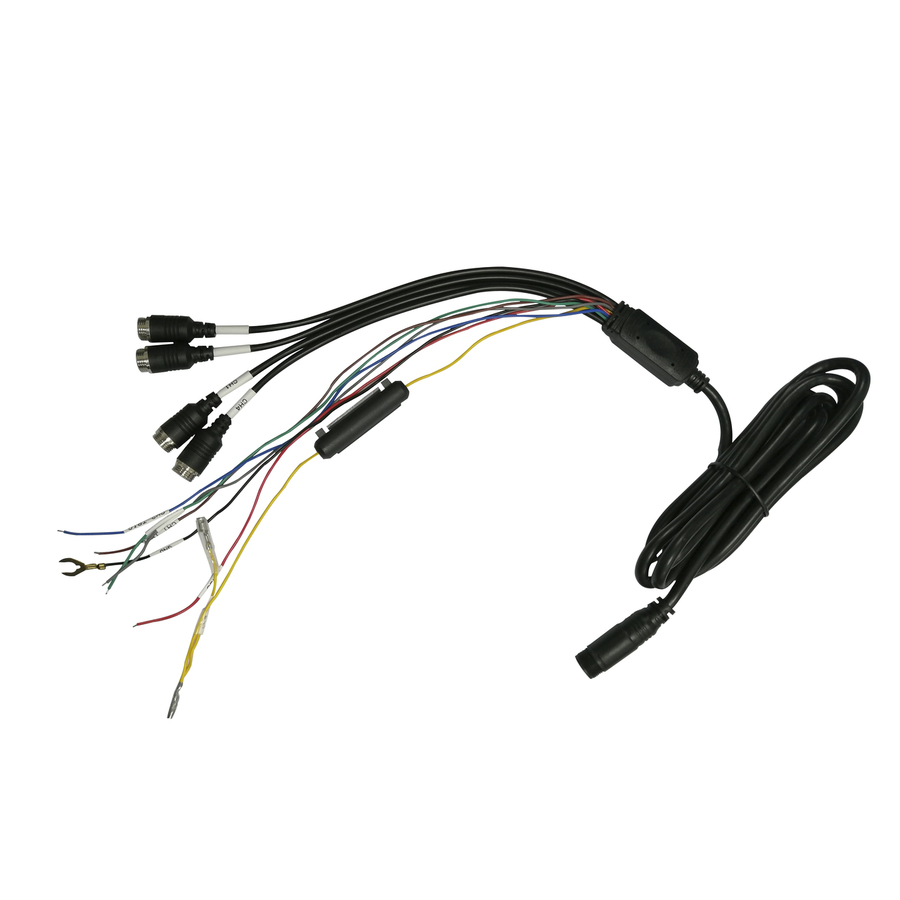

• Monitor wiring harness and camera wiring harness (for up to 4 x cameras)
• 2 x 10-metre-long camera extension cables (QM3743)
This monitoring/surveillance system is ideal for a towed caravan, motor home or large boat, etc. It could even be adapted to a beach house, barn, workshop, etc. all that is required is a +12V supply if in a house, etc.
As the monitor is configured to accept 4 x cameras in standard form, extra weatherproof cameras are available, or you can fit a dashboard forward facing dome camera which can also be mounted.
Specifications:
7” monitor unit.
• Resolution 1024 RGB (Analogue HD)
• Backlight luminance 400 cd/m2
• Viewing angle 85o all directions
• OSD control: Recording playback, record setting, display and system setting
• PAL, UTSC compatible
• Signal input: 4CH1080p/960p/720p/D1 (CVBS), 1CH audio input
• Record function with support SD card up to 256GB
• Multi-image display (switchable)
• Power supply: 12-24V D.C.
• Working temp: -20-40oC
Side (external) & Dome Cameras
• Image sensor CMoS F23
• Resolution 1920 (H) x 1080 (V)
• Min illuminance 0.1 lux
• Signal to noise ratio ≤80dB
• Back light control: Auto
• Will revert to Black/White night vision when light is insufficient for colour
• Viewing angle 120o
• Image can be switched to mirror reverse
• Water ingress IP69K
• 4G shock resistance
• Cameras are position adjustable 4 ways
• Max operating temp -20o – 400C
• Connector 4 pin
