CAT. No. QV9092

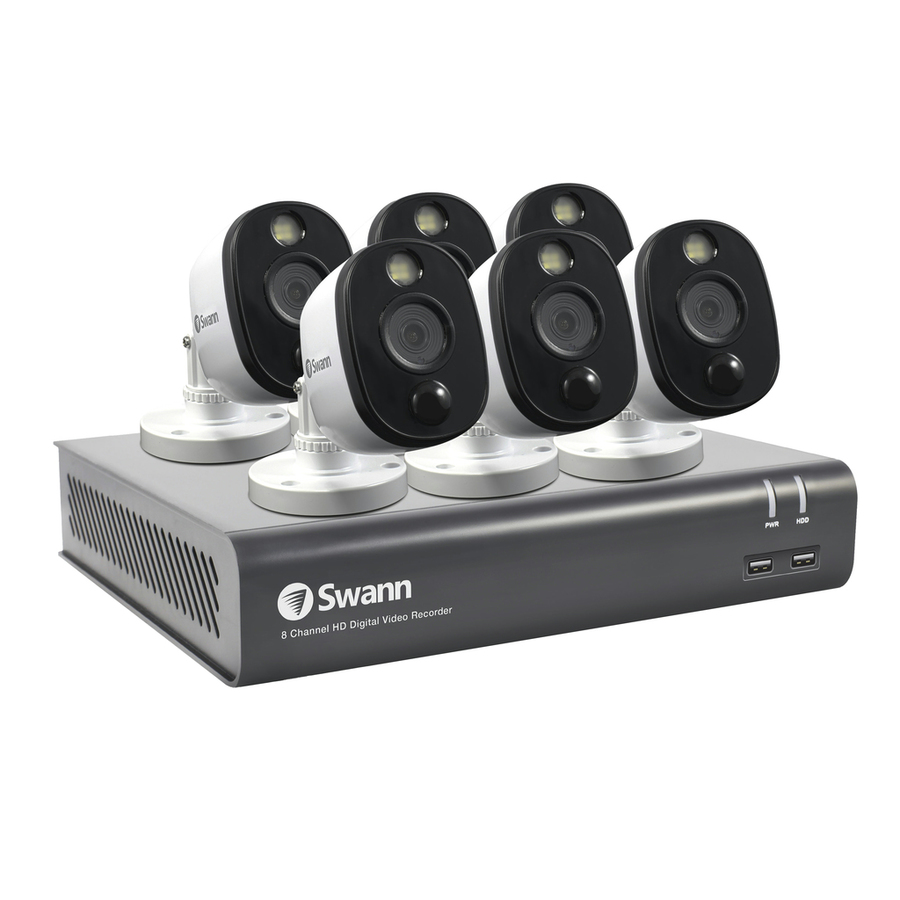

Swann 8CH 1080p DVR Kit with 6 x 1080p PIR with Warning Spot Lights Cameras
product image thumb
product image thumb
product image thumb

Swann 8CH 1080p DVR Kit with 6 x 1080p PIR with Warning Spot Lights Cameras

$599
A wired surveillance system suitable for you to do it yourself or have it professionally installed. Packed with features including; - night vision - True Heat™ motion detection - push notifications - cloud storage

Out of Stock

Description

Digital Video Recorder
8 Channel
1TB Internal Storage
1080p HD

A wired surveillance system for you to do-it-yourself or have it professionally installed. Packed with features including night vision, True Heat™ motion detection, push notifications and cloud storage, this package has everything you need to protect your property, possesions and loved ones. Full HD 1080p resolution lets you discern important features such as faces & license plates.

Enjoy hands-free security using voice commands. Stream video from your camera via the Google Assistant & Chromecast, Google Home Hub, or via Alexa devices with a screen, such as Echo Spot, Echo Show or 4K Fire TV.

Powerful night vision allows viewing up to 30m in B+W and color night vision up to 10m with the sensor lights on. Add 2 more cameras for full 8 channel monitoring

Cut the cost of crime & know what’s happening with this expandable Full HD 1080p security system to suit homes, offices, small businesses & retail stores

Heat & motion activate the Sensor Warning Lights, helping you deter any potential intruders.

Compatible with the Swann Security app ecosystem. You can connect other ‘works with Swann Security’ products to create your own safe home.

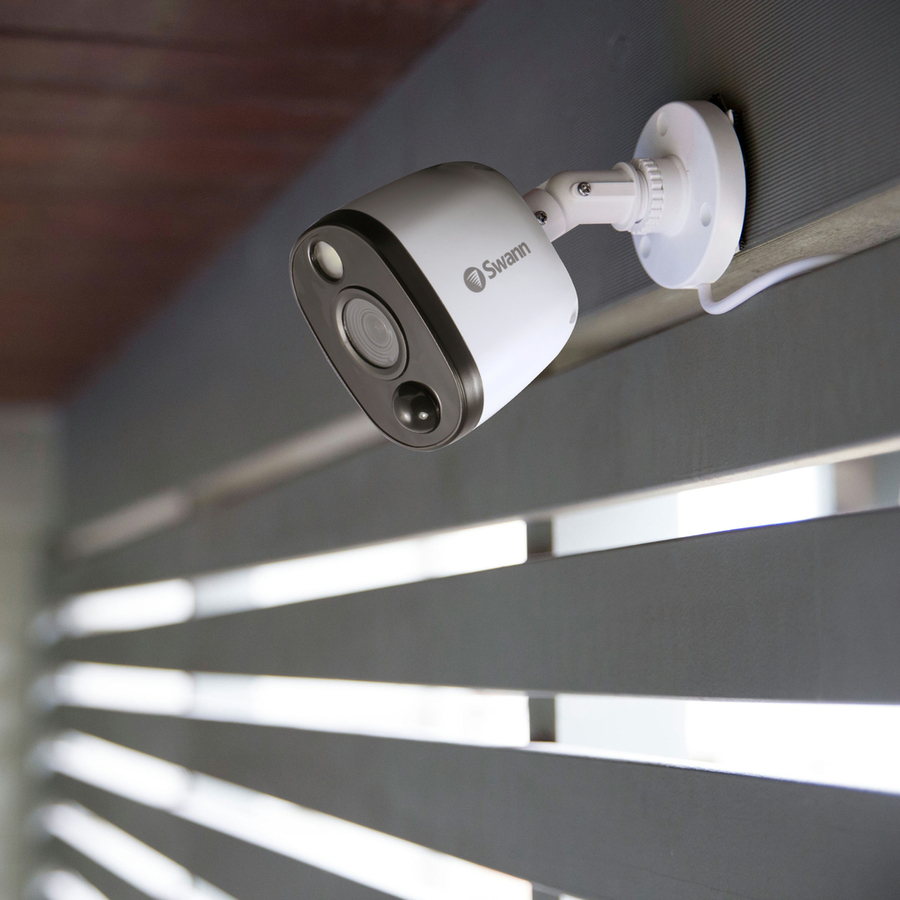

Mount cameras outdoors. Weatherproof design, IP66 rating. Built to withstand rain, shine, snow & dust.

Get color video at night up with the Sensor Warning Lights up to 32ft (10m). See clothing colors, car colors and more for enhanced evidence.

Set up the system to upload footage and still images to your Dropbox account in the cloud. So even if your security system gets stolen, you’ll have image evidence off-site.

The massive 1TB HDD can store months of footage before overwriting older footage. Easily transfer videos to a USB stick or download via network with no ongoing fees ever.

Select a specific area of the image to search for movement within the recordings. Highlight the position of a stolen object and Smart Search will find motion around that area.

Features:
• 1080p HD Camera Resolution
• IR Night Vision
• True Heat™ Motion Detection
• Push Notifications
• Cloud Storage
• Cameras are IP66 Rated


Handy Tip DVR vs NVR

There are key differences between NVR and DVRs. NVRs may have a higher cost, however can provide an easier install and higher quality images.
DVR (DIGITAL VIDEO RECORDER):• Uses coax cable to run video from the camera to the DVR
• 200m maximum camera maximum distance to DVR
• Each camera needs its own power source using a secondary cable between power supply and cameras using a splitter
• Cameras are analogue with the image processing done by the DVR
• Cheaper camera cost

NVR (NETWORK VIDEO RECORDER):• Uses common Ethernet cables to run video and power between the camera and DVR
• 100m maximum camera distance to DVR, but can be extended using PoE enabled Ethernet Router or Switch
• Power is provided from the DVR over Ethernet (PoE). No extra cabling.
• Modern homes and offices already have Ethernet running between rooms, which makes installation easier
• Cameras are digital with the images processed in the camera.
• Higher camera cost

    Specifications

    Internal or Sub-part Dimensions


    Height
    144mm, 47mm
    Dimensions for
    Camera, Recorder
    Width
    57mm, 230mm
    Depth
    78mm, 210mm

    Digital/Network Video Recorder


    Audio Inputs
    1ch
    Backup Methods
    USB, Cloud
    Camera Connection
    BNC
    Video Channels (Direct Connection)
    8ch
    Motion Sensing
    Video Output (Monitor)
    HDMI Type-A, D15 HD (VGA)
    Audio Connection
    RCA
    Remote Access
    Android(R) App, iPhone(R) App
    Audio Outputs
    1ch
    Notification Functions
    Push notice to app

    Surveillance Equipment


    Equipment Type
    Surveillance Package (DVR/NVR + Camera)

    Video Recording


    Recording Resolution (Analogue Input)
    3MP (2048 x 1536)

    Digital Storage Details


    Maximum Capacity
    4TB
    Included Capacity
    1TB

    USB Connectivity


    Supported USB Standards
    USB 2.0, USB 3.0
    USB Interface Functions
    Mouse, Backup
    Port Details
    USB 2.0 x 2, USB 3.0 x 1
    USB Port Types
    USB Type A
    Number of USB ports
    3 ports

    LAN Details


    LAN Port Type
    RJ45
    Number of LAN Ports
    1 ports

    Video Resolution


    Supported Display Resolution
    1080p (1920 x 1080)

    Smartphone App Details


    App name
    HomeSafe View App
    Apps to suit
    Apple iOS, Android

    CCTV Cameras


    Thermal Detection PIR Sensor
    Infrared Enabled
    Infrared Range
    45m
    Output Signal
    Composite Video (CVBS)
    Included Lead Length
    18m
    Type of Camera
    Outdoor
    Video Output Connection
    BNC
    Thermal Detection Range
    10m
    Camera Audio Output Connection
    RCA
    Lens Angle
    90°
    Resolution
    1080p (1920 x 1080)

    Ingress Protection Rating


    IP Rating
    IP66
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    6 - Powerful water jets
    IP rating for
    Camera

    Operating Temperature


    Operating Temperature
    -30°C-50°C

    DVR/Camera Pack


    Cables Included
    6pc
    Cameras Included
    6pc
    Cable Length
    18m

    Box Contents


    •

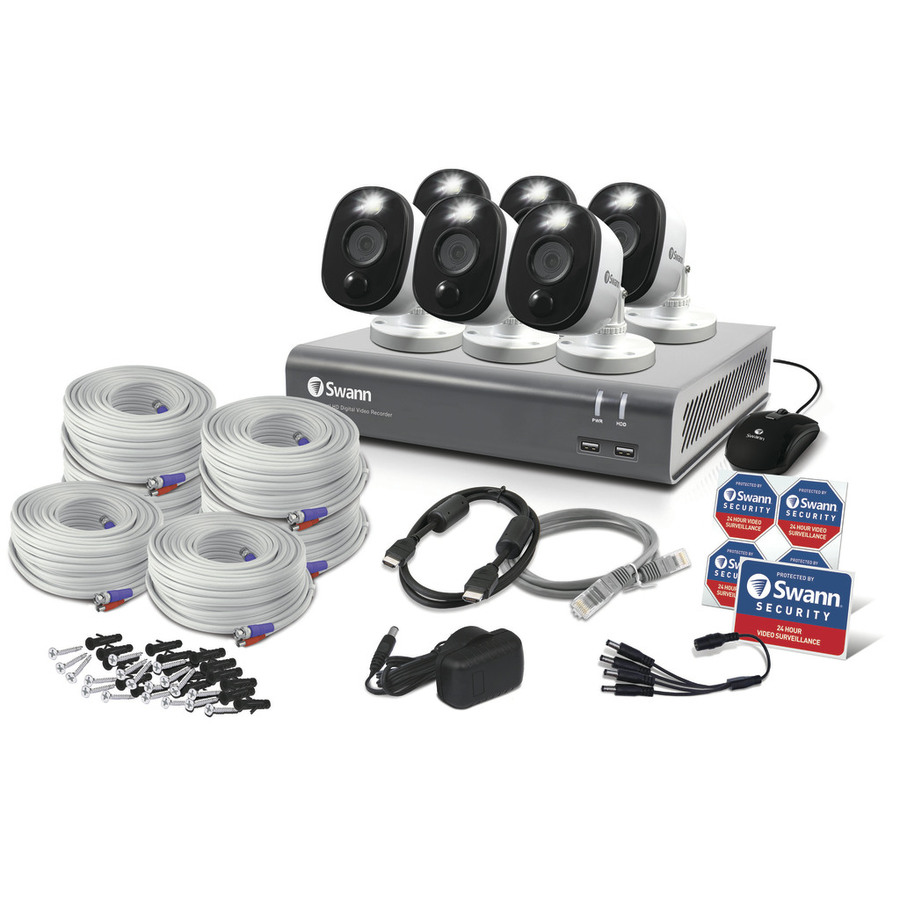

    DVR 4580 8 Channel DVR with 1TB Hard Drive, PRO-1080MSFB Sensor Warning Light Cameras x 6, Theft Deterrent Stickers, BNC Cables 60ft / 18m x 6, Mounting Screws and Plugs, Quick Start Guide, Ethernet Cable, HDMI Cable, Power Adapter and Splitter, Mouse

    Product Dimensions


    Height
    144mm, 47mm
    Dimensions for
    Camera, Recorder
    Width
    57mm, 230mm
    Depth
    78mm, 210mm

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    38.3cm
    Packaged Width
    28.4cm
    Packaged Weight
    6.284kg
    Packaged Volume
    32.6316l
    Packaged Height
    30cm
