CAT. No. QV9095

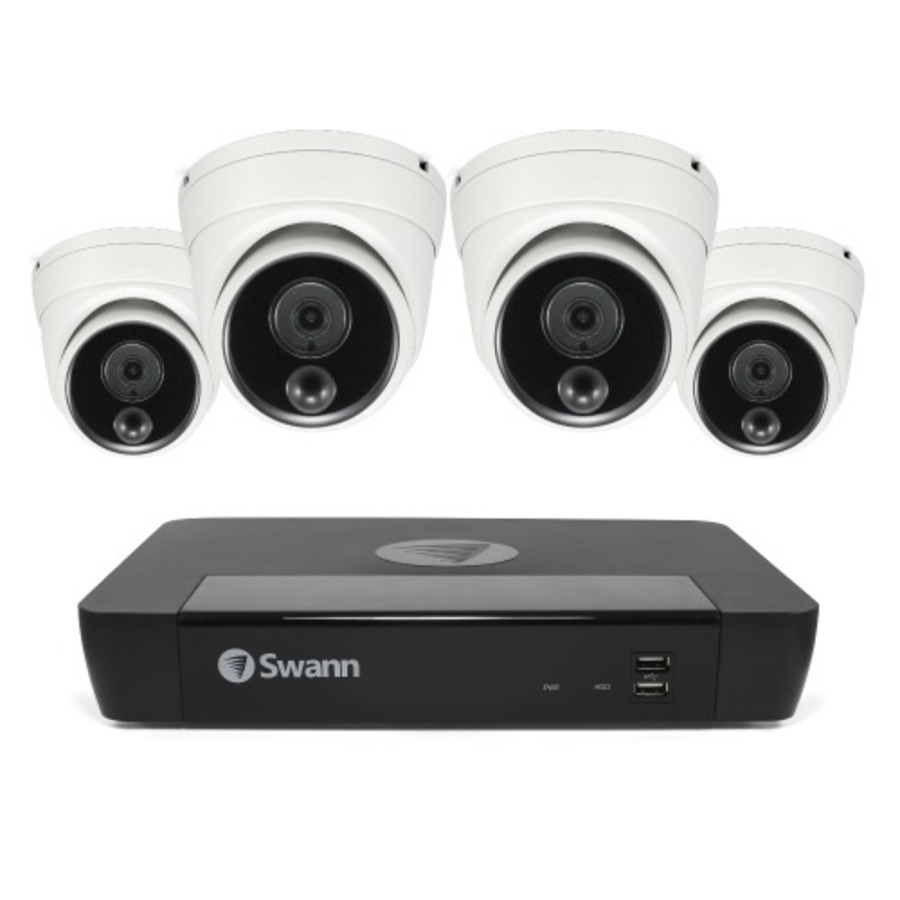

Swann 8CH 4K NVR Kit with 4 x 4K PIR Dome Cameras
product image thumb
product image thumb
product image thumb
product image thumb

Swann 8CH 4K NVR Kit with 4 x 4K PIR Dome Cameras

$1299
Protect your loved ones and property with this expandable surveillance system. Includes 4 Cameras Expandable up to 8 Cameras Night Vision and Motion Detection

Out of Stock

Description

Get it on Google Play
Download on the App Store
1 Year Warranty
Network Video Recorder
8 Channel
4K UHD
2TB Internal Storage

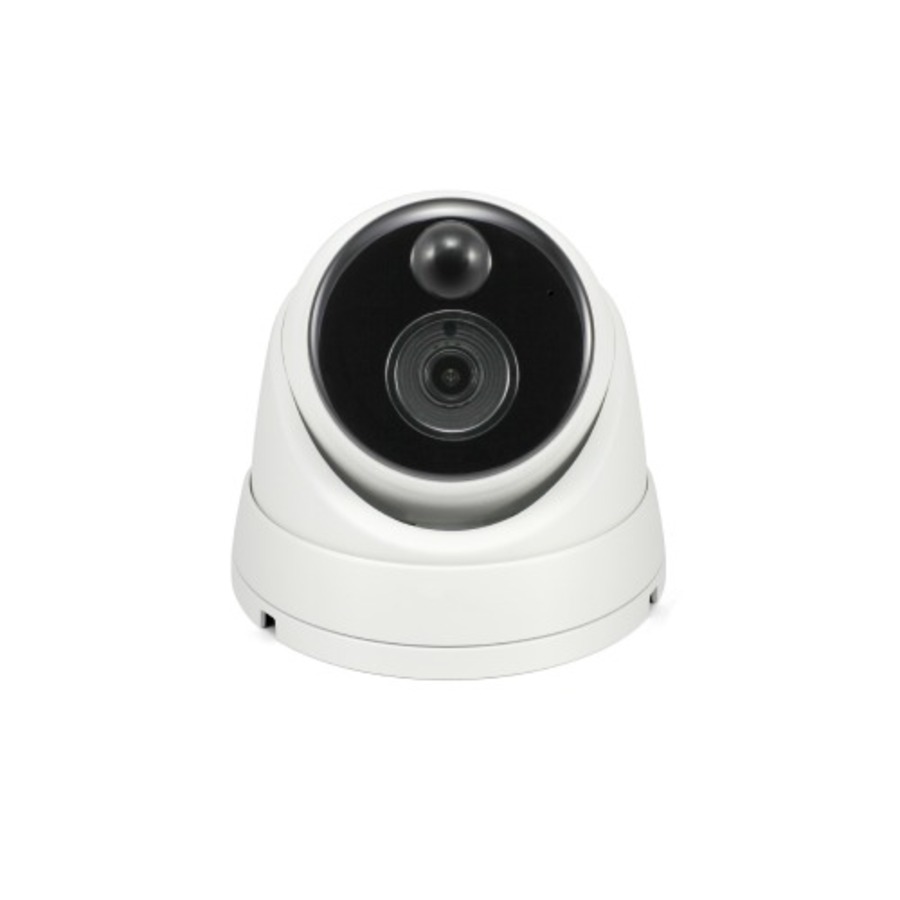

4K UHD Dome Camera

Reliable Wired Connection Protect your loved ones & property with this multi-camera, wired surveillance system with everything you need to do-it-yourself or have it professionally installed

See & Hear Everything in Ultra HD See faces, license plates, packages & capture audio with state-of-the-art 4K Ultra HD, that’s 4x clearer than 1080p with powerful digital zoom – ensuring you won’t miss a thing

Protection 24/7 Know what’s happening at any hour with powerful infrared night vision up to 130ft/40m in total darkness & the ability to see color video at night up to 115ft/35m when the spotlights are on. Add 4 more cameras for full 8 channel monitoring

Heat Sensing Swann’s True Detect™ heat & motion detection triggers video recording, push notifications and turn on the spotlights when it detects motion with heat.

Set & Forget Enjoy local recording for up to 300 days+ onto the massive 2TB hard drive with no fees ever. Save footage directly to your Dropbox account to have image evidence safely stored off-site

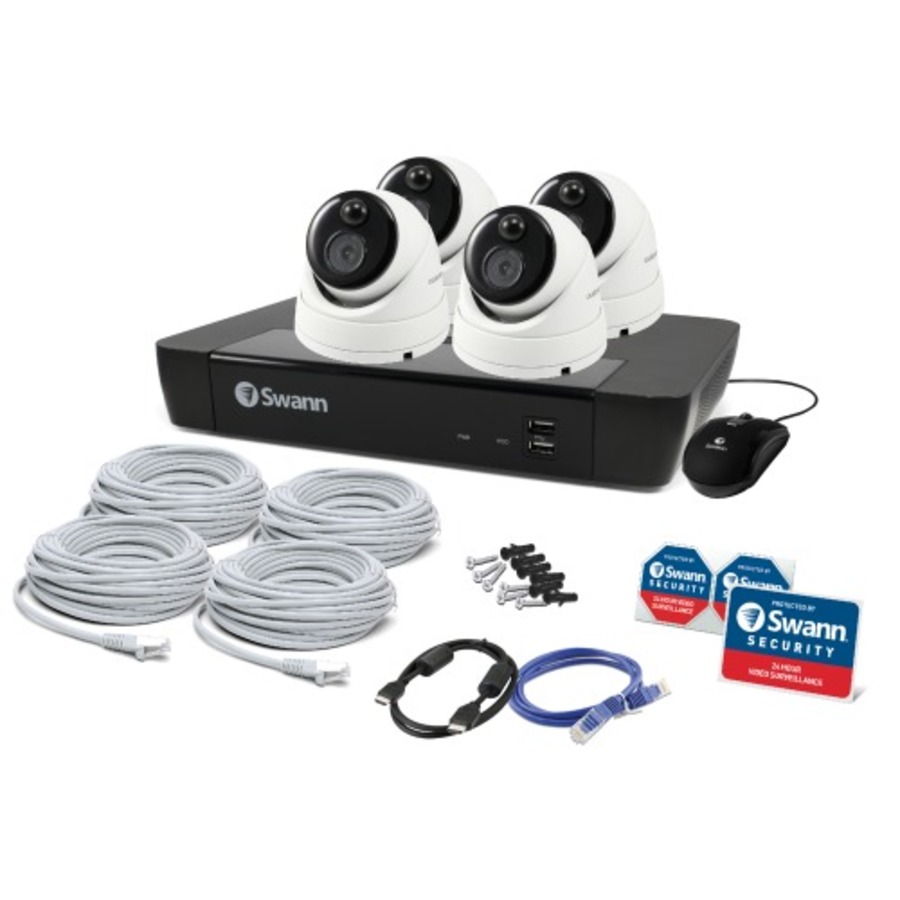

Box Contents:
1 x 8 Channel 4K NVR
4 x 4K PIR Dome Cameras
4 x 18m Ethernet Cables (Cameras)
1 x USB Mouse
1 x 1m Ethernet Cable (NVR)
1 x HDMI Cable
1 x Mains Power Adaptor
4 x CCTV Security Stickers
4 x Mounting Hardware

Features:
- True Detect™ PIR Motion Sensing Technology
- Facial Recognition
- Smart Search & Line Crossing
- Camera & Intrusion Detection
- Free Android & iOS® Smartphone App
- Record & Playback Simultaneously
- Easy QR Code Setup
- Dropbox Photo Backup
- Power Over Ethernet (PoE)
- Motion Detection, Manual & Scheduled Recording
- Password Protection
- External USB Backup
- Lifetime 24/7 Swann Support

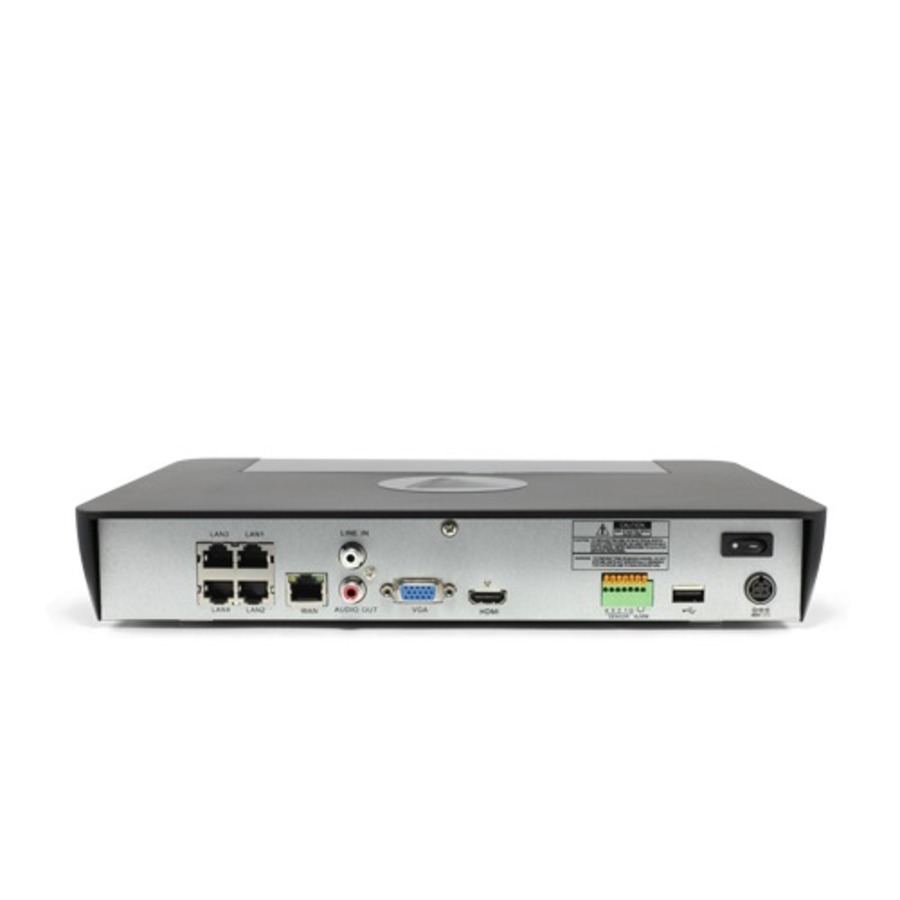

NVR:
Inputs: 8 x Ethernet RJ45 PoE (Video)
Outputs: 1 x HDMI (Video & Audio)
              1 x VGA (Video)
              1 x RCA (Audio)
USB Interface: 3 x USB Ports (Mouse/Backup/Upgrade)
Network Interface: Ethernet, RJ45 10/100Mbps

    Specifications

    Digital/Network Video Recorder


    Audio Inputs
    8ch
    Camera Connection
    RJ45
    Video Channels (Direct Connection)
    8ch
    Total Recording Channels
    8ch
    Video Output (Monitor)
    D15 HD (VGA), HDMI Type-A
    Audio Connection
    RCA
    Audio Outputs
    1ch

    Surveillance Equipment


    Equipment Type
    Surveillance Package (DVR/NVR + Camera)

    Video Recording


    Recording Format
    H.264 (MPEG4), H.265 (MPEG4)

    Digital Storage Details


    Expandable
    Maximum Capacity
    6TB
    Included Capacity
    2TB

    USB Connectivity


    USB Interface Functions
    Mouse, Keyboard, Backup
    Number of USB ports
    3 ports

    Video Resolution


    Resolution Frequency
    15Hz
    Supported Display Resolution
    4K UHD (3840 x 2160)

    Smartphone App Details


    Apps to suit
    Apple iOS, Android

    CCTV Cameras


    Thermal Detection PIR Sensor
    Infrared Enabled
    Infrared Range
    45m
    Type of Camera
    Dome
    Video Output Connection
    RJ45
    Thermal Detection Range
    10m
    In-built Microphone

    Ingress Protection Rating


    IP Rating
    IP66
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    6 - Powerful water jets
    IP rating for
    Camera

    Operating Temperature


    Operating Temperature
    -30°C-55°C

    Box Contents


    •
    NVR-8580 8 Channel NVR with 2TB Hard Drive, NHD-888MSD 4K Dome Cameras x 4, Cat5e Ethernet Cable x 5 (18m x 4 and 1m x 1), Quick Start Guide, Theft Deterrent Stickers, HDMI Cable, Power Adapter and Splitter, Mouse, Mounting Screws and Plugs

    Internal or Sub-part Dimensions


    Height
    100mm, 53mm
    Dimensions for
    Camera, Recorder
    Diameter
    100mm

    Product Dimensions


    Height
    100mm, 53mm
    Dimensions for
    Camera, Recorder
    Width
    310mm
    Depth
    235mm

    Packaged Dimensions


    Packaged Length
    44cm
    Packaged Width
    21.7cm
    Packaged Weight
    6.218kg
    Packaged Volume
    28.73948l
    Packaged Height
    30.1cm
    Warranty: 12 Months
