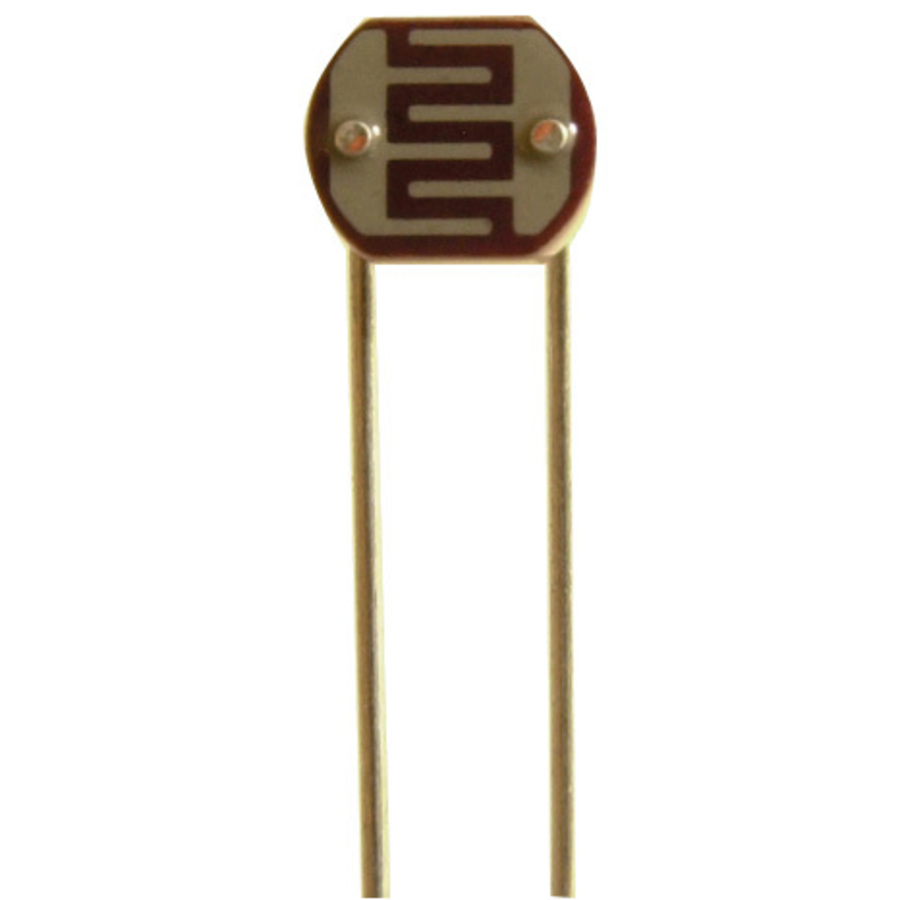

Small Light Dependent Resistor (LDR)
Small Light Dependent Resistor (LDR)

CAT. No. RD3480

Small Light Dependent Resistor (LDR)
product image thumb

Small Light Dependent Resistor (LDR)

$4.95
Cadmium Sulphide (CdS) light dependent resistor cell. - Similar to Philips ORP12- Dark Resistance: min10M- Light Resistance: 48k - 140k- Max Dissipati...
Available

Description

Cadmium Sulphide (CdS) light dependent resistor cell. - Similar to Philips ORP12- Dark Resistance: min10M- Light Resistance: 48k - 140k- Max Dissipation: 30mW- Rise Time: (0~63%) 40mS- Decay Time: (100~37%) 10mS- Dimensions: 5.1mm x 4.3mm ±0.2- Lead spacing: 3.4mm

    Specifications

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.5cm

    Product Availability

    Availability
    		 Stocked item

N/A
