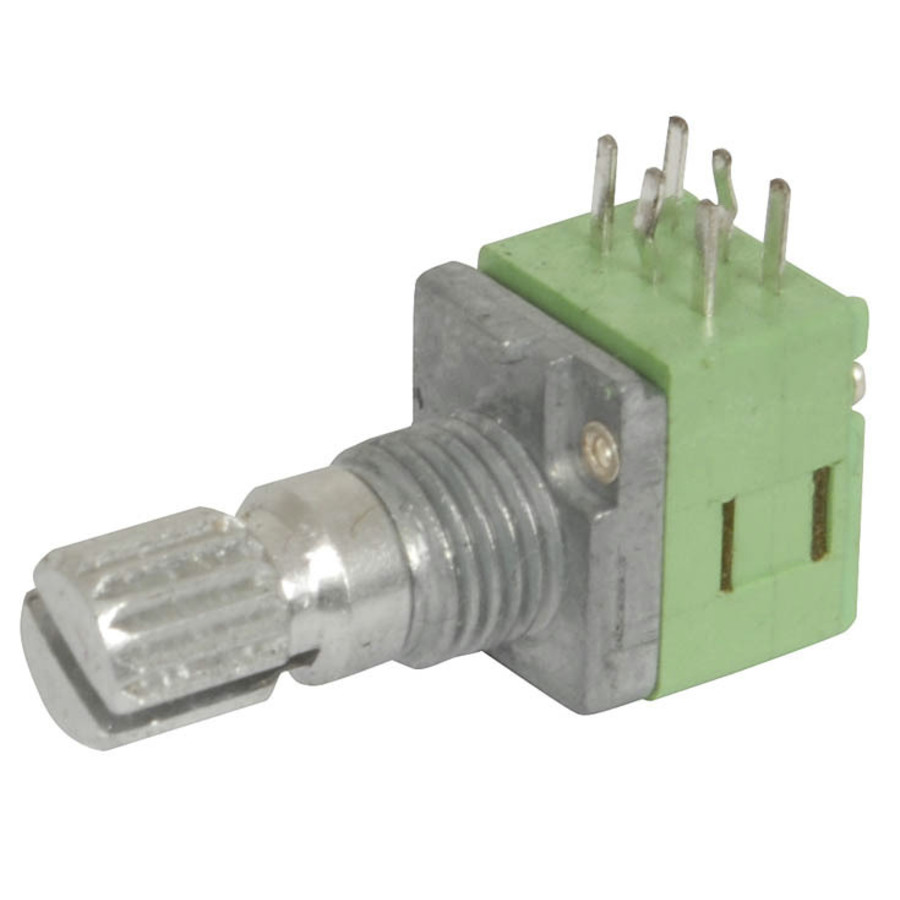

50k Ohm Logarithmic (A) Double Gang 9mm Potentiometer
50k Ohm Logarithmic (A) Double Gang 9mm Potentiometer

CAT. No. RP8760

50k Ohm Logarithmic (A) Double Gang 9mm Potentiometer
product image thumb

50k Ohm Logarithmic (A) Double Gang 9mm Potentiometer

$6.95
These pots are rapidly becoming the industry standard for miniaturised audio, digital and telecommunications equipment. This series features good sold...

Out of Stock

Description

Features:

Rated Power: 0.05W, other taper: 0.02W

Rated Voltage: 50VAC

Slider Noise: <100mV

Insulation resistance: >100M at 250VDC

Dielectric: 300VAC/Minute

Tracking Error: Within 3dB at 40~0dB

Mechanical Rotation Angle: 300° +/- 5°

Rotation Torque: 20~250gf.cm

Shaft Stop Strength: 5kgf.cm/min.

Value50KΩ


    Specifications

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.00375l
    Packaged Height
    		 1.5cm

    Potentiometer

    potentiometer nut size
    		 9mm metric
    Potentiometer Diameter
    		 9mm
    Log or Linear?
    		 Logarithmic
    Potentiometer Shaft Length
    		 10mm
    Potentiometer Knob Type
    		 Metric splined
    Potentiometer Terminal Type
    		 Solder Legs

    Passive Component

    Component package
    		 Square pack
    Passive mount type
    		 Panel, Through Hole
    Passive connector type
    		 Solder Legs
    Pack Quantity
    		 1pc
    Passive number of legs
    		 3 count
    Passive marking code
    		 Number code

    Resistance Rating

    Resistance level
    		 50k?

    Power Rating

    Continuous Power
    		 0.02W

    AC Voltage Rating

    AC Voltage rating
    		 50V

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Articles

    RP8760-dataSheetMain.pdf
