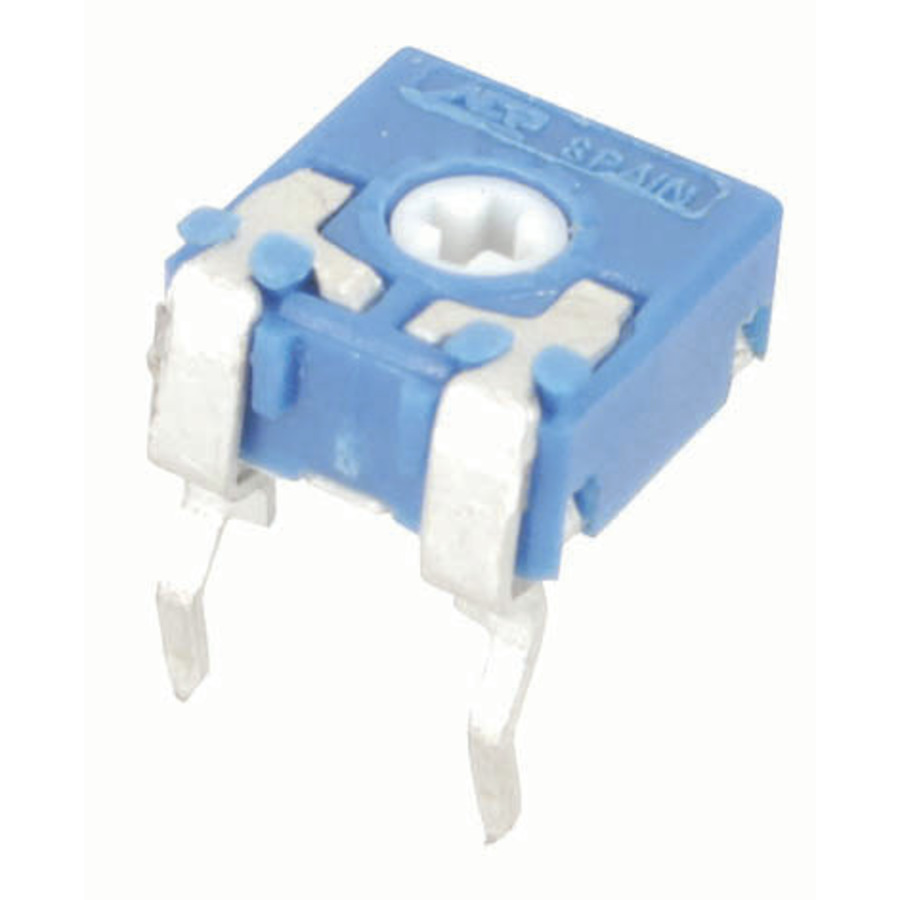

1K ohm Piher Horizontal Trimpot
1K ohm Piher Horizontal Trimpot

CAT. No. RT4354

1K ohm Piher Horizontal Trimpot
product image thumb

1K ohm Piher Horizontal Trimpot

$1.45
At last, a range of top quality sealed mini, standard sized trimpots.- Dust proof enclosure - Polyester substrate - Wiper positioned at 50% - Accident...
Available

Description

At last, a range of top quality sealed mini, standard sized trimpots.- Dust proof enclosure - Polyester substrate - Wiper positioned at 50% - Accidental rotor movement protected.Specifications: - Max voltage 100V - Nom power 0.1W - Linear curve - Tolerance +/- 30% - End resistance 10.Value1K

    Specifications

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 2.5E-4l
    Packaged Height
    		 1cm

    Trimmer Potentiometer

    Trimpot Scredriver Slot
    		 Philips
    Trimpot Turns
    		 1 units
    Trim Pot Type
    		 Horizontal

    Passive Component

    Component package
    		 Square pack
    Passive mount type
    		 Through Hole
    Passive connector type
    		 Solder Legs
    Pack Quantity
    		 1pc
    Passive number of legs
    		 3 count
    Passive marking code
    		 Number code

    Resistance Rating

    Resistance level
    		 1k?

    Power Rating

    Continuous Power
    		 0.1W

    AC Voltage Rating

    AC Voltage rating
    		 100V

    Product Availability

    Availability
    		 Stocked item
