100ohm Spectrol 25 Turn Trimpot
100ohm Spectrol 25 Turn Trimpot
100ohm Spectrol 25 Turn Trimpot

CAT. No. RT4640

100ohm Spectrol 25 Turn Trimpot
product image thumb
product image thumb

100ohm Spectrol 25 Turn Trimpot

$2.95
These are 25 turn industrial quality sealed trimpots. Pins are in a row, with 2.5mm spacing.Adjustment is vertical. Power rating is 0.5 watts.Value100...

Out of Stock

Description

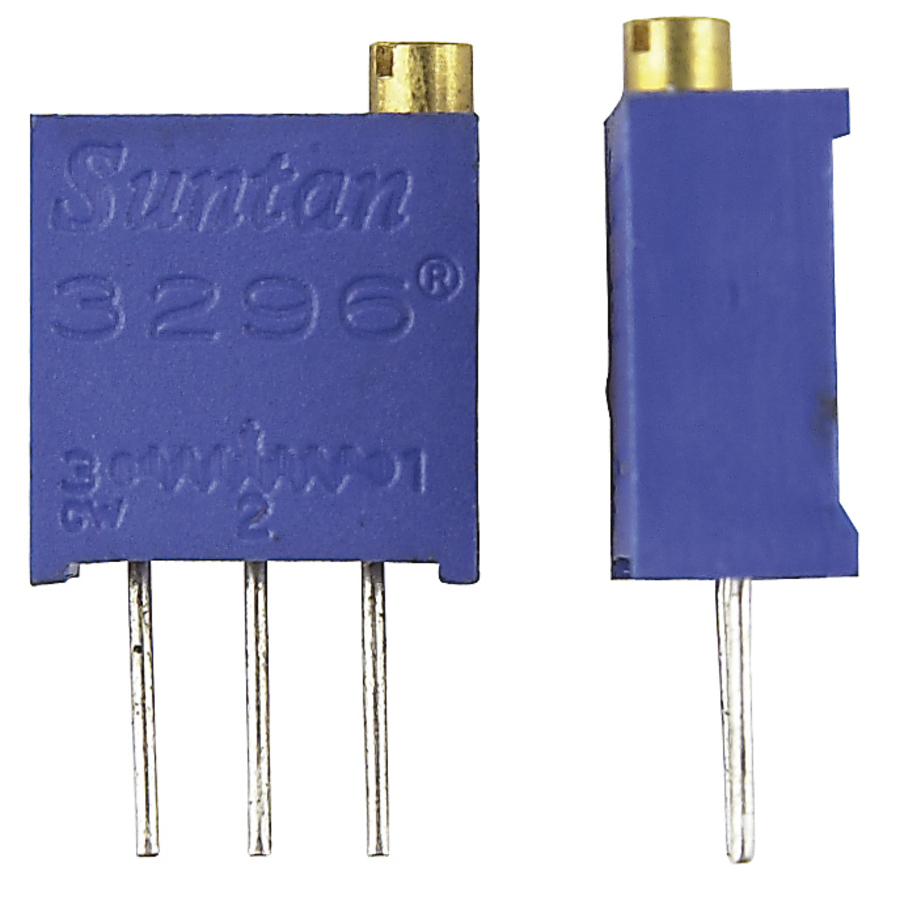

These are 25 turn industrial quality sealed trimpots.

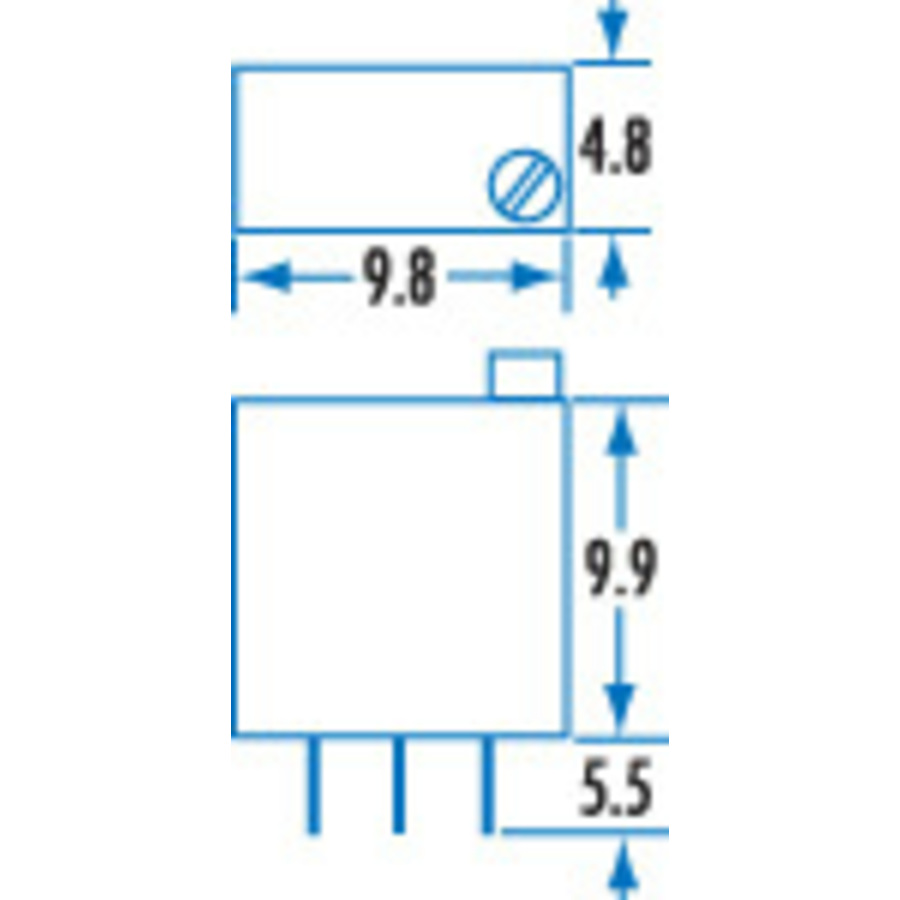

Pins are in a row, with 2.5mm spacing.
Adjustment is vertical.
Power rating is 0.5 watts.
Value100

    Specifications

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 2cm

    Trimmer Potentiometer

    Trimpot Scredriver Slot
    		 Flat
    Trimpot Turns
    		 25 units
    Trim Pot Type
    		 Multi-turn vertical adjustment

    Passive Component

    Component package
    		 Square pack
    Passive mount type
    		 Through Hole
    Passive connector type
    		 Solder Legs
    Pack Quantity
    		 1pc
    Passive number of legs
    		 3 count
    Passive marking code
    		 Number code

    Resistance Rating

    Resistance level
    		 100?

    Power Rating

    Continuous Power
    		 0.5W

    Product Availability

    Availability
    		 Stocked item
