CAT. No. SB1686

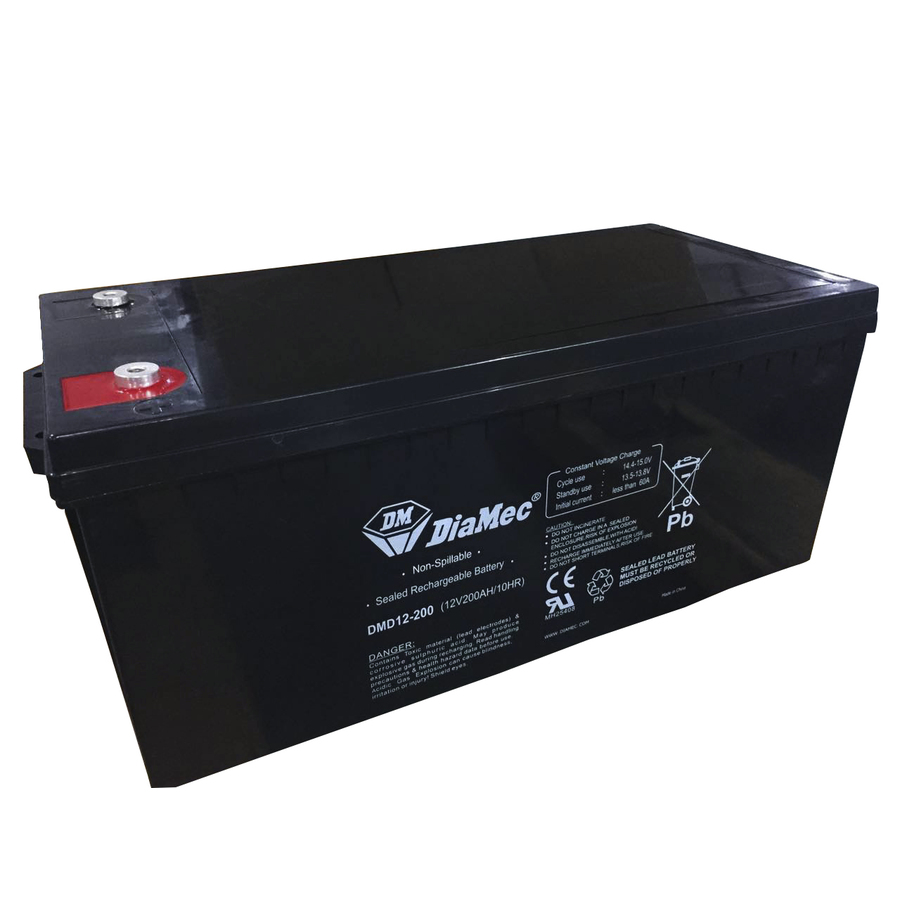

12V 200Ah AGM Deep Cycle Battery
product image thumb

12V 200Ah AGM Deep Cycle Battery

$699
AGM (Absorbed Glass Mat) Deep Cycle batteries have many applications from camping and outdoor activities, to running remote area power systems.

Out of Stock

Description

2 Year Warranty

This product has an absorbent glass mat embedded in the structure of the plates. (There are 6 sets of plates, each 2.0V which makes up a “battery” of plates, i.e. 12V). The mat does two things. It reinforces the lead frame of each plate, or cell, and it stops the plates from buckling under heavy discharge current). By helping make the innards of the battery virtually solid, you can mount it in any position, but it is still preferable, of course, to mount the battery upright, even for the sake of convenience of terminal access. They are an excellent product.

Note: It is important to not discharge an AGM more than 60% between recharge.
Note: Due to excessive weight this product cannot be shipped by express or air freight and may attract a surcharge when shipped by road freight. Please contact our call centre for details.

For More info on Charging Batteries.


NOTE: This is a special order line which is not stocked in all retail stores but can be ordered. Please call your local store to check if they have stock on hand.


    Specifications

    Rechargeable Battery


    Recharging Time
    8hr
    Recharging Voltage
    14.4V-15V
    Standard Recharge Current
    25A
    Leakage Properties
    91% charge after 3 months; 82% charge after 6 months; 64% charge after 12 months

    DC Voltage Rating


    DC Voltage
    12V

    Product Dimensions


    Length
    523mm
    Height
    217mm
    Width
    239mm
    Weight
    59.2kg

    Battery Packs and Batteries


    Battery Chemical Composition
    Deep Cycle AGM
    Battery Peak Current
    3000A
    10 Hour Capacity
    200Ah
    5 Hour Capacity
    160Ah
    20 Hour Capacity
    204Ah
    Battery usage
    Bulk Storage
    1 Hour Capacity
    126Ah
    Connection Type
    M8 Bolt/Nut
    Amp Hour Rating
    200Ah
    Type of battery
    SLA Block

    Product Availability


    Availability
    Special Order

    Packaged Dimensions


    Packaged Length
    53cm
    Packaged Width
    24cm
    Packaged Weight
    58kg
    Packaged Volume
    31.8l
    Packaged Height
    25cm
    Warranty: 24 Months
