CAT. No. SB2214

12.8V 50Ah Lithium Deep Cycle Battery
product image thumb
product image thumb

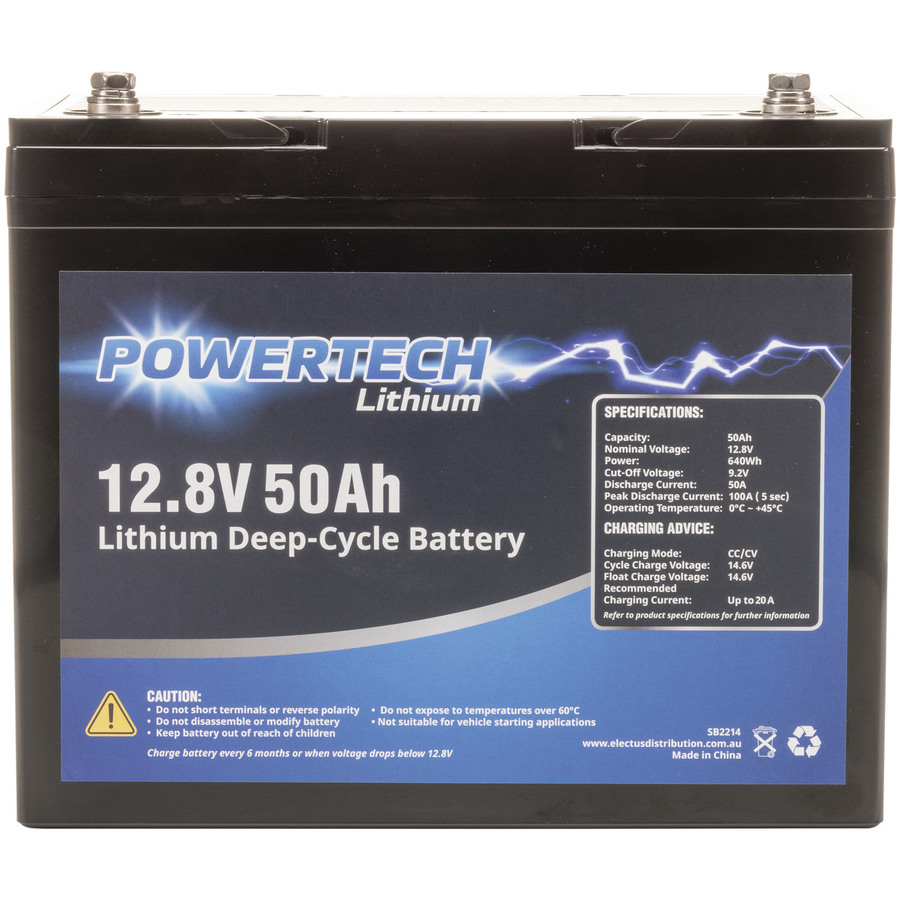

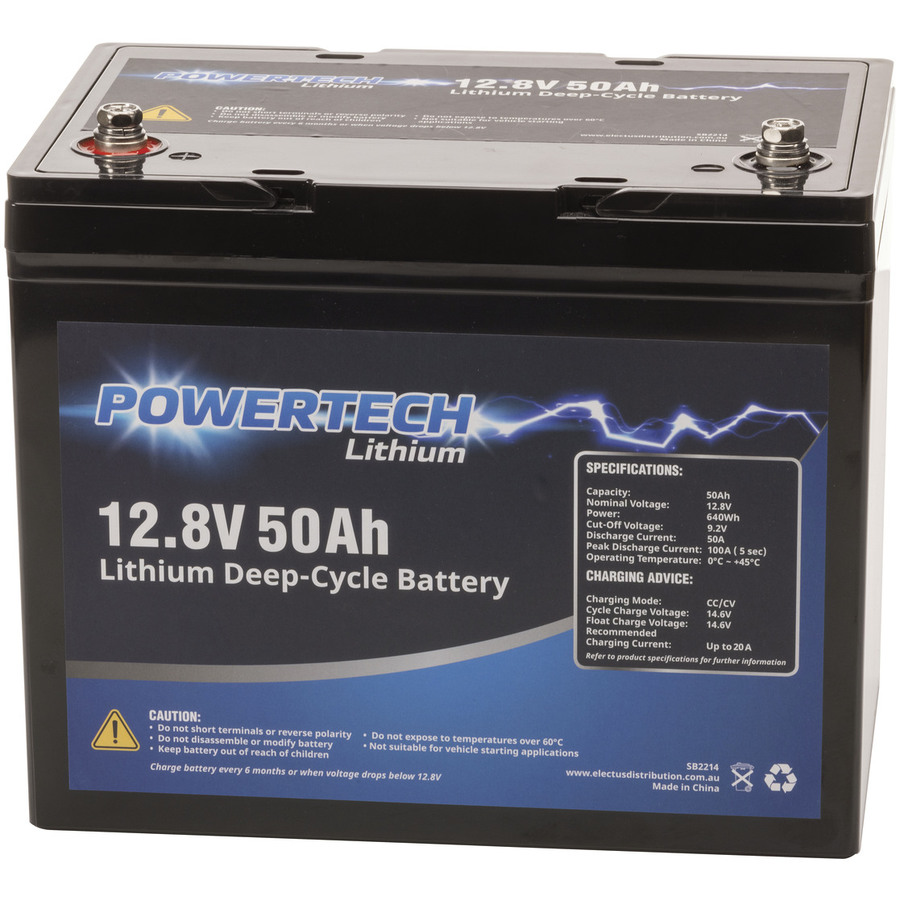

12.8V 50Ah Lithium Deep Cycle Battery

$549
These LiFePO4 batteries are similar in physical size but weigh less than half of their Lead Acid counterparts.

Out of Stock

Description

Airfreight Not Available

The next generation of power storage is here! These LiFePO4 batteries weigh less than half of their Lead Acid counterparts. They may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of LiFePO4 polymer pouch cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 50Ah model can provide continuous current up to 50A. Absolutely perfect for high capacity portable power, and replacement of similar capacity lead acid / AGM battery.

Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- Excellent life span

Specifications:
Capacity: 50Ah
Service Life: 10yrs+
Cycle Life: 1500+ cycles (> 80% capacity retention)
Nominal Voltage: 12.8V
Cut-Off Voltage: 10V approx.
Charge Type: Constant Current / Constant Voltage
Discharge Current: 50A
Max Continuous Current: ≤150A (≤5 sec)
Internal Cells: LiFePO4 Polymer Pouch
Maximum Internal Resistance:  85MΩ
Output Terminals: M5 Bolt Down
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%


    Specifications

    Classified as dangerous goods


    DG Class
    9
    DG UN Number
    3480
    DG Pack Group
    II - Medium Danger
    DG Ship Name
    3480 - Lithium Ion Batteries
    DG Hazardous Chemical Code
    4W
    Battery Watt Hour Rating (Required for Lithium Batteries)
    640Wh

    Battery Packs and Batteries


    Battery Chemical Composition
    Lithium Ferrous Phosphate (LiFePO4)

    Product Availability


    Availability
    Stocked item

    Product Dimensions


    Length
    256mm
    Height
    210mm
    Width
    168mm

    Packaged Dimensions


    Packaged Length
    32.1cm
    Packaged Width
    22.5cm
    Packaged Weight
    7.136kg
    Packaged Volume
    20.29523l
    Packaged Height
    28.1cm
    Warranty: 36 Months
