12V 4.5Ah SLA Battery
12V 4.5Ah SLA Battery
12V 4.5Ah SLA Battery

CAT. No. SB2484

12V 4.5Ah SLA Battery
product image thumb
product image thumb

12V 4.5Ah SLA Battery

$28.95

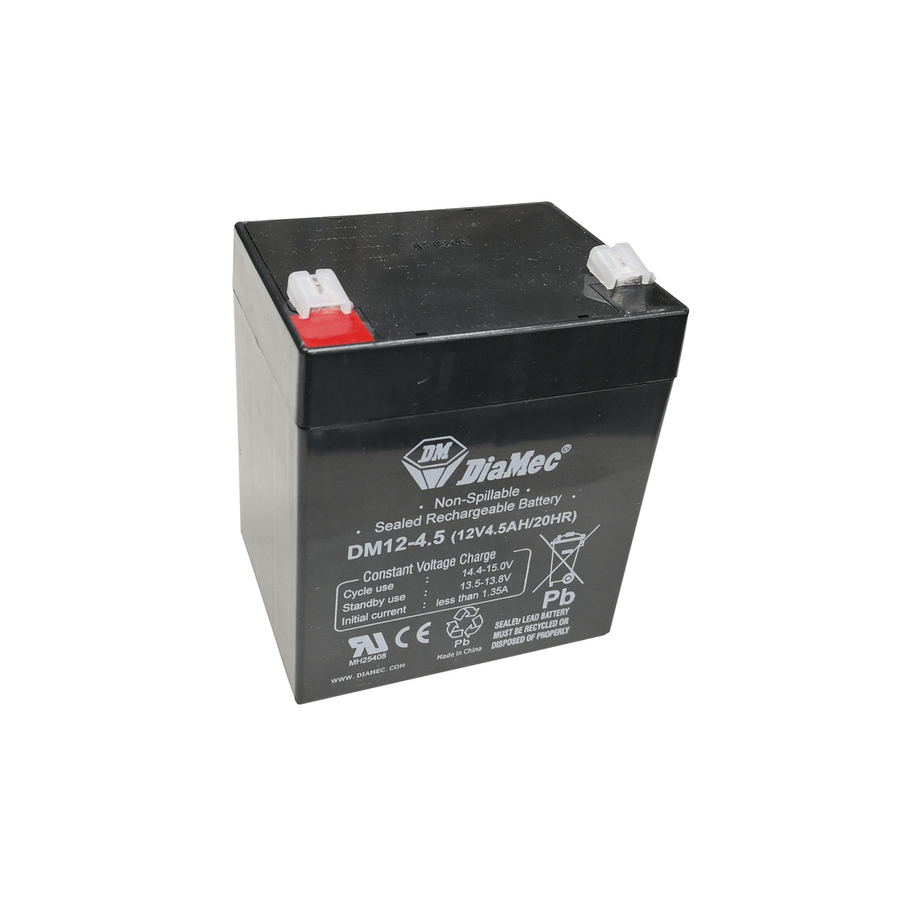

Compact 12V sealed lead acid battery has a 4.5Ah capacity and is fitted with 4.8mm spade terminal connections
Available

Description

1 Year Warranty

Features:

- Charge current 420mA for 10- 14 hours
- Discharge current 20 hr rate 225mA
- Int Resistance:
- Max Discharge Current (5 sec):40A

Cycle:
- Voltage 14.40V~15.00V @ 20°C (68°F)
- Temp Coefficient:
- 30mV/°CStandby:
- Voltage 13.5V~13.80V @ 20°C (68°F)
- Temp Coefficient: - 20mV/°C




For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 12hr
    Recharging Voltage
    		 14.4V-15V
    Standard Recharge Current
    		 400mA

    DC Voltage Rating

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 90mm
    Height
    		 106mm
    Depth
    		 70mm

    Packaged Dimensions

    Packaged Length
    		 11.5cm
    Packaged Width
    		 9.8cm
    Packaged Weight
    		 1.402kg
    Packaged Volume
    		 0.89033l
    Packaged Height
    		 7.9cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 67.5A
    10 Hour Capacity
    		 4.05Ah
    5 Hour Capacity
    		 3.6Ah
    20 Hour Capacity
    		 4.5Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 2.7Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 4.5Ah
    Type of battery
    		 SLA Block
    Internal Resistance
    		 35m?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
