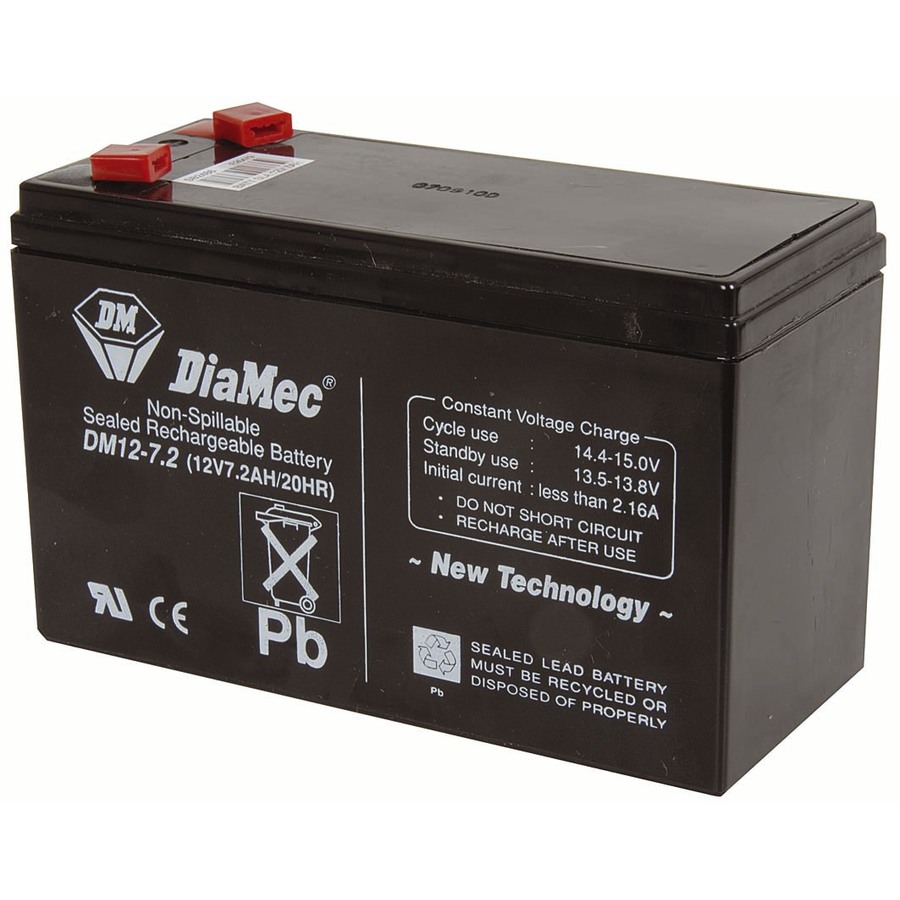

12V 7.2Ah SLA Back-up Battery - NBNALARMUFB
12V 7.2Ah SLA Back-up Battery - NBNALARMUFB
12V 7.2Ah SLA Back-up Battery - NBNALARMUFB

CAT. No. SB2486

12V 7.2Ah SLA Back-up Battery - NBNALARMUFB
product image thumb
product image thumb

12V 7.2Ah SLA Back-up Battery - NBNALARMUFB

$42.95
Ideal as a replacement battery for NBN systems, UPS and alarm systems - fitted with 4.8mm spade connections
Available

Description

1 Year Warranty

These versatile Sealed Lead Acid batteries have a huge range of uses and are often found in alarm systems, NBN installations, and other critical systems such as Uninterruptable Power Supplies.

Specifications:

Charge current: 720mA for 10-14 hours
Discharge current: 20 hr rate 360mA (7.2Ah)
Max Discharge Current (5 sec): 108A
Weight: 2.2kg
Charge Cycle: 14.40V~15.00V @ 25 deg C (77deg F)




For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 12hr
    Recharging Voltage
    		 14.4V-15V
    Standard Recharge Current
    		 720mA

    DC Voltage Rating

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 151mm
    Height
    		 95mm
    Depth
    		 65mm
    Weight
    		 2.2kg

    Packaged Dimensions

    Packaged Length
    		 15.8cm
    Packaged Width
    		 7.3cm
    Packaged Weight
    		 2.182kg
    Packaged Volume
    		 1.291808l
    Packaged Height
    		 11.2cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 108A
    10 Hour Capacity
    		 6.48Ah
    5 Hour Capacity
    		 5.76Ah
    20 Hour Capacity
    		 7.2Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 4.32Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 7.2Ah
    Type of battery
    		 SLA Block
    Internal Resistance
    		 25?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

      Articles
      Articles

    SB2486-dataSheetMain.pdf
    SB2486-msdsMain.pdf
