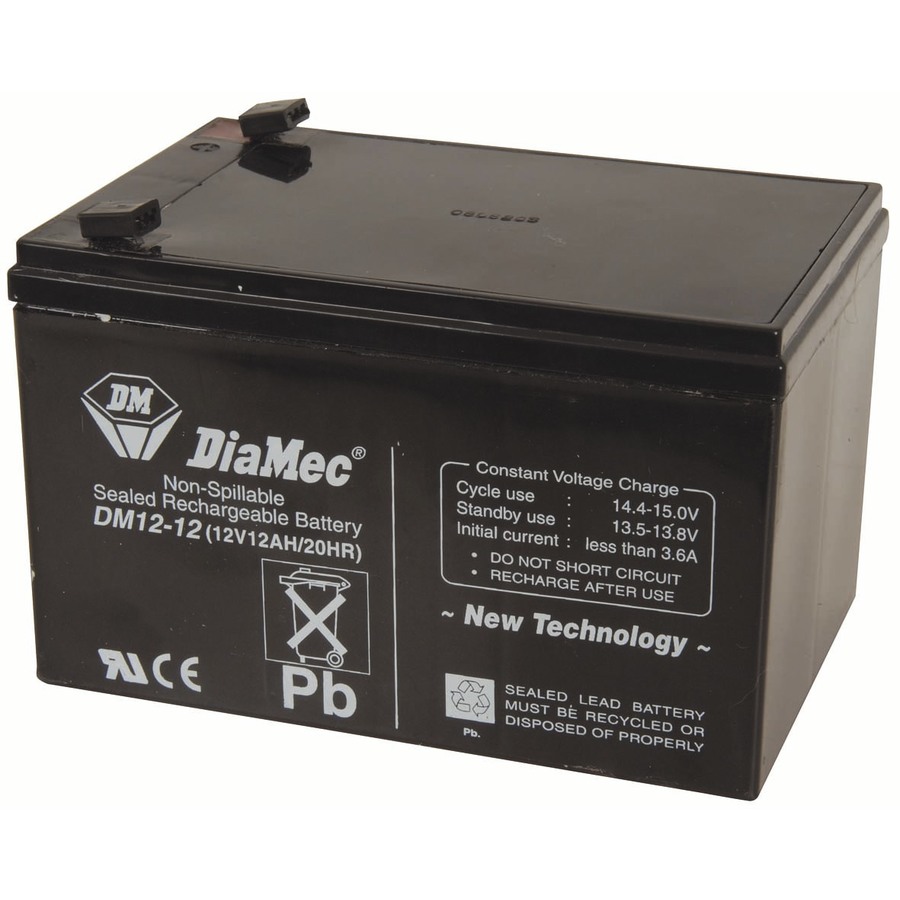

12V 12Ah SLA Battery
12V 12Ah SLA Battery

CAT. No. SB2489

12V 12Ah SLA Battery
product image thumb

12V 12Ah SLA Battery

$54.95
Compact 12V sealed lead acid battery has a 12Ah capacity and is fitted with 4.8mm spade terminal connections
Available

Description

1 Year Warranty

Features:

Discharge current max: 180A for 5 sec
Initial charge current: 3.6A
Cycle voltage: 14.4 - 15V
Standby voltage: 13.5 - 13.9V




For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 12hr
    Recharging Voltage
    		 14.4V-15V
    Standard Recharge Current
    		 1.2A

    DC Voltage Rating

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 150mm
    Height
    		 93mm
    Width
    		 100mm

    Packaged Dimensions

    Packaged Length
    		 16cm
    Packaged Width
    		 11cm
    Packaged Weight
    		 3.176kg
    Packaged Volume
    		 2.0064l
    Packaged Height
    		 11.4cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 180A
    10 Hour Capacity
    		 10.8Ah
    5 Hour Capacity
    		 9.6Ah
    20 Hour Capacity
    		 12Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 7.2Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 12Ah
    Type of battery
    		 SLA Block

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

      Articles
      Articles

    SB2489-dataSheetMain.pdf
    SB2489-msdsMain.pdf
