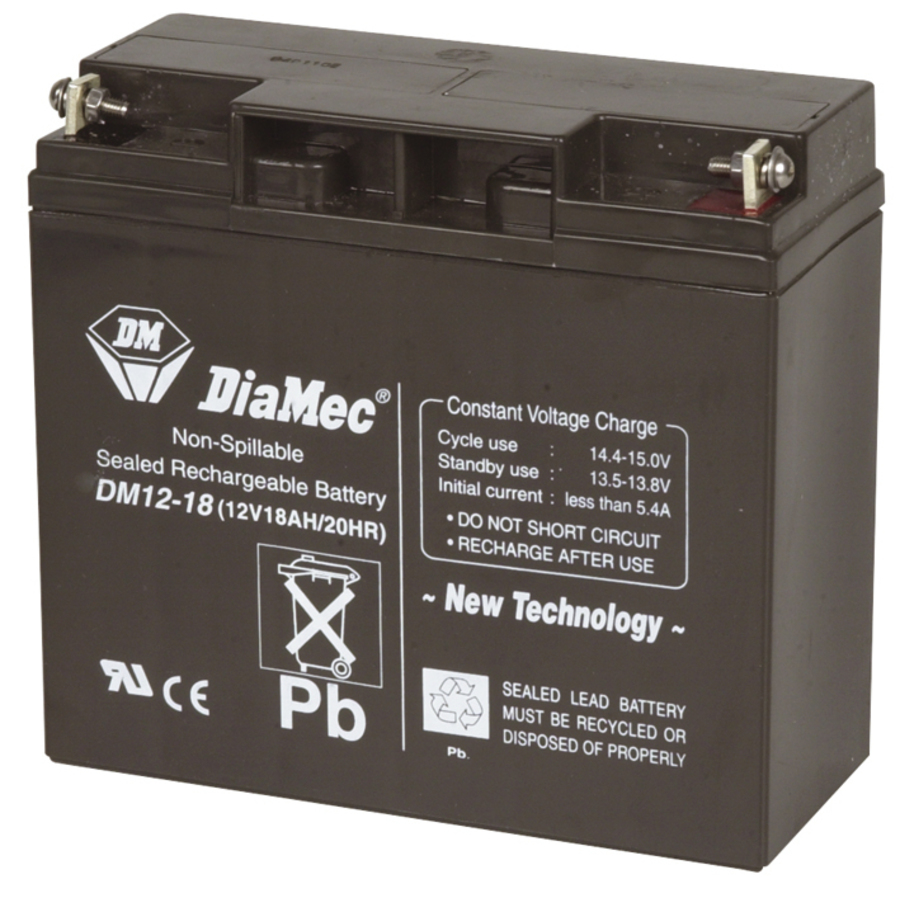

12V 18Ah SLA Battery
12V 18Ah SLA Battery
12V 18Ah SLA Battery

CAT. No. SB2490

12V 18Ah SLA Battery
product image thumb
product image thumb

12V 18Ah SLA Battery

$109
Commonly fitted in older Jumpstarter packs and also used for starting batteries for some ride on mowers and jetskis.
Available

Description

1 Year Warranty

Features:

Charge current 1.8A for 10- 14 hours

- Max Discharge Current (5 sec):100A

- Constant Voltage Charge: Initial charging current < 6.4ACycle:

- Voltage 14.40V~15.00V @ 20°C (68°F)

- Temp Coefficient: - 30mV/°CStandby:

- Voltage 13.5V~13.80V @ 20°C (68°F)

- Temp Coefficient: - 20mV/°C- Nuts & Bolts Supplied



For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 10hr
    Recharging Voltage
    		 14.4V-15V
    Standard Recharge Current
    		 2A

    DC Voltage Rating

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 181mm
    Height
    		 167mm
    Depth
    		 77mm

    Packaged Dimensions

    Packaged Length
    		 19cm
    Packaged Width
    		 8.8cm
    Packaged Weight
    		 5.038kg
    Packaged Volume
    		 3.14336l
    Packaged Height
    		 18.8cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 270A
    10 Hour Capacity
    		 17.2Ah
    5 Hour Capacity
    		 15.2Ah
    20 Hour Capacity
    		 18Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 10.8Ah
    Connection Type
    		 M5 Bolt/Nut
    Amp Hour Rating
    		 18Ah
    Type of battery
    		 SLA Block
    Internal Resistance
    		 15?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
