SPST Ultra Mini Rocker Switch
SPST Ultra Mini Rocker Switch
SPST Ultra Mini Rocker Switch

CAT. No. SK0975

SPST Ultra Mini Rocker Switch
product image thumb
product image thumb

SPST Ultra Mini Rocker Switch

$3.1

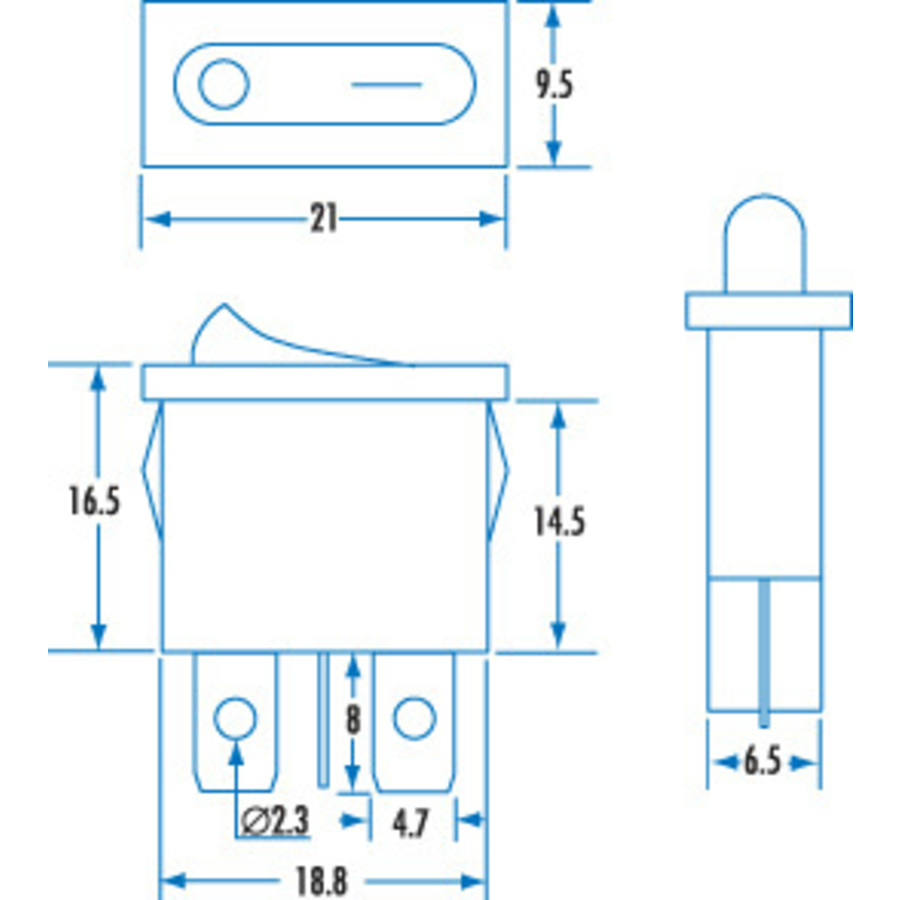

Snap in fitting. SPST 250VAC 6A.Cutout size 6.5(W) x 19(H)mm. Black body, black actuator...
Available

Description

Snap in fitting. SPST 250VAC 6A. Black body, black actuator.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Switch Connection
    		 Screw Terminal
    Switch Type
    		 Rocker
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic

    Product Mounting

    Attachment / Securing Method
    		 Snap-in
    Overall Screw Spacing (H)
    		 19mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 6A

    Product Dimensions

    Height
    		 19mm
    Width
    		 6.5mm

    Packaged Dimensions

    Packaged Length
    		 2.6cm
    Packaged Width
    		 1.9cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.003952l
    Packaged Height
    		 0.8cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SK0975-dataSheetMain.pdf
