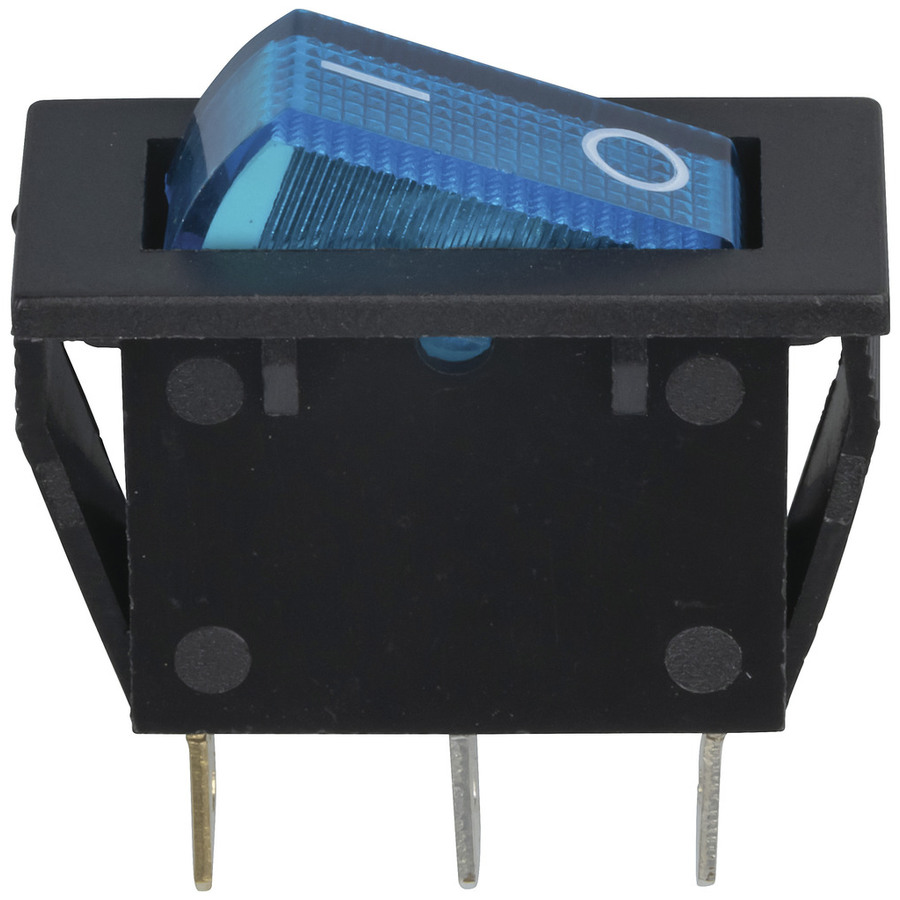

Rocker Switch Illuminated Blue SPST 15A 240VAC
Rocker Switch Illuminated Blue SPST 15A 240VAC

CAT. No. SK0976

Rocker Switch Illuminated Blue SPST 15A 240VAC
product image thumb

Rocker Switch Illuminated Blue SPST 15A 240VAC

$4.49
SPST 240V 15A rocker switches. Spade lug connectors with QC fittings. Black body with illuminated actuator. Cut out: 33.8 x 13.8mm Three types availab...
Available

Description

240V Mains Power

SPST 240V 15A rocker switches. Spade lug connectors with QC fittings. Black body with illuminated actuator.
Three types available:
> Blue: SK-0976
> Red: SK-0978
> Green: SK-0979

    Specifications

    Electromechanical Switch

    Dielectric Strength
    		 1000V
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Switch Colour Coded
    		 Blue
    Mechanism Material
    		 Plastic
    Cycle Life
    		 10000 cycles
    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPST
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Contact Resistance
    		 50m?
    Insulation Resistance
    		 100M?

    Product Mounting

    Square Mount Hole Width
    		 13.5mm
    Attachment / Securing Method
    		 Snap-in
    Mounting Method
    		 Panel, Front of Panel
    Square Mount Hole Height
    		 29mm

    AC Voltage Rating

    AC Voltage rating
    		 240V

    AC Current Rating

    AC current rating
    		 15A

    In-built Illumination

    Type
    		 Neon
    Illumination Colour
    		 Blue
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 250V

    Product Dimensions

    Length
    		 33.8mm
    Height
    		 19.9mm
    Width
    		 13.8mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.020475l
    Packaged Height
    		 3.9cm
