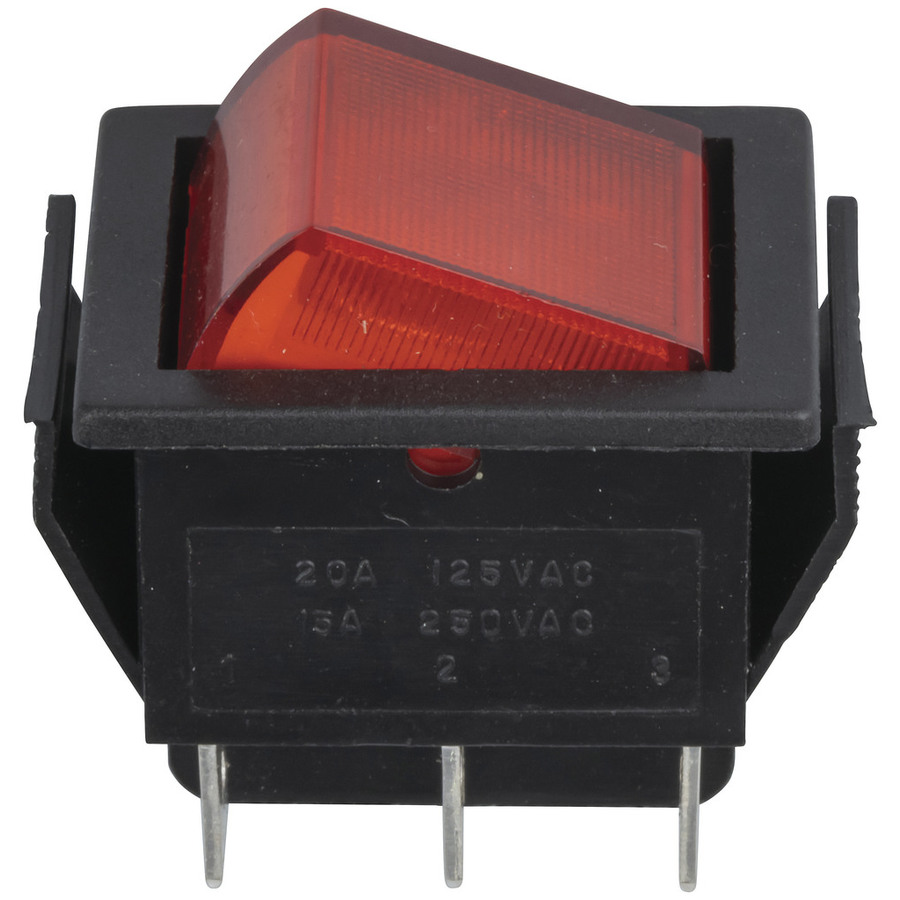

DPDT Illuminated Rocker - Large Red
DPDT Illuminated Rocker - Large Red
DPDT Illuminated Rocker - Large Red

CAT. No. SK0982

DPDT Illuminated Rocker - Large Red
product image thumb
product image thumb

DPDT Illuminated Rocker - Large Red

$7.95
Mains Illuminated. DPDT 240V 15 amp. Black body,available in red or green illumination. Spade lug connections.2 colours available. Cutout 27 x 22mm...

Out of Stock

Description

Mains Illuminated. DPDT. Black body,available in red or green illumination. Spade lug connections. 2 colours available.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Switch Colour Coded
    		 Red
    Mechanism Material
    		 Plastic

    Product Mounting

    Attachment / Securing Method
    		 Snap-in
    Mounting Method
    		 Panel, Front of Panel

    AC Voltage Rating

    AC Voltage rating
    		 240V

    AC Current Rating

    AC current rating
    		 15A

    In-built Illumination

    Type
    		 Neon
    Illumination Colour
    		 Red

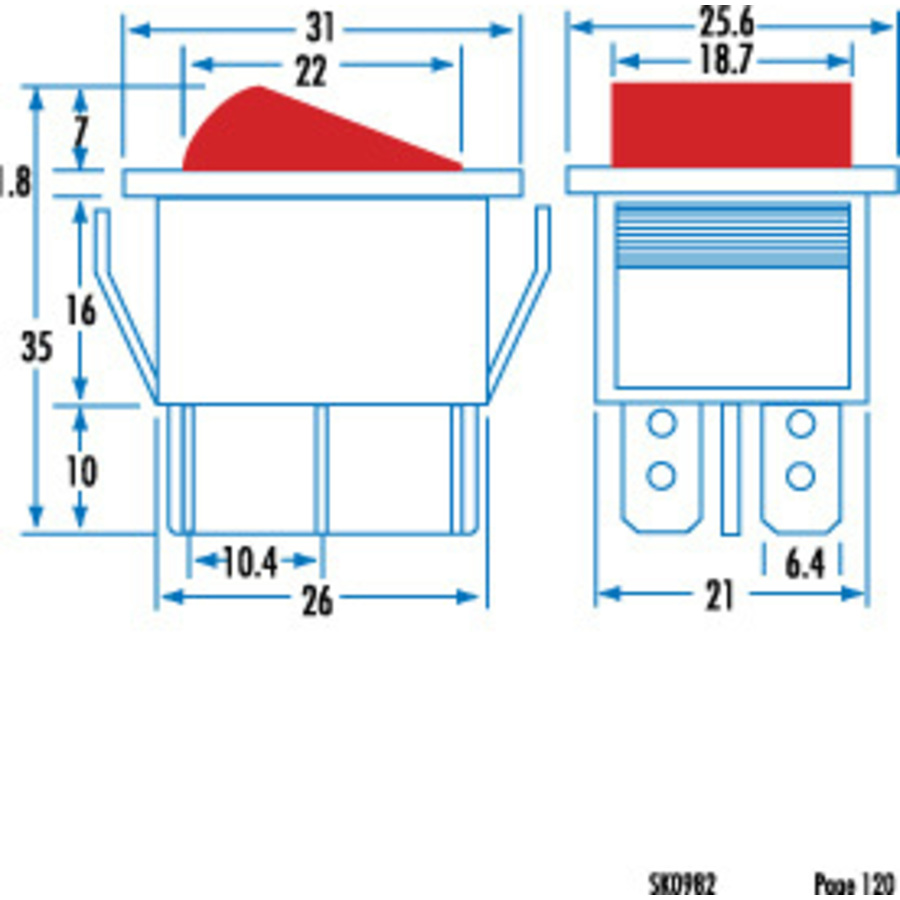

    Product Dimensions

    Length
    		 31mm
    Height
    		 35mm
    Width
    		 25.6mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.012kg
    Packaged Volume
    		 0.0315l
    Packaged Height
    		 3.6cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SK0982-dataSheetMain.pdf
