CAT. No. SK0987

SPDT Centre Off Spring Return Both Sides
product image thumb
product image thumb

SPDT Centre Off Spring Return Both Sides

$5.85
Momentary contacts with spring return to centre on both sides.
Available

Description

Momentary contacts with spring return to centre on both sides. Can be used for car power antennas and power windows.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Double Action Momentary
    Pole Throw Type
    		 SPDT
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Switch Colour Coded
    		 Black
    Centre Off
    Mechanism Material
    		 Plastic

    Product Mounting

    Mounting Method
    		 Panel, Front of Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 6A

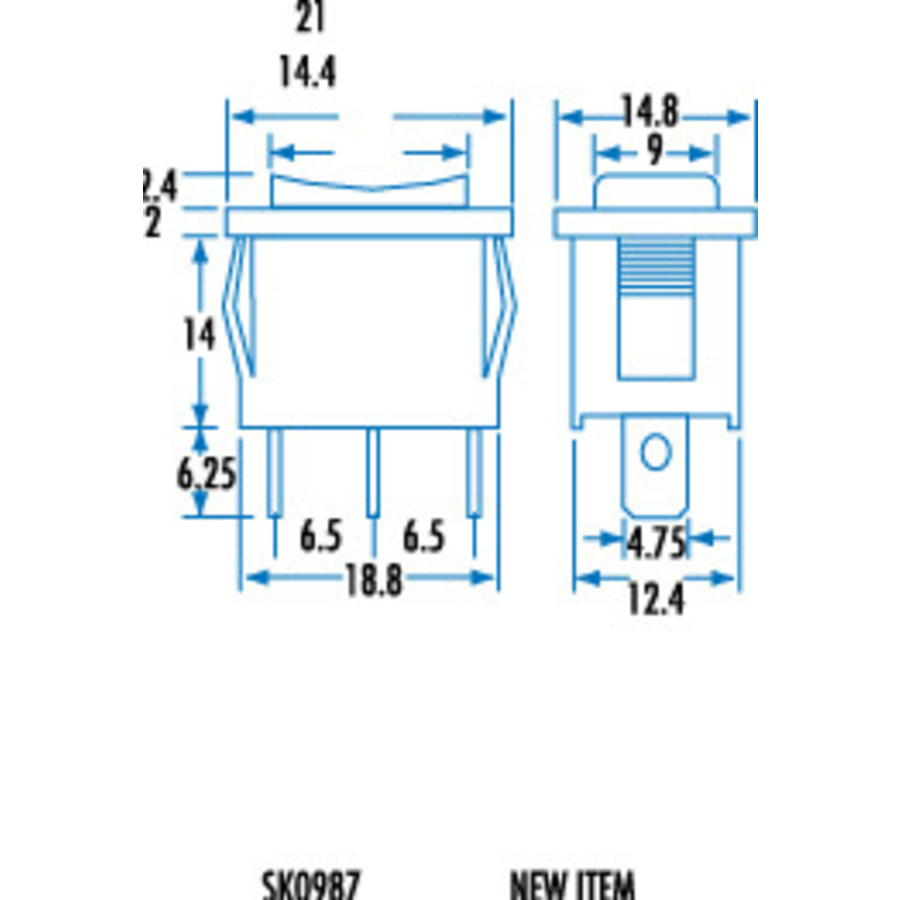

    Product Dimensions

    Length
    		 21mm
    Width
    		 14.8mm

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.04kg
    Packaged Volume
    		 0.0065l
    Packaged Height
    		 1.3cm

    Product Availability

    Availability
    		 Stocked item
