DPST Neon Illuminated - Mini
DPST Neon Illuminated - Mini

CAT. No. SK0995

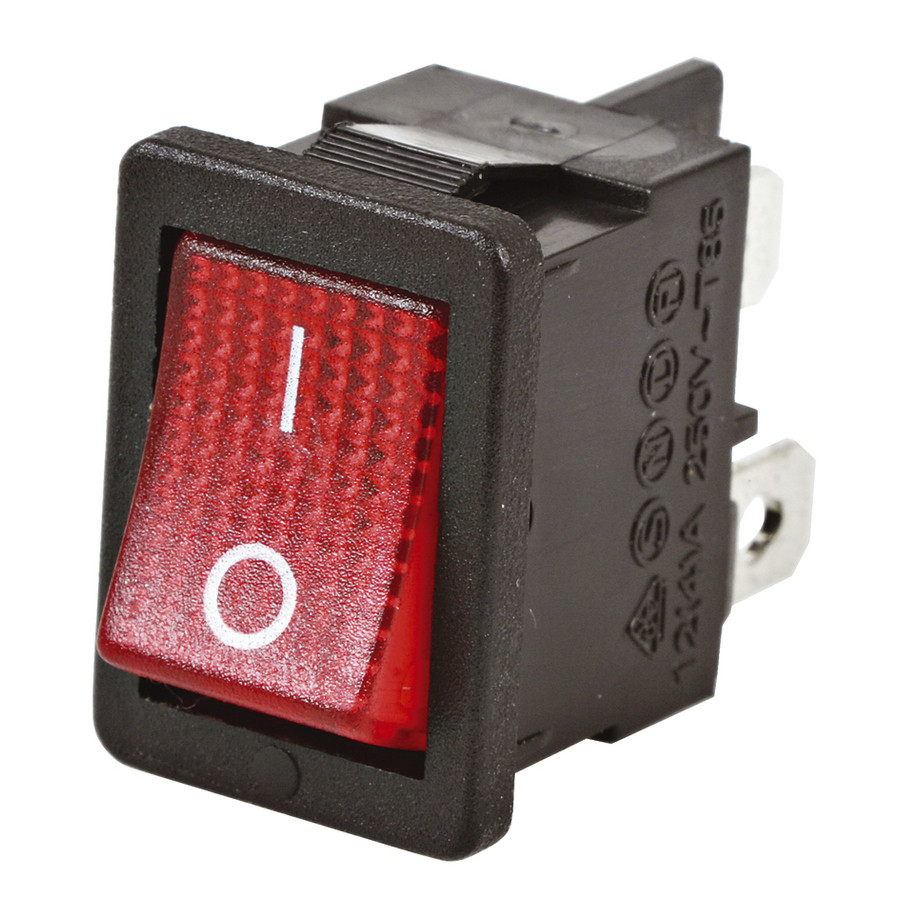

DPST Neon Illuminated - Mini
product image thumb

DPST Neon Illuminated - Mini

$5.85
* DPST 240V 10A* Red illuminated actuator with on/off indicator* Solder terminals...
Available

Description

Red neon DPST switch as used in our powerboards.

    Specifications

    Electromechanical Switch

    Dielectric Strength
    		 1000V
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Rocker
    Switch Colour Coded
    		 Red
    Mechanism Material
    		 Plastic
    Cycle Life
    		 10000 cycles
    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 DPST
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 1pos
    Contact Resistance
    		 20m?
    Insulation Resistance
    		 100M?

    Product Mounting

    Square Mount Hole Width
    		 12mm
    Attachment / Securing Method
    		 Snap-in
    Mounting Method
    		 Panel, Front of Panel
    Square Mount Hole Height
    		 20mm

    AC Voltage Rating

    AC Voltage rating
    		 240V

    AC Current Rating

    AC current rating
    		 10A

    In-built Illumination

    Type
    		 Neon
    Illumination Colour
    		 Red
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 250V

    Product Dimensions

    Length
    		 21mm
    Height
    		 27mm
    Width
    		 15mm

    Packaged Dimensions

    Packaged Length
    		 2.7cm
    Packaged Width
    		 1.9cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.008208l
    Packaged Height
    		 1.6cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SK0995-dataSheetMain.pdf
