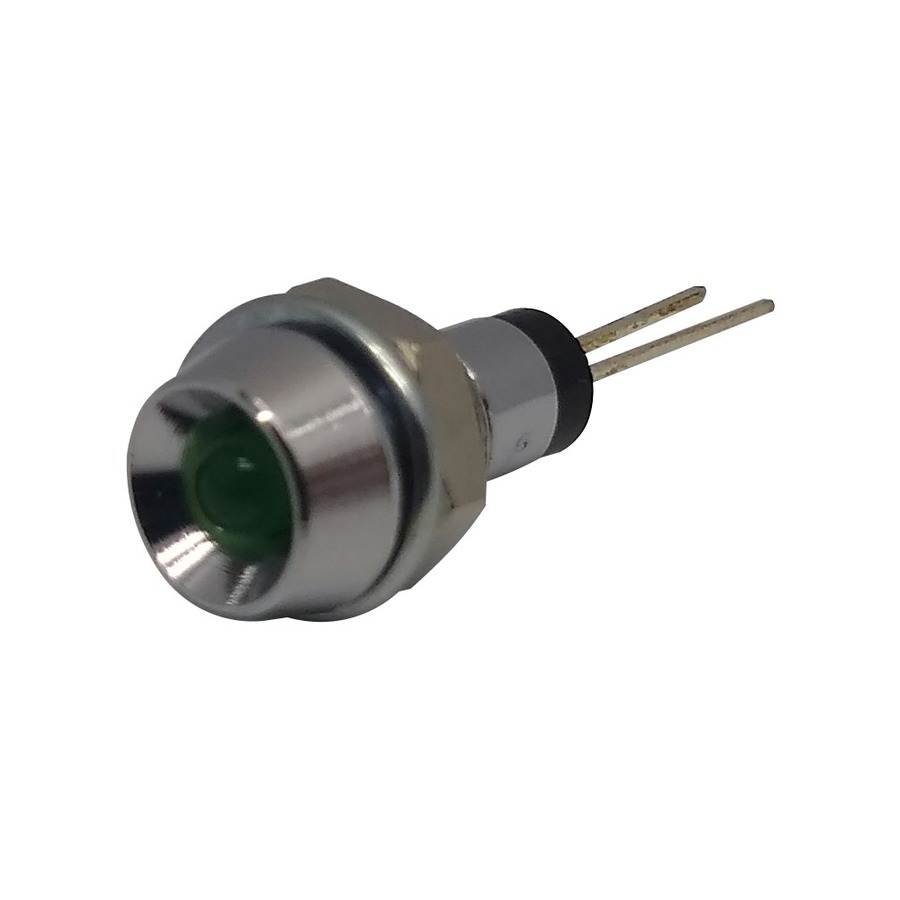

Chrome Bezel with 3mm Green LED
Chrome Bezel with 3mm Green LED

CAT. No. SL2616

Chrome Bezel with 3mm Green LED
product image thumb

Chrome Bezel with 3mm Green LED

$3.5
Chrome Bezel with 3mm Green light emitting diode.
Available

Description

LED

Very classy low voltage panel mount LED with chrome bezel.

Features:
- Chrome Housing
- 5.8mm Panel hole


    Specifications

    Product Dimensions

    Diameter
    		 9mm
    Depth
    		 14mm

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.00126kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 Diffused
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    I<sub>f (typ)</sub> - Typical Forward Current
    		 15mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    P<sub>(max)</sub> - Maximum Operating Power
    		 0.06W

    Active Component

    Active mount type
    		 Panel
    Active case colour
    		 Chrome
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
