4 Way DIL - 8 Pin DIL PACKAGE
4 Way DIL - 8 Pin DIL PACKAGE
4 Way DIL - 8 Pin DIL PACKAGE

CAT. No. SM1020

4 Way DIL - 8 Pin DIL PACKAGE
product image thumb
product image thumb

4 Way DIL - 8 Pin DIL PACKAGE

$2.95
Features:- End stackable- Moulded 0.3 IC packing outline for automatic insertion- Smaller sized- Twin contact design- Gold plated contact and tin pla...
Available

Description

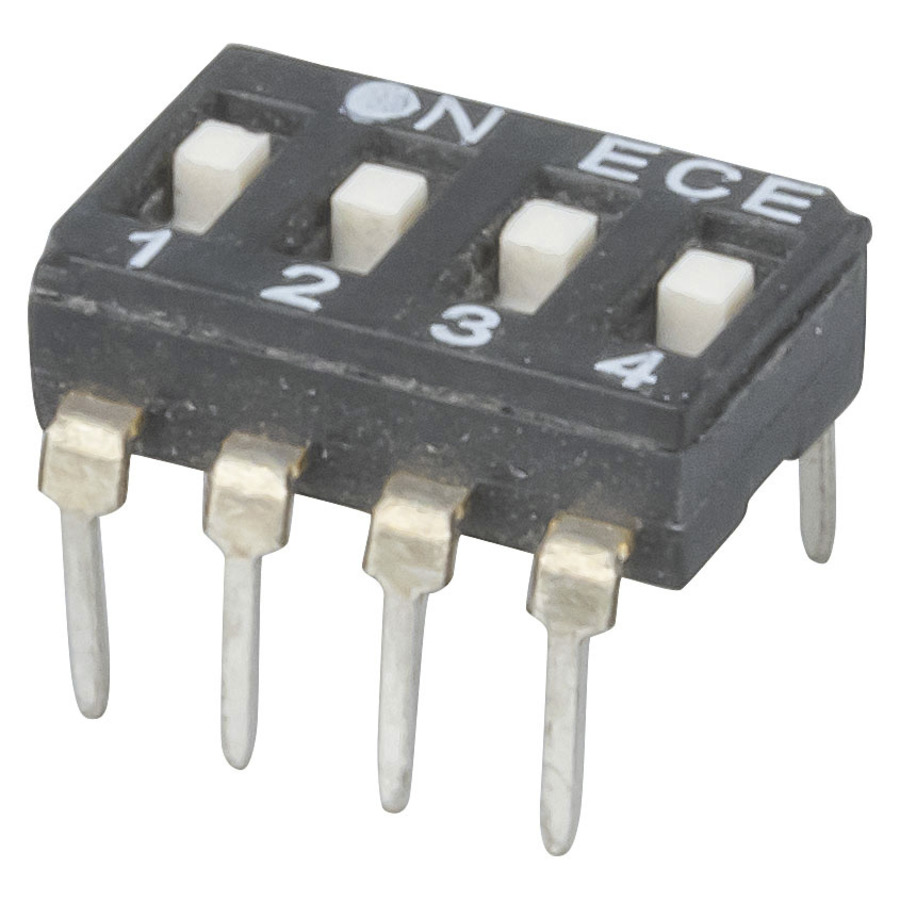

Lower profile 4way DIL switch

Features:
- Moulded 0.3 IC packing outline for automatic insertion
- Smaller sized
- Twin contact design
- Gold plated contact and tin plated terminals.


    Specifications

    Electromechanical Switch

    Pole Throw Type
    		 SPST
    Dielectric Strength
    		 500V
    Switch Connection
    		 PCB Pins
    Switch Type
    		 DIL
    Poles / Contacts
    		 8 pole
    Throws / Positions
    		 2pos
    Switch Colour Coded
    		 Black
    Contact Resistance
    		 50m?
    Stackable Switch

    Product Mounting

    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 24V

    DC Current Rating

    DC current rating
    		 25mA

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.7cm

    Product Availability

    Availability
    		 Stocked item

N/A
