SPDT 125V 3A Sub-Miniature Micro Switch with Lever
SPDT 125V 3A Sub-Miniature Micro Switch with Lever

CAT. No. SM1036

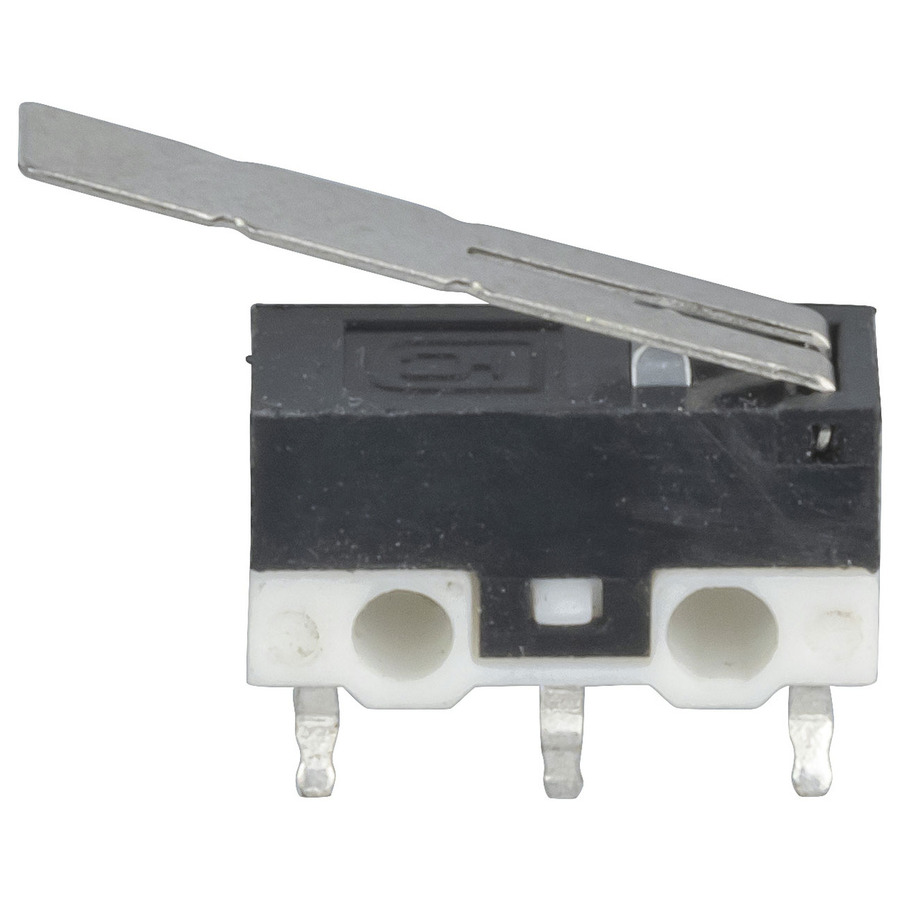

SPDT 125V 3A Sub-Miniature Micro Switch with Lever
product image thumb

SPDT 125V 3A Sub-Miniature Micro Switch with Lever

$5.25
Sub-miniature size 125V 3A micro switch with lever - Solder tag connection - Lever arm for easy triggering from actuating mechanism
Available

Description

SPDT ON-ON. Actuator length 14mm.

Power Raitings:
3A @ 125VAC
1.5A @ 250VAC


    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPDT
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Micro
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 2pos
    Switch Colour Coded
    		 Black
    Actuator Width
    		 17.5mm
    Actuator Length
    		 5.7mm

    DC Voltage Rating

    DC Voltage
    		 125V

    DC Current Rating

    DC current rating
    		 3A

    Packaged Dimensions

    Packaged Length
    		 1.5cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.6cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SM1036-dataSheetMain.pdf
