CAT. No. SP0611

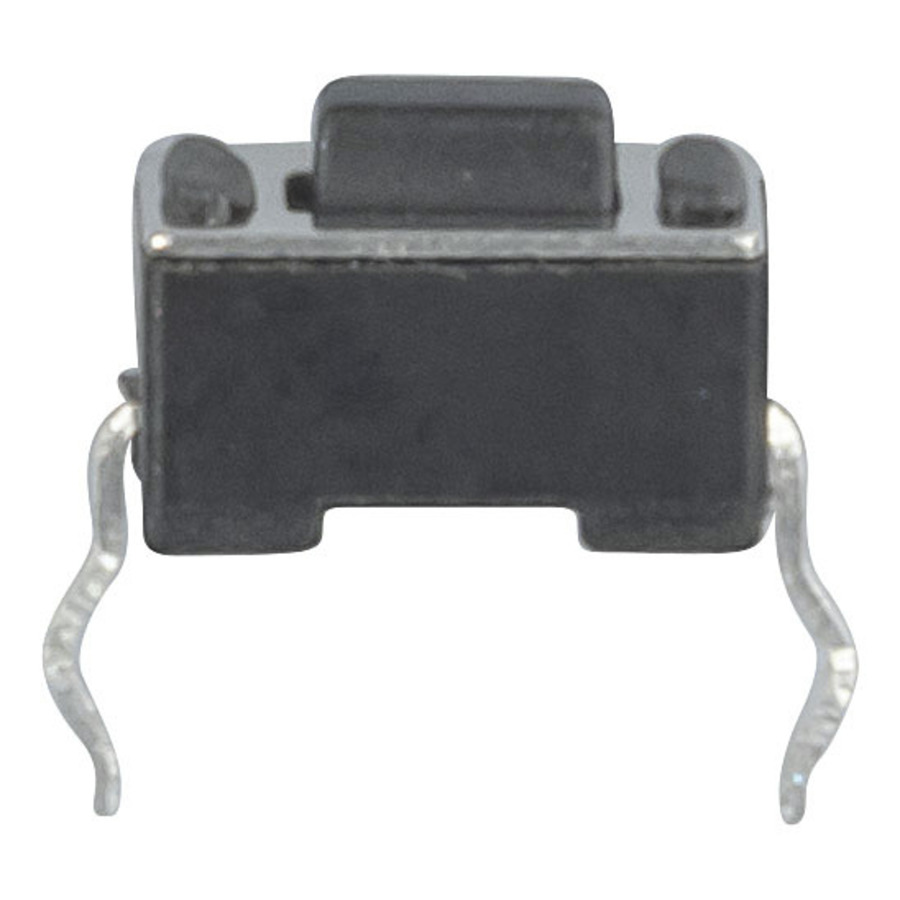

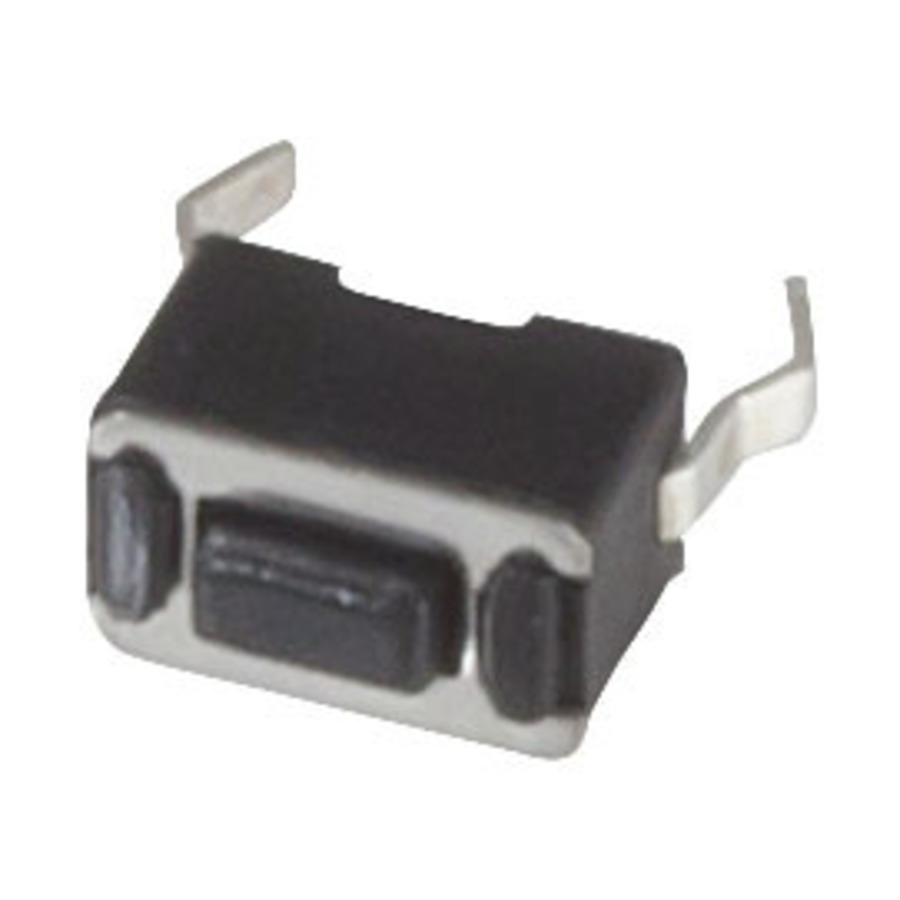

SPST PCB Tactile Switch
product image thumb
product image thumb

SPST PCB Tactile Switch

$1.2
Normally open SPST momentary micro tactile switch.  12v DC, 50mAH.  H: 3.5mm, W: 3.5mm, L: 6mm.
Available

Description

Normally open SPST momentary micro tactile switch.
Operating Temperature: -16 to 60 deg C


    Specifications

    Electromechanical Switch

    Dielectric Strength
    		 250V
    Switch Connection
    		 PCB Pins
    Switch Type
    		 Tactile Pushbutton
    Actuator Width
    		 1.5mm
    Actuator Length
    		 2.9mm
    Mechanism Material
    		 Plastic
    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Contact Resistance
    		 100m?
    Insulation Resistance
    		 100M?

    Product Mounting

    Pin Spacing Width
    		 6mm
    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 50mA

    Product Dimensions

    Length
    		 6mm
    Height
    		 3.5mm
    Width
    		 3.5mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.2cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.5cm

    Product Availability

    Availability
    		 Stocked item
