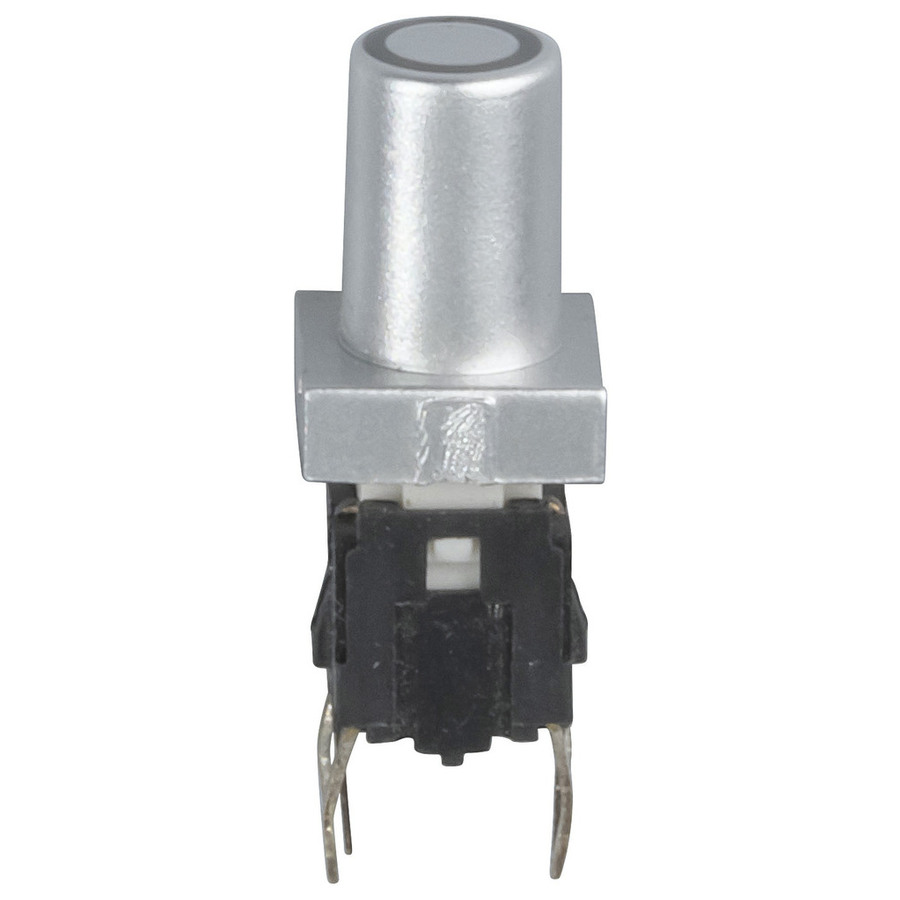

SPST PCB Mount Tactile - Vertical & Horizontal with LED - Vertical Green
SPST PCB Mount Tactile - Vertical & Horizontal with LED - Vertical Green

CAT. No. SP0613

SPST PCB Mount Tactile - Vertical & Horizontal with LED - Vertical Green
product image thumb

SPST PCB Mount Tactile - Vertical & Horizontal with LED - Vertical Green

$4.45
Rating: 12VDC 50mAOperating Temperature: -50 ~ 70 degrees CContact Resistance: 100mOhm Max.Insulation Resistance: 100MOhm min at 100VDCWithstand Volta...

Out of Stock

Description

LED SPST PCB tactile switch
LED Power Supply: 3.5-4V DC @ 25mA

Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617

    Specifications

    Electromechanical Switch

    Switch Function
    		 Momentary / Lock Dual Function
    Dielectric Strength
    		 100V
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Tactile Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Green
    Contact Resistance
    		 100m?
    Insulation Resistance
    		 100M?
    Mechanism Material
    		 Plastic

    Product Mounting

    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 50mA

    AC Voltage Rating

    AC Voltage rating
    		 250V

    Packaged Dimensions

    Packaged Length
    		 0.9cm
    Packaged Width
    		 0.9cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00186l
    Packaged Height
    		 2.3cm

    Product Availability

    Availability
    		 Stocked item
