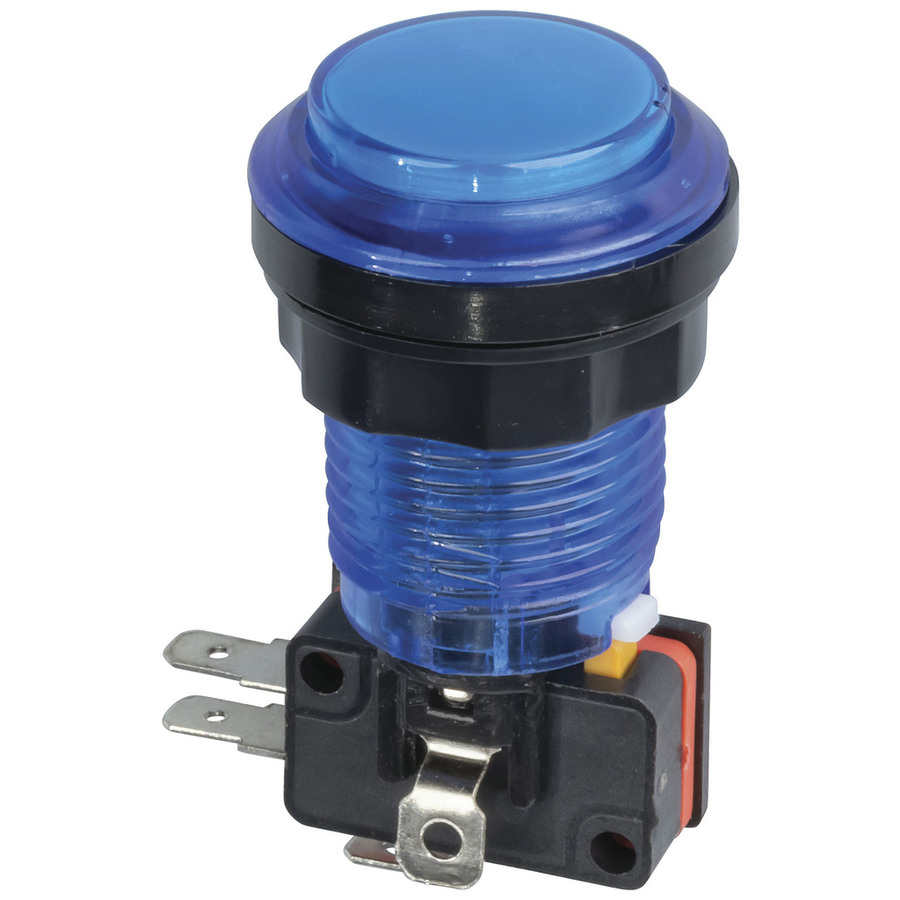

Blue Arcade Button Switch with LED Illumination

$14.5
Arcade machine style pushbutton switch - Microswitch mechanism and LED illumination - Available in five colours
Available

Description

Raspberry Pi Compatible
Arduino? Compatible


Brightly coloured illuminated pushbutton switches ideal for creating a custom arcade machine, or even use as a large illuminated pushbutton for a control panel. Suits 25mm mounting hole.

 • Microswitch for reliable operation
 • All connections are 6.3mm spade
 • Includes LED illumination

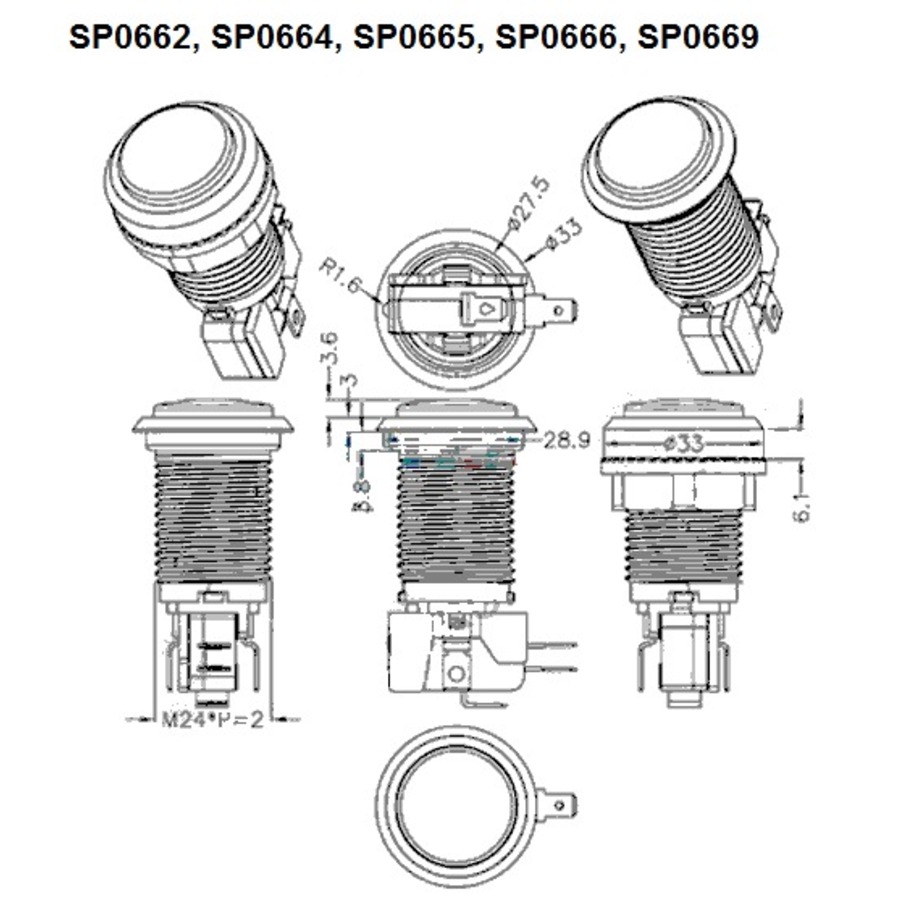

Different colours are available:-

 Red: SP0662
 Yellow: SP0664
 Green: SP0665
 Blue: SP0666
 White: SP0669

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPDT
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Pushbutton
    Switch Colour Coded
    		 Blue

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Mounting Method
    		 Through Hole

    AC Voltage Rating

    AC Frequency
    		 50Hz
    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 5A

    In-built Illumination

    Type
    		 5mm Standard LED
    Illumination Colour
    		 Blue
    Illumination Position
    		 Top
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 12V
    Indicates Connector is Live
    Indicates Polarity

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 7cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.026kg
    Packaged Volume
    		 0.1225l
    Packaged Height
    		 3.5cm
